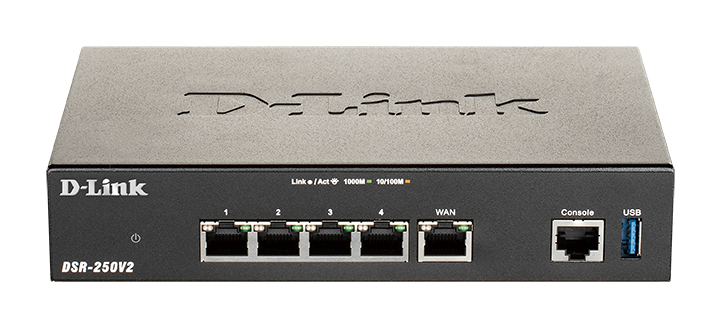

Unified Services VPN Router
Model DSR-250V2/BEAN 790069472343
43 specifications
- ColourBlack
- Ethernet WANYes
- Networking standardsIEEE 802.1Q
- Ethernet LAN (RJ-45) ports4
- Security algorithms3DES, AES, DES
- Mean time between failures (MTBF)1239157.85 h
Overview
- Colour
- Black
- Ethernet WAN
- Yes
- Networking standards
- IEEE 802.1Q
- Ethernet LAN (RJ-45) ports
- 4
- Security algorithms
- 3DES, AES, DES
- Mean time between failures (MTBF)
- 1239157.85 h
- Brand
- D-Link
- Category
- Wired Router
- Model
- DSR-250V2/B
- Part number
- DSR-250V2/B
- EAN / UPC
- 790069472343
- Also known as
- D-Link Unified Services VPN Router
Specifications
43 specifications in 12 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| SFP WAN | No |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Static route | Yes |
| VLAN support | Yes |
| Concurrent connections | 50000 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Number of console ports | 1 |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Routing protocols | OSPF, OSPFv3, RIP-1, RIP-2 |
| Supported network protocols | IPv6, SNMP v1, v2c, v3 |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, AES, DES |
| Firewall | Yes |
| Authentication method | Internal User Database, Radius, POP3, LDAP, AD, NT Domain |
| URL filtering | Yes |
| Network address translation (NAT) | Yes |
| VPN tunnels quantity | 75 |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Features
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 1239157.85 h |
| Safety | LVD (EN62368) |
| Certification | FCC Class B, CE Class B, RCM, IC, VCCI |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| On/off switch | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14.4 W |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 190 mm |
| Height | 38 mm |
