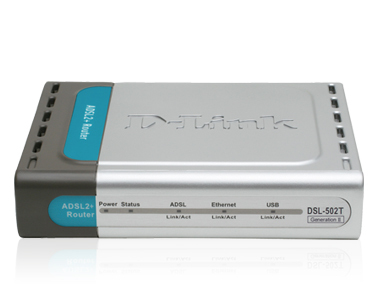

DSL-502T wired router Fast Ethernet Black, Silver
Model DSL-502TEAN 790069263651
42 specifications
- ConnectivityWired
- Weight202 g
- ColourBlack, Silver
- Networking standardsIEEE 802.3, IEEE 802.3u
- ADSL2+Yes
- Ethernet LAN (RJ-45) ports1
Overview
- Connectivity
- Wired
- Weight
- 202 g
- Colour
- Black, Silver
- Networking standards
- IEEE 802.3, IEEE 802.3u
- ADSL2+
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- D-Link
- Category
- Wired Router
- Model
- DSL-502T
- Part number
- DSL-502T
- EAN / UPC
- 790069263651
- Also known as
- D-Link DSL-502T wired router Fast Ethernet Black, Silver
Specifications
42 specifications in 13 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
DSL features
| Specification | Value |
|---|---|
| ADSL2+ | Yes |
| Upstream data rate | 1 Mbit/s |
| Downstream data rate | 24 Mbit/s |
| DSL specification | T1.413, G.992.1, G.992.2, G.992.3, G.992.4, G.994.1, G.992.5 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RJ-11 ports quantity | 1 |
| USB ports quantity | 1 |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| Management protocols | IGMP, SNMPv1/v2c |
| Supported network protocols | PPPoE, DNS, DDNS, SNTP, ICMP/TCP/UDP, Telnet |
Security
| Specification | Value |
|---|---|
| Firewall security | Network address translation (NAT) firewall |
| MAC address filtering | Yes |
| System event log | Yes |
| VPN support | PPTP, IPsec |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
Features
| Specification | Value |
|---|---|
| Safety | CSA, LVD |
| Certification | FCC, CE |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| LED indicators | LAN, Link, Status, USB, Yes |
Power
| Specification | Value |
|---|---|
| Input current | 1.25 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 202 g |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 142 x 117 x 31 mm |
| Input voltage | 12 V |
| Networking features | Fast Ethernet |
| Power LED | Yes |
| Relative humidity | 5 - 95% |
