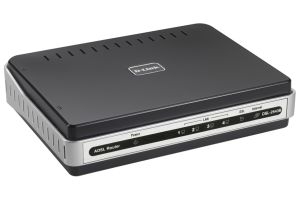

D-Link DSL-2543B wired router
Model DSL-2543BEAN 790069309298
24 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Supports ISDN connectionNo
- ADSLYes
- Ethernet LAN (RJ-45) ports4
- Operating temperature (T-T)0 - 20 °C
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Supports ISDN connection
- No
- ADSL
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Operating temperature (T-T)
- 0 - 20 °C
- Brand
- D-Link
- Category
- Wired Router
- Model
- DSL-2543B
- Part numbers
- DSL-2543B, DSL-2543B/EU
- EAN / UPC
- 790069309298, 7900693092982
- Also known as
- D-Link DSL-2543B wired router
Specifications
24 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Supports ISDN connection | No |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| Upstream data rate | 1 Mbit/s |
| Downstream data rate | 24 Mbit/s |
| DSL specification | ADSL |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| RJ-11 ports quantity | 1 |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Management protocols | DCC |
| Supported network protocols | ADSL, DDNS, NTP, IP Static routing |
Security
| Specification | Value |
|---|---|
| Firewall security | Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall |
| MAC address filtering | Yes |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Certification | - FCC Part 15 Class B - CE (EN55022/EN55024) - FCC Part 15 B - CSA: CSA60950-1, EN60950-1, IEC60950-1, UL60950-1 - CE LVD EN60950-1 - RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 20 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Power requirements | 9V/1A / 12V/1.2A(AC / DC) |
| Connectivity technology | Wired |
| Maximum data transfer rate | 0.1 Gbit/s |
