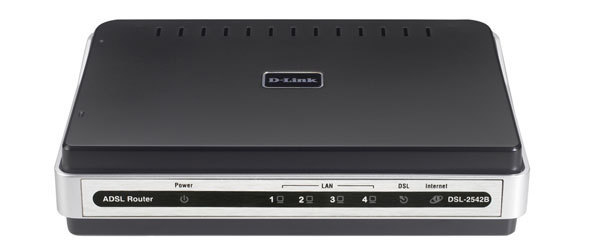

DSL-2542B/E wired router Fast Ethernet Black
Model DSL-2542B/E
38 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- ColourBlack
- Networking standardsIEEE 802.1p, IEEE 802.1Q
- ADSL2+Yes
- Ethernet LAN (RJ-45) ports4
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Colour
- Black
- Networking standards
- IEEE 802.1p, IEEE 802.1Q
- ADSL2+
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- D-Link
- Category
- Wired Router
- Model
- DSL-2542B/E
- Part number
- DSL-2542B/E
- Also known as
- D-Link DSL-2542B/E wired router Fast Ethernet Black
Specifications
38 specifications in 12 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1Q |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Data transfer rate | 100 Mbit/s |
DSL features
| Specification | Value |
|---|---|
| ADSL2+ | Yes |
| Upstream data rate | 1 Mbit/s |
| Downstream data rate | 24 Mbit/s |
| DSL specification | ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) Annex A, ITU-T G.992.2 (G.lite) Annex A, ITU-T G.994.1 (G.hs), ITU-T G.992.3 (G.dmt.bis) Annex A/L/M ITU-T G.992.4 (G.lite.bis) Annex A, ITU-T G.992.5 Annex A/M |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| Management protocols | TFTP, Telnet/SSH, ADSL/ADSL2/ADSL2+, VPI/VCI, SNMP v.1/v.2c (MIB-I / MIB-II) |
| Supported network protocols | IPSec, PPTP, L2TP, SNTP, DNS, DDNS, IGMP |
Security
| Specification | Value |
|---|---|
| Firewall security | BNAT firewall |
| MAC address filtering | Yes |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
Features
| Specification | Value |
|---|---|
| Safety | CSA, CE |
| Certification | RoHS, FCC, CE |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | DSL, Power, Yes |
Power
| Specification | Value |
|---|---|
| Input current | 1.2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | -5 - 95% |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Input voltage | 12 V |
| Maximum data transfer rate | 0.1 Gbit/s |
| Networking features | Fast Ethernet |
| Connectivity LEDs | Yes |
