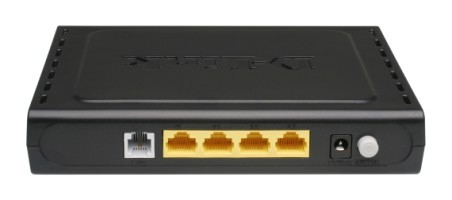

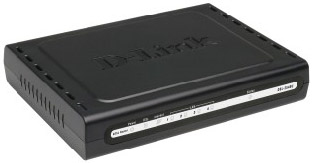

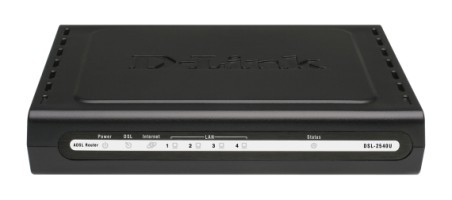

DSL-2540U wired router Fast Ethernet
Model DSL-2540U
34 specifications
- ConnectivityWired
- Weight308 g
- Networking standardsIEEE 802.1p
- ADSL2+Yes
- Ethernet LAN (RJ-45) ports4
- CertificationFCC, CE, CSA, LVD, RoHS
Overview
- Connectivity
- Wired
- Weight
- 308 g
- Networking standards
- IEEE 802.1p
- ADSL2+
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Certification
- FCC, CE, CSA, LVD, RoHS
- Brand
- D-Link
- Category
- Wired Router
- Model
- DSL-2540U
- Part number
- DSL-2540U
- Also known as
- D-Link DSL-2540U wired router Fast Ethernet
Specifications
34 specifications in 13 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
DSL features
| Specification | Value |
|---|---|
| ADSL2+ | Yes |
| DSL specification | ADSL: ANSI T1.413, ITU-T G.992.1 Annex A, ITU-T G.992.2 Annex A, ITU-T G.994.1; ADSL2: ITU-T G.992.3 Annex A/L/M, ITU-T G.992.4 Annex A, ADSL2+: ITU-T G.992.5 Annex A/L/M |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| Supported network protocols | AAL5, ATM, ITU-T, PPP, PPPoE, RIP, NAT, DHCP, IGMP, SNTP |
Security
| Specification | Value |
|---|---|
| Firewall security | Network address translation (NAT) firewall |
| MAC address filtering | Yes |
| VPN support | IPSec, PPTP, L2TP |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| User Guide on CD-ROM | Yes |
Features
| Specification | Value |
|---|---|
| Certification | FCC, CE, CSA, LVD, RoHS |
Design
| Specification | Value |
|---|---|
| LED indicators | DSL, LAN, Power, Status |
Power
| Specification | Value |
|---|---|
| Input current | 0.7 - 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 308 g |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 196 x 121 x 32 mm |
| Input voltage | 12 / 15 V |
| Networking features | Fast Ethernet |
