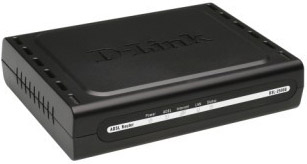

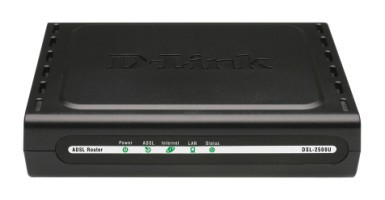

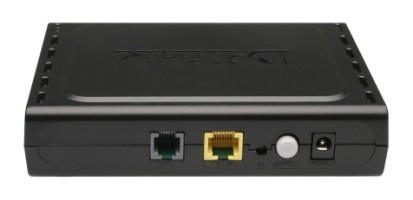

DSL-2500U wired router Fast Ethernet
Model DSL-2500U
36 specifications
- ConnectivityWired
- Networking standardsIEEE 802.1p
- ADSL2+Yes
- Ethernet LAN (RJ-45) ports1
- LED indicatorsDSL, LAN, Power, Status
- Input current1.2 A
Overview
- Connectivity
- Wired
- Networking standards
- IEEE 802.1p
- ADSL2+
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- LED indicators
- DSL, LAN, Power, Status
- Input current
- 1.2 A
- Brand
- D-Link
- Category
- Wired Router
- Model
- DSL-2500U
- Part number
- DSL-2500U
- Also known as
- D-Link DSL-2500U wired router Fast Ethernet
Specifications
36 specifications in 12 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
DSL features
| Specification | Value |
|---|---|
| ADSL2+ | Yes |
| Upstream data rate | 2 Mbit/s |
| Downstream data rate | 24 Mbit/s |
| DSL specification | ANSI T1.413, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.4, ITU-T G.992.5 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| Supported network protocols | ICMP, RIP, RIPv2, NAT, DHCP, DNS, DDNS, IGMP, SNTP, ATM, PPP, IPCP, LCP, PAP, CHAP, PPPoE |
Security
| Specification | Value |
|---|---|
| Firewall security | Network address translation (NAT) firewall |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Filtering description | ICMP, TCP, UDP |
| VPN support | IPSec, PPTP, L2TP |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Certification | CE, FCC, CSA, RoHS |
Design
| Specification | Value |
|---|---|
| LED indicators | DSL, LAN, Power, Status |
Power
| Specification | Value |
|---|---|
| Input current | 1.2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 105 x 120 x 32 mm |
| Input voltage | 5 V |
| Networking features | Fast Ethernet |
