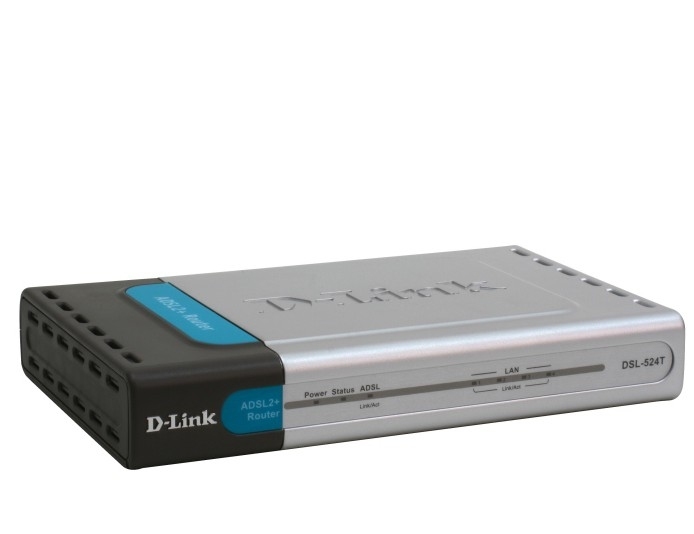

4-Port ADSL2/2+ Router
Model 4-Port ADSL2/2+ RouterPart no. DSL-524T/UKEAN 790069284083
24 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight293 g
- Supports ISDN connectionNo
- ADSLYes
- Management protocolsSNMP v.1/v.2c, IGMP, DHCP
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 293 g
- Supports ISDN connection
- No
- ADSL
- Yes
- Management protocols
- SNMP v.1/v.2c, IGMP, DHCP
- Brand
- D-Link
- Category
- Wired Router
- Model
- 4-Port ADSL2/2+ Router
- Part numbers
- DSL-524T/UK, DSL-524T/FR
- EAN / UPC
- 790069284083, 790069290091
- Also known as
- D-Link 4-Port ADSL2/2+ Router wired router
Specifications
24 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Supports ISDN connection | No |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| Upstream data rate | 1 Mbit/s |
| Downstream data rate | 24 Mbit/s |
| DSL specification | ANSI T1.413 Issue 2, ITU G.992.1 (G.dmt) Annex A, ITU G.992.2 (G.lite) Annex A; ITU G.992.3 (G.dmt.bis) Annex A, ITU G.992.4 (G.lite.bis) Annex A; ITU G.992.5 Annex A |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1x ADSL (RJ-11) 4x Ethernet 10/100 (RJ-45) |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v.1/v.2c, IGMP, DHCP |
| Supported network protocols | PPPoE, UPnP, CMP/TCP/UDP |
Security
| Specification | Value |
|---|---|
| Firewall security | Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall |
| MAC address filtering | Yes |
| VPN support | PPTP/IPSec Pass-Through |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Quick Installation Wizard |
Features
| Specification | Value |
|---|---|
| Certification | CSA, LVD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 293 g |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 193 x 118 x 31 mm |
| Management platform | Web-based GUI |
| Maximum data transfer rate | 0.1 Gbit/s |
| Networking features | ADSL2/ADSL2+, Ethernet, Fast Ethernet |
| Logging and monitoring | Syslog |
| Electromagnetic emissions | FCC Part 15 Class B, EN55022/EN55024/EN300 328/EN301 489 |
