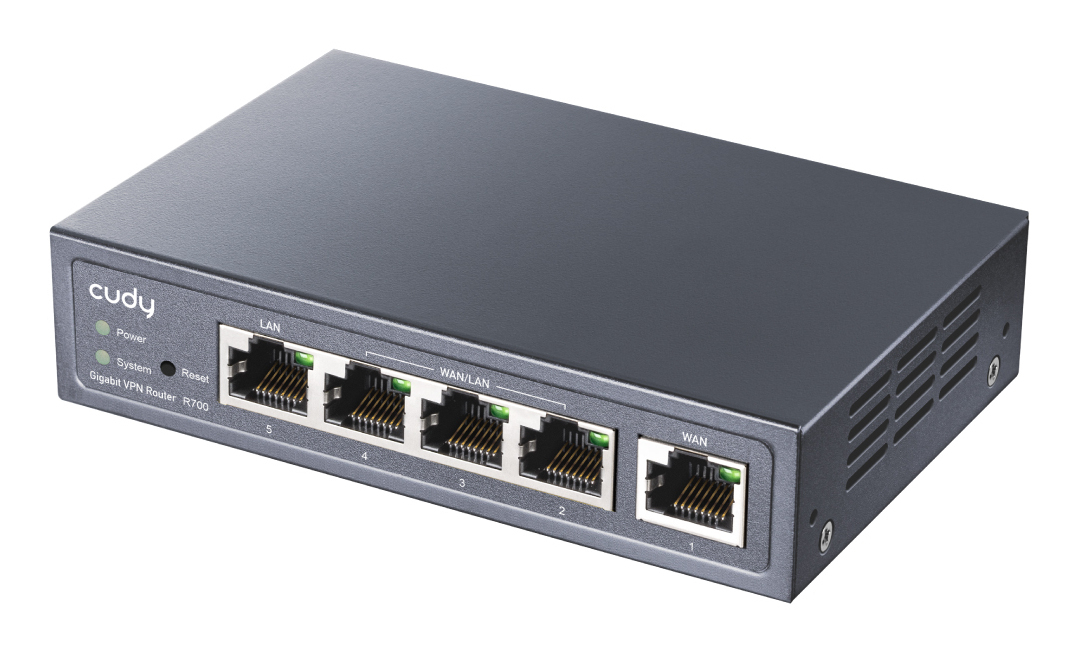

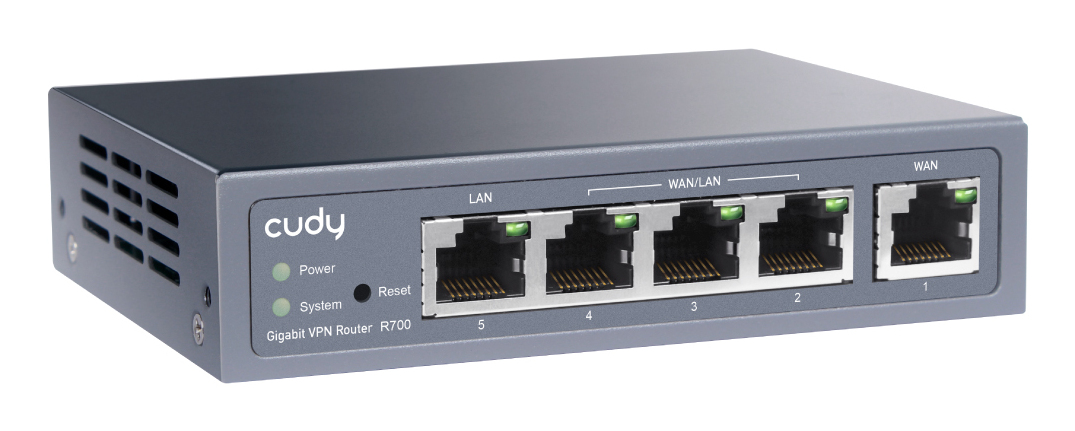

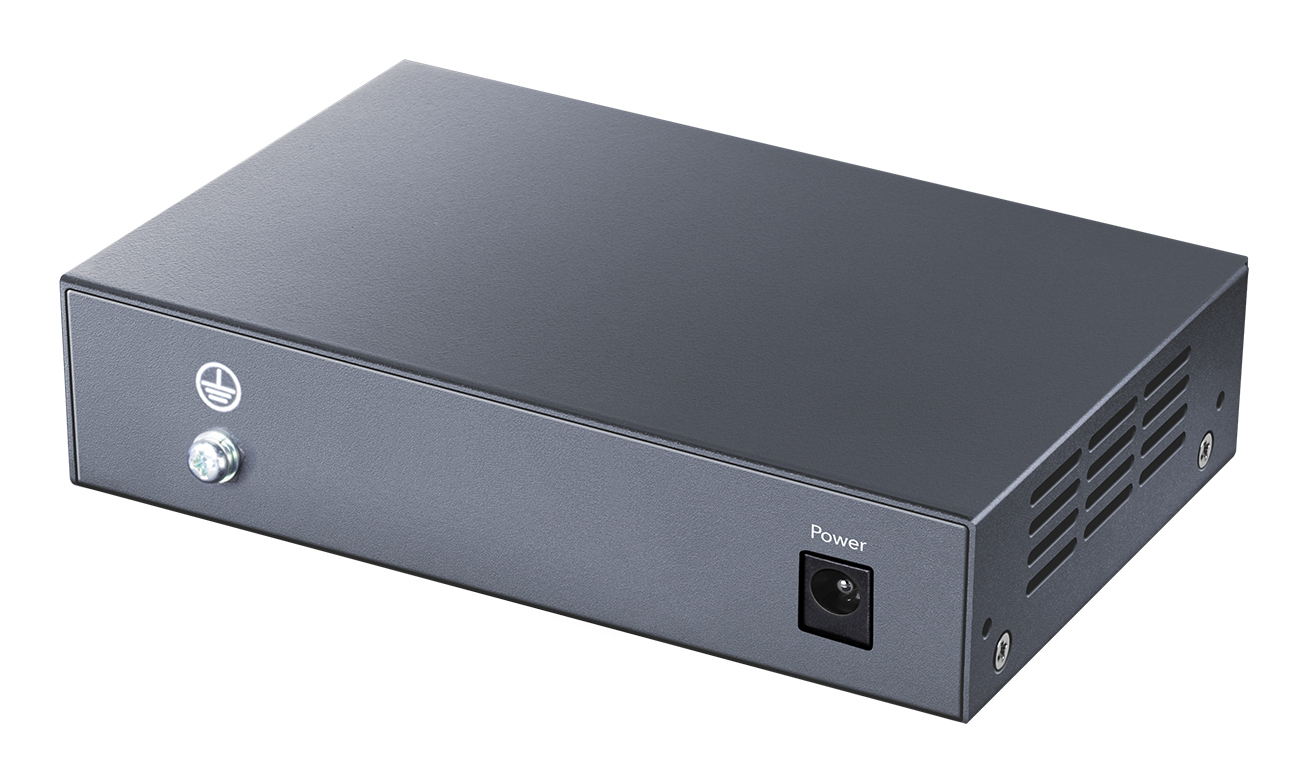

Gigabit Multi-WAN VPN Router
Model Gigabit Multi-WAN VPN RouterPart no. R700EAN 6971690792985
52 specifications
- Memory128 MB
- ConnectivityWired
- ColourGrey
- Ethernet WANYes
- Ethernet interface typeFast Ethernet, Gigabit Ethernet
- Ethernet LAN (RJ-45) ports4
Overview
- Memory
- 128 MB
- Connectivity
- Wired
- Colour
- Grey
- Ethernet WAN
- Yes
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- Cudy
- Category
- Wired Router
- Model
- Gigabit Multi-WAN VPN Router
- Part number
- R700
- EAN / UPC
- 6971690792985
- Also known as
- Cudy Gigabit Multi-WAN VPN Router wired router Fast Ethernet, Gigabit Ethernet Grey
Specifications
52 specifications in 14 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| SFP WAN | No |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | Yes |
| Static route | Yes |
| Policy-based routing | Yes |
| Concurrent connections | 25000 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| WAN/Ethernet LAN ports quantity | 3 |
| WAN ports quantity | 1 |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| Supported network protocols | /IP, DHCP, ICMP, NAT, PPPoE,HTTP, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard, Zerotier |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, SHA-1, SHA-2, SHA-512 |
| Firewall | Yes |
| MAC address filtering | Yes |
| URL filtering | Yes |
| IP address filtering | Yes |
| DoS attack prevention | Yes |
| System event log | Yes |
| VPN support | WireGuard OpenVPN IPsec Zerotier PPTP L2TP |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Sustainability compliance | Yes |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
Features
| Specification | Value |
|---|---|
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Internal memory type | DRAM |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, System, WAN |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 119 mm |
| Depth | 85 mm |
| Height | 28 mm |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
