Allied Telesis Secure ADSL Router (Annex A)
Model Secure ADSL Router (Annex A)Part no. AT-AR440S-XX
30 specifications
- Memory64 MB
- Speed0.008 Gbit/s
- ConnectivityWired
- Weight1.96 kg
- Data transfer rate8 Mbit/s
- ADSLYes
Overview
- Memory
- 64 MB
- Speed
- 0.008 Gbit/s
- Connectivity
- Wired
- Weight
- 1.96 kg
- Data transfer rate
- 8 Mbit/s
- ADSL
- Yes
- Brand
- Allied Telesis
- Category
- Wired Router
- Model
- Secure ADSL Router (Annex A)
- Part number
- AT-AR440S-XX
- Also known as
- Allied Telesis Secure ADSL Router (Annex A) wired router
Specifications
30 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Data transfer rate | 8 Mbit/s |
| Supports ISDN connection | No |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| Upstream data rate | 0.832 Mbit/s |
| Downstream data rate | 8 Mbit/s |
| DSL specification | Annex A G992.1 G.DMT |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

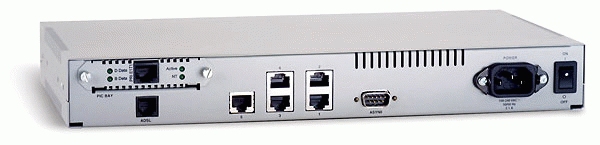

| I/O ports | 1x ADSL 5x 10/100BASE-T 1x PIC |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Management protocols | CLI, SNMP |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, DES, SSH |
| Authentication method | RADIUS, TACACS, MD5, PAP, CHAP |
| IP address filtering | Yes |
| VPN support | L2TP NAT-T |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 300 MHz |
| Flash memory | 16 MB |
| Internal memory | 64 MB |
| Certification | UL TUV UL60950 EN60950 EN55022 class A EN55024 FCC class A VCCI class A AS/NZS CISPR22 class A CE |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 40 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.96 kg |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100-240V@50-60Hz |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 335 x 180 x 44 mm |
| Maximum data transfer rate | 0.008 Gbit/s |
| Power supply type | AC |
