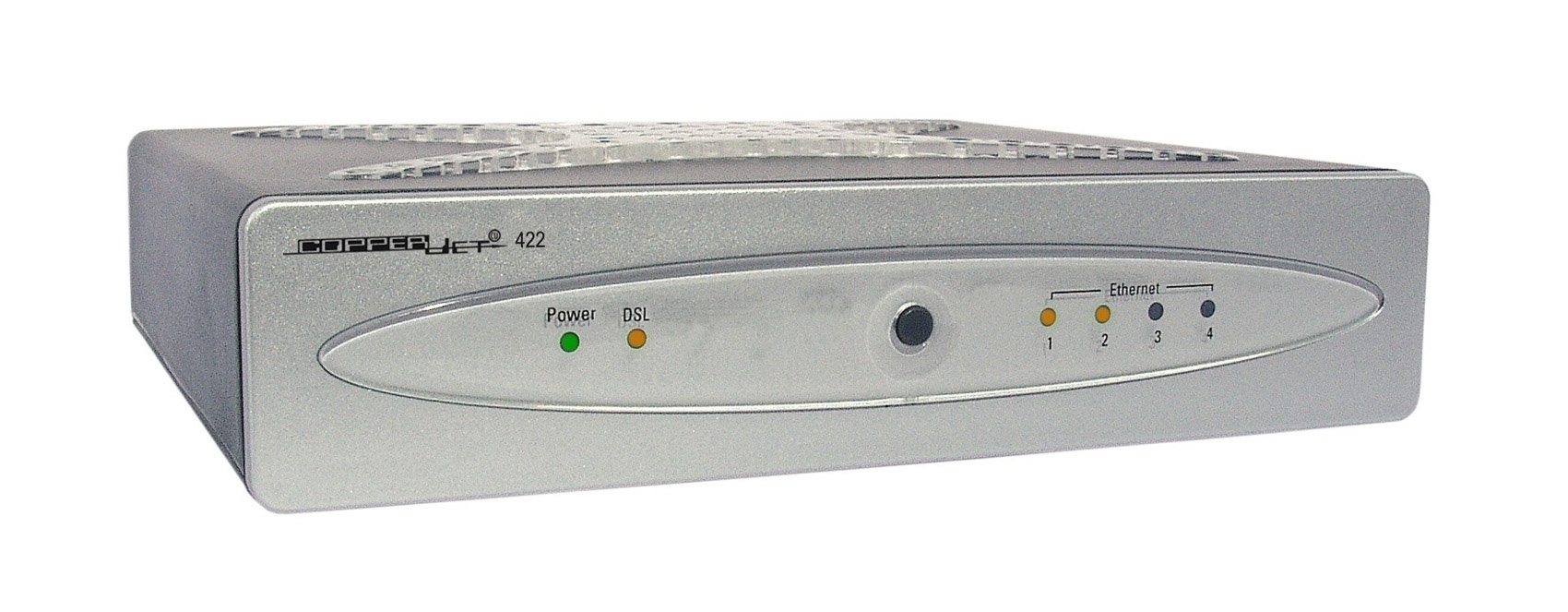

CopperJet 422
Model CopperJet 422Part no. CJT-422EU-01EAN 8715953002064
19 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight500 g
- Full duplexYes
- MAC address table4096 entries
- LED indicatorsDSL, Power
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 500 g
- Full duplex
- Yes
- MAC address table
- 4096 entries
- LED indicators
- DSL, Power
- Brand
- Allied Telesis
- Category
- Wired Router
- Model
- CopperJet 422
- Part number
- CJT-422EU-01
- EAN / UPC
- 8715953002064
- Also known as
- Allied Telesis CopperJet 422 wired router
Specifications
19 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
| Supports ISDN connection | Yes |
| LAN features | 4 x Ethernet 10/100 BaseT |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | - 4 x Ethernet (RJ45) - SHDSL Annex A & B RJ11 - Power |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP V1, V2, MIB I, MIB II, TELNET, Dying Gasp, Webserver |
Security
| Specification | Value |
|---|---|
| MAC address table | 4096 entries |
Features
| Specification | Value |
|---|---|
| Certification | - CE mark - IEC 60950 - FCC part 15 class B - FCC part 68 - UL 1950 |
Design
| Specification | Value |
|---|---|
| LED indicators | DSL, Power |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 500 g |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | - Ethernet: Windows, Linux & MAC |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 202 x 176 x 50 mm |
| Maximum data transfer rate | 0.1 Gbit/s |
| Power supply type | 115-230 VAC, 50 - 60 Hz, 10 W |
| Security features | - Stateful Inspection Firewall - Intrusion Detection - Denial Of Service protection - De-Militarized Zone - NAT/NAPT |
| Supported WAN type | SHDSL Annex A & B RJ11 ITU G.991.1 ITU G.991.2 ANSI TR-28 Single pair ANSI T1.418 HDSL2 ITU G.994.1 (G.hs) 2B1Q & PAM line codes |
