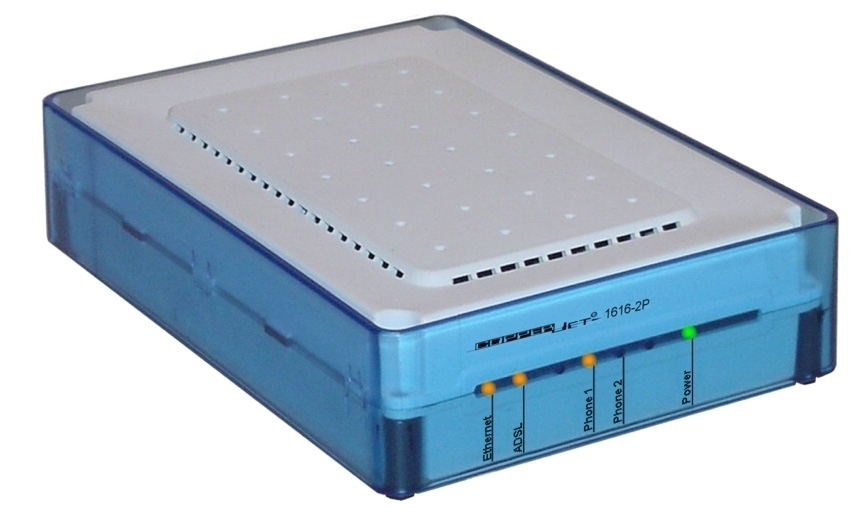

CopperJet 1616 - ADSL over ISDN
Model CopperJet 1616 - ADSL over ISDNPart no. CJT-1616B-2PEU-01EAN 8715953002224
21 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight400 g
- Full duplexYes
- CertificationCE mark IEC 60950
- LED indicatorsPower
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 400 g
- Full duplex
- Yes
- Certification
- CE mark IEC 60950
- LED indicators
- Power
- Brand
- Allied Telesis
- Category
- Wired Router
- Model
- CopperJet 1616 - ADSL over ISDN
- Part number
- CJT-1616B-2PEU-01
- EAN / UPC
- 8715953002224
- Also known as
- Allied Telesis CopperJet 1616 - ADSL over ISDN wired router
Specifications
21 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
| Supports ISDN connection | Yes |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| Downstream data rate | 24 Mbit/s |
| DSL specification | ADSL2, ADSL2+, ADSL (annex B) |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | - Ethernet (RJ45) - ADSL (RJ11) - Power - Phone 1, Phone 2 (RJ11) |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP V1, V2, MIB I, MIB II, TELNET, Dying Gasp, Webserver |
Features
| Specification | Value |
|---|---|
| Certification | CE mark IEC 60950 |
Design
| Specification | Value |
|---|---|
| LED indicators | Power |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 400 g |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | - Ethernet: Windows, Linux & MAC |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 120 x 170 x 40 mm |
| Maximum data transfer rate | 0.1 Gbit/s |
| Power supply type | 115-230 VAC, 50 - 60 Hz, 8 W |
| Security features | - IPsec VPN termination - Stateful Inspection Firewall - Intrusion Detection - Denial Of Service protection - De-Militarized Zone - NAT/NAPT |
| Supported WAN type | - ADSL Annex A, RJ11 - ITU-T G.992.1 (G.dmt) - ITU-T G.992.3 ADSL2 (G.dmt.bis) - ITU-T G.992.5 ADSL2+ (G.dmt.bis.plus) - ANSI T1.413 i2 - G.994.1 (G.hs) |
| Voice features | - 2 x POTS/PSTN FXS (RJ11) - Active Inbound Call Switching - Lifeline support - DTMF - 600 Ohm - 2 REN - Internal Ring Source - Loop Start Signalling - DTMF Detect & Remove - ELCP, CAS, CCS - SIPv2 (RFC 3261), MGCP (RFC 3435), RTP (RFC3550) - SIP DNS, SIP QoS - G.711 (64Kbps PCM) - G.726 (32Kbps ADP |
