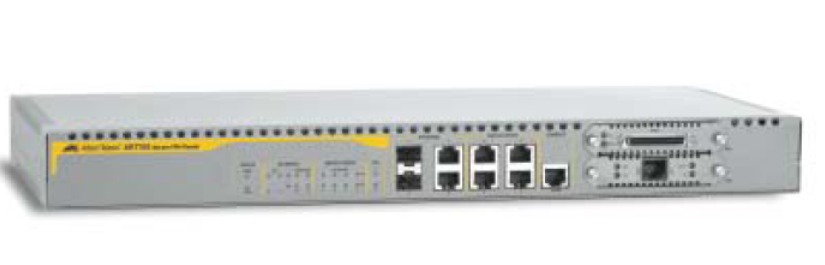

Allied Telesis AT-AR770S wired router Gigabit Ethernet Stainless steel

Allied Telesis AT-AR770S wired router Gigabit Ethernet Stainless steel

Model AT-AR770SPart no. AT-AR770S-00EAN 767035178769

34 specifications
  • Memory128 MB
  • Weight2.95 kg
  • ColourStainless steel
  • Ethernet WANYes
  • Ethernet interface typeGigabit Ethernet
  • Dual-bandNo
See all specifications

Overview

Memory
128 MB
Weight
2.95 kg
Colour
Stainless steel
Ethernet WAN
Yes
Ethernet interface type
Gigabit Ethernet
Dual-band
No
Brand
Allied Telesis
Category
Wired Router
Model
AT-AR770S
Part numbers
AT-AR770S-00, AT-AR770S
EAN / UPC
767035178769, 7670351838794
Also known as
Allied Telesis AT-AR770S wired router Gigabit Ethernet Stainless steel

Specifications

34 specifications in 12 groups

WAN connection

Ethernet WANYes

Network

Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Ethernet LAN data rates10,100,1000 Mbit/s

Wireless LAN features

Dual-bandNo

Management features

Quality of Service (QoS) supportYes

Ports & interfaces

Ethernet LAN (RJ-45) ports4
I/O ports2x SFP 10/100/1000TX (WAN) 2x PIC 4x 10/100/1000TX LAN 1x cnsl 1x DMZ

Protocols

DHCP clientYes
DHCP serverYes

Security

Security algorithms3DES, AES, DES
Authentication methodRADIUS, TACACS, MD5, PAP, CHAP
IP address filteringYes
VPN tunnels quantity1000
NAT functionalityNAT-T

Features

Built-in processorYes
Processor frequency833 MHz
Flash memory32 MB
Internal memory128 MB
Mean time between failures (MTBF)120000 h
CertificationRoHS UL TUV UL60950-1 CAN/CSA-C22.2 No. 60950-1-03 EN60950-1 AS/NZS 60950 EN60825-1 EN55022 class A EN55024 FCC class A VCCI class A AS/NZS CISPR22 class A CE

Design

Product colourStainless steel
Rack mountingYes
Rack capacity1U

Power

Power consumption (typical)40 W

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 80%
Operating altitude0 - 3048 m

Weight & dimensions

Width440 mm
Depth239 mm
Height44 mm
Weight2.95 kg
