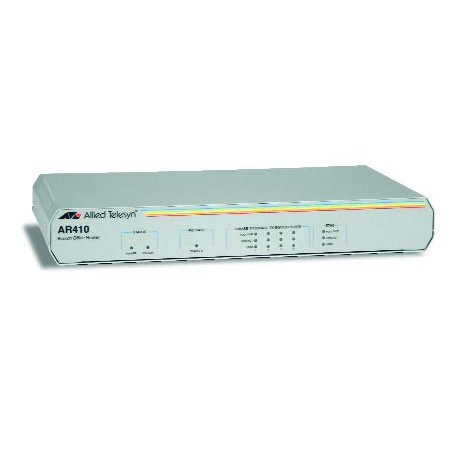

AT-AR410 Modular Branch Office Router
Model AT-AR410 Modular Branch Office RouterPart no. AT-AR410EAN 767035146553
26 specifications
- Memory16 MB
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight1.75 kg
- Data transfer rate100 Mbit/s
- Expansion slots1x Port Interface Card
Overview
- Memory
- 16 MB
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 1.75 kg
- Data transfer rate
- 100 Mbit/s
- Expansion slots
- 1x Port Interface Card
- Brand
- Allied Telesis
- Category
- Wired Router
- Model
- AT-AR410 Modular Branch Office Router
- Part number
- AT-AR410
- EAN / UPC
- 767035146553, 767035146577
- Also known as
- Allied Telesis AT-AR410 Modular Branch Office Router wired router
Specifications
26 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| Data transfer rate | 100 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 4x 10/100 Ethernet LAN 1x 10/100 Ethernet WAN 1x RS-232 |
| Expansion slots | 1x Port Interface Card |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | OSPF |
| Management protocols | SNMP / SNMPv2c / SNMPv3, DHCP |
| Supported network protocols | IP, IPX/SPX, Appletalk, IPX/SPX Spoofing, PPPoE, STP, RSTP |
Security
| Specification | Value |
|---|---|
| Firewall security | Network address translation (NAT) firewall, Port Address Translation (PAT) firewall, IP |
| Authentication method | RADIUS, TACACS+, CHAP, PAP |
Features
| Specification | Value |
|---|---|
| Flash memory | 8 MB |
| Internal memory | 16 MB |
| Mean time between failures (MTBF) | 50000 h |
| Safety | UL60950, CAN/CSA-C22.2 NO. 60950-00, EN60950, AS/NZS3260 |
| Certification | UL, cUL |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.75 kg |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100-240V AC; 50/60Hz |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 305 x 190 x 30 mm |
| Management platform | Console port, Web-based |
| Maximum data transfer rate | 0.1 Gbit/s |
| Networking features | Ethernet, Fast Ethernet |
| Electromagnetic emissions | EN55022 class A, FCC class A, class I, AS/NZS3548 class AVCCI |
