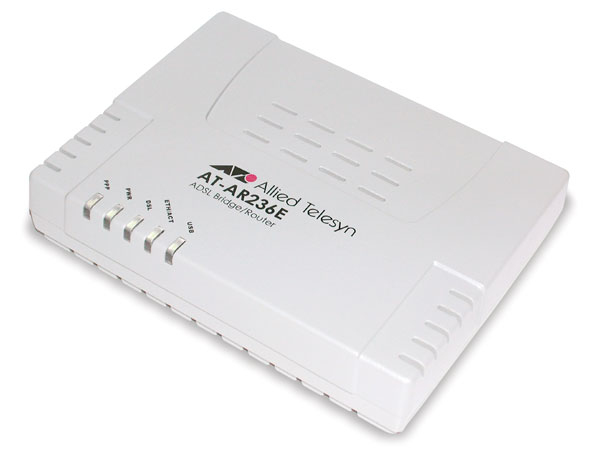

Allied Telesis AT-AR236E ADSL bridge/router
Model AT-AR236E ADSL bridge/routerPart no. AT-AR236E-20
29 specifications
- Memory8 MB
- Speed0.024 Gbit/s
- ConnectivityWired
- Weight250 g
- ColourWhite
- Supports ISDN connectionNo
Overview
- Memory
- 8 MB
- Speed
- 0.024 Gbit/s
- Connectivity
- Wired
- Weight
- 250 g
- Colour
- White
- Supports ISDN connection
- No
- Brand
- Allied Telesis
- Category
- Wired Router
- Model
- AT-AR236E ADSL bridge/router
- Part number
- AT-AR236E-20
- Also known as
- Allied Telesis AT-AR236E ADSL bridge/router wired router White
Specifications
29 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Supports ISDN connection | No |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| Upstream data rate | 24 Mbit/s |
| Downstream data rate | 3.5 Mbit/s |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RJ-11 ports quantity | 1 |
| USB ports quantity | 1 |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Management protocols | SNMP v1/v2c |
| Supported network protocols | IP/TCP/UDP/ICMP/ARP/RARP |
Features
| Specification | Value |
|---|---|
| Flash memory | 2 MB |
| Internal memory | 8 MB |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 30 - 80% |
| Storage relative humidity (H-H) | 30 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 250 g |
Other features
| Specification | Value |
|---|---|
| Power requirements | 9 V DC +/-10% |
| Compatible operating systems | Windows 98SE/2000/Me/XP/2003 |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 109 x 144 x 30 mm |
| Maximum data transfer rate | 0.024 Gbit/s |
| Connectivity LEDs | Yes |
