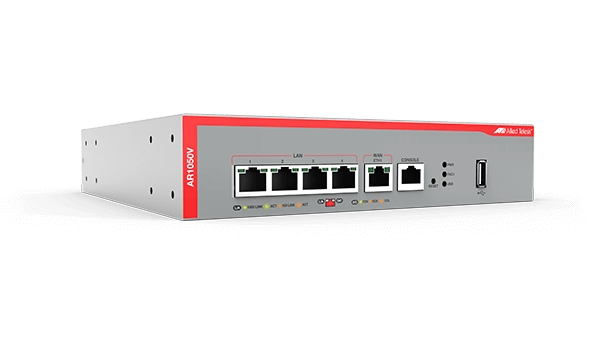

AT-AR1050V-60 wired router Gigabit Ethernet Grey
Model AT-AR1050V-60Part no. 990-006340-60EAN 767035216782
46 specifications
- Memory512 MB
- Weight1.3 kg
- ColourGrey
- Ethernet WANYes
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports4
Overview
- Memory
- 512 MB
- Weight
- 1.3 kg
- Colour
- Grey
- Ethernet WAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- Allied Telesis
- Category
- Wired Router
- Model
- AT-AR1050V-60
- Part number
- 990-006340-60
- EAN / UPC
- 767035216782
- Also known as
- Allied Telesis AT-AR1050V-60 wired router Gigabit Ethernet Grey
Specifications
46 specifications in 14 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Policy-based routing | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Reset button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB ports quantity | 1 |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, IPSec, SHA-1, SHA-256, SNMP, SNMPv3, SSH, SSH-2 |
| Firewall | Yes |
| System event log | Yes |
| VPN tunnels quantity | 30 |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Storage media | Flash |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Safety | UL62368-1, EN60950-1, CAN/CSA-C22.2 No.60950-1, AS/NZS 60950-1 |
| Electromagnetic compatibility | EN55032 B, FCC B, VCCI B |
| Certification | UL, UL EU, CE |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| LED indicators | Status |
| On/off switch | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 265 mm |
| Package depth | 256 mm |
| Package height | 109 mm |
| Package weight | 1.9 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
