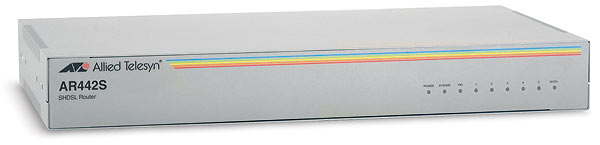

Allied Telesis 5-port 10/100T SHDSL Router, 1x PIC slot, 1x Async console/modem port
Model 5-port 10/100T SHDSL Router, 1x PIC slot, 1x Async console/modem portPart no. AT-AR442S-XX
28 specifications
- Memory128 MB
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight330 g
- Data transfer rate10 Mbit/s
- ADSLYes
Overview
- Memory
- 128 MB
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 330 g
- Data transfer rate
- 10 Mbit/s
- ADSL
- Yes
- Brand
- Allied Telesis
- Category
- Wired Router
- Model
- 5-port 10/100T SHDSL Router, 1x PIC slot, 1x Async console/modem port
- Part number
- AT-AR442S-XX
- Also known as
- Allied Telesis 5-port 10/100T SHDSL Router, 1x PIC slot, 1x Async console/modem port wired router
Specifications
28 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Supports ISDN connection | Yes |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| Upstream data rate | 4.6 Mbit/s |
| Downstream data rate | 4.6 Mbit/s |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| I/O ports | 1x SHDSL 1x PIC |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, CLI |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, DES, MD5 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 300 MHz |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Mean time between failures (MTBF) | 120000 h |
| Certification | UL, TUV, UL60950, EN60950, EN55022 A, EN55024, FCC A, VCCI A, AS/NZS CISPR22 A, CE |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 330 g |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100-240V@50-60 Hz |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 355 x 200 x 45 mm |
| Maximum data transfer rate | 0.1 Gbit/s |
| Networking features | Ethernet/Fast Ethernet |
| Power supply type | AC |
