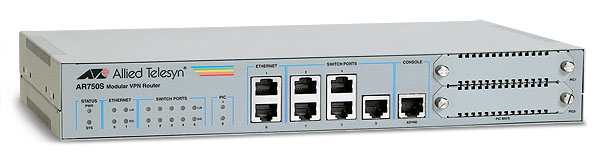

Allied Telesis 10/100T x 2 WAN ports secure modular VPN router
Model 10/100T x 2 WAN ports secure modular VPN routerPart no. AT-AR750S-XX
31 specifications
- Memory64 MB
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight1.94 kg
- ColourWhite
- Data transfer rate10 Mbit/s
Overview
- Memory
- 64 MB
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 1.94 kg
- Colour
- White
- Data transfer rate
- 10 Mbit/s
- Brand
- Allied Telesis
- Category
- Wired Router
- Model
- 10/100T x 2 WAN ports secure modular VPN router
- Part number
- AT-AR750S-XX
- Also known as
- Allied Telesis 10/100T x 2 WAN ports secure modular VPN router wired router White
Specifications
31 specifications in 12 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x |
| Data transfer rate | 10 Mbit/s |
| Supports ISDN connection | Yes |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| I/O ports | 2x 10/100 WAN 2x PICs |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Management protocols | SNMP |
Security
| Specification | Value |
|---|---|
| Authentication method | RADIUS, TACACS, MD5, PAP, CHAP |
| MAC address filtering | Yes |
| VPN tunnels quantity | 5000 |
Features
| Specification | Value |
|---|---|
| Flash memory | 16 MB |
| Internal memory | 64 MB |
| Certification | UL, TUV, UL60950, EN60950, EN55022 A, EN55024, FCC A, VCCI A, AS/NZS CISPR22 A, CE |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Rack mounting | Yes |
| Rack capacity | 1U |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 40 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.94 kg |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100-240V@50-60Hz |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 305 x 190 x 44 mm |
| Maximum data transfer rate | 0.1 Gbit/s |
| Connectivity LEDs | Yes |
