IDATA SPDIF-6E3
Model IDATA SPDIF-6E3EAN 8059018368475
24 specifications
- Weight40 g
- ColourBlack
- Converter typeActive video converter
- Maximum video resolution1920 x 1080 pixels
- Host interface3 x RCA
- External power adapterYes
Overview
- Weight
- 40 g
- Colour
- Black
- Converter type
- Active video converter
- Maximum video resolution
- 1920 x 1080 pixels
- Host interface
- 3 x RCA
- External power adapter
- Yes
- Brand
- Techly
- Category
- Video Signal Converter
- Model
- IDATA SPDIF-6E3
- Part number
- IDATA SPDIF-6E3
- EAN / UPC
- 8059018368475
- Also known as
- Techly IDATA SPDIF-6E3 video signal converter Active video converter 1920 x 1080 pixels
Specifications
24 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Converter type | Active video converter |
| Internal | No |
| Plug and Play | Yes |
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Supported video modes | 720p, 1080p |
| Analog signal format system | NTSC 3.58, NTSC 4.43, PAL, PAL M, PAL N, SECAM |
| Maximum refresh rate | 60 Hz |

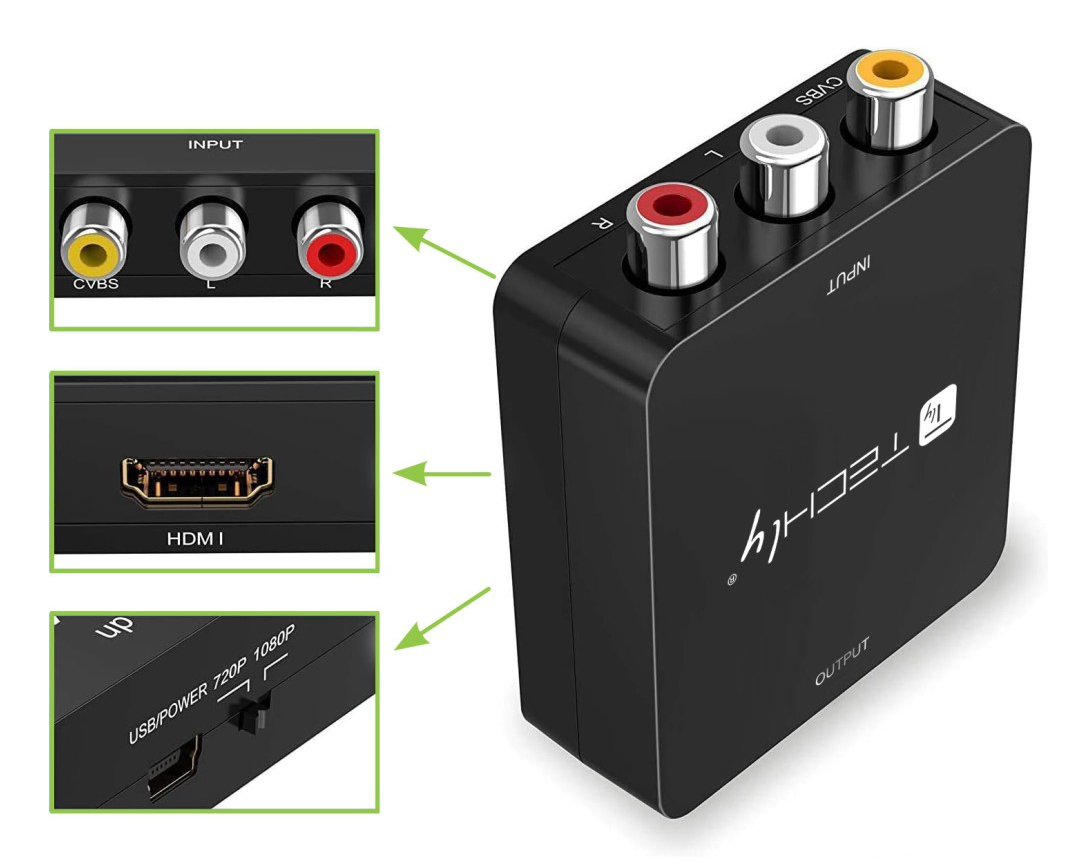

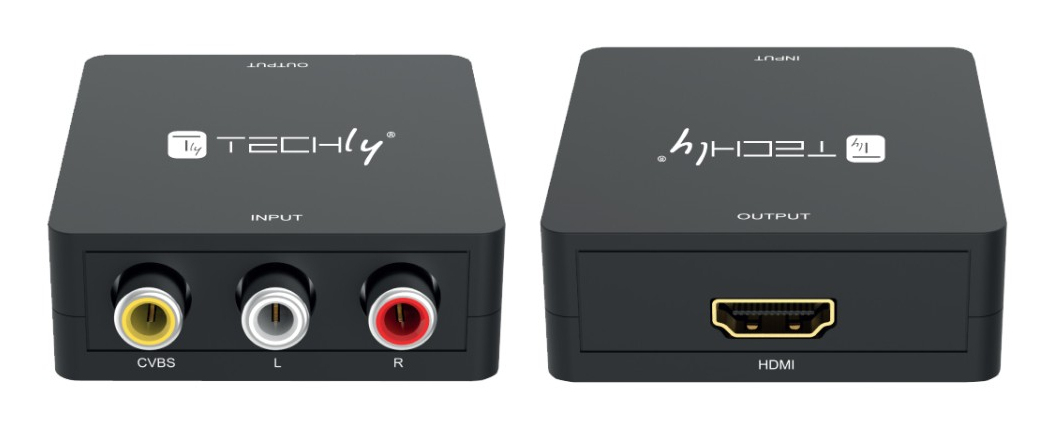

Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | 3 x RCA |
| Output interface | HDMI |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Power consumption (typical) | 5 W |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |

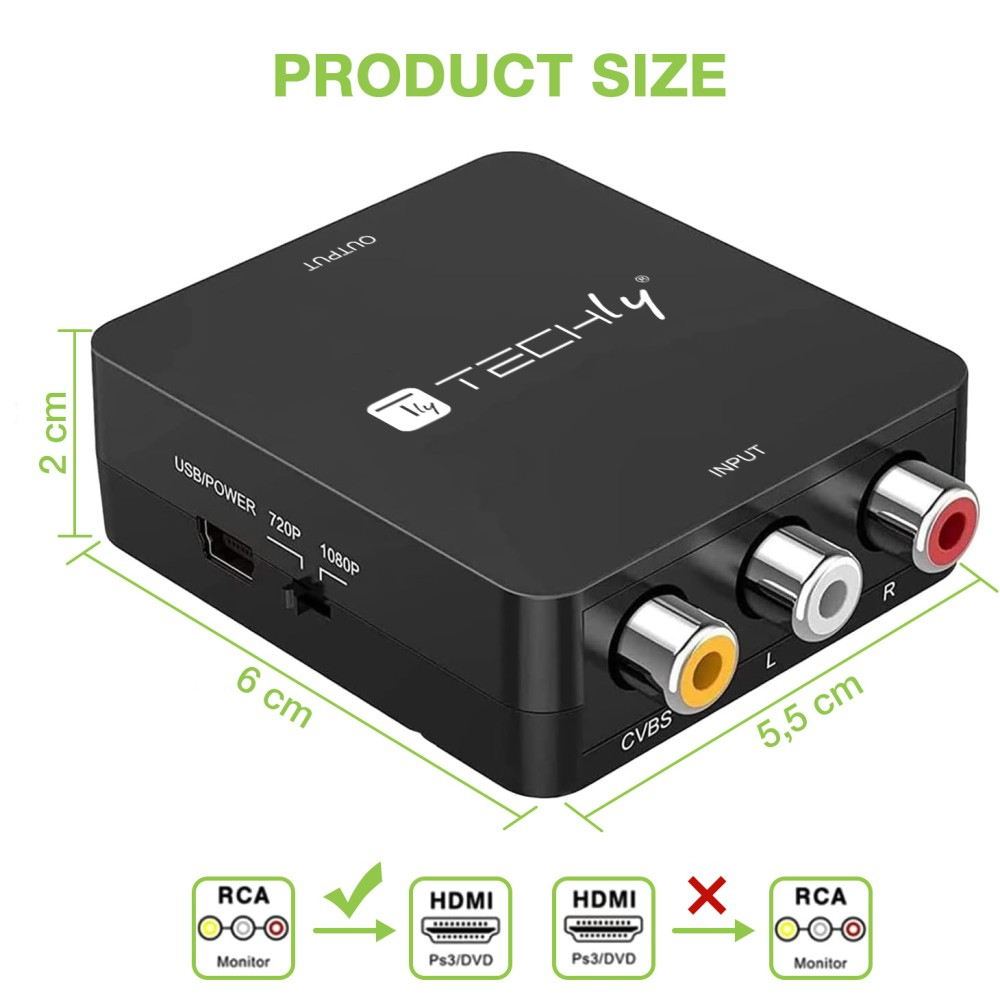

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54 mm |
| Depth | 60.5 mm |
| Height | 20.5 mm |
| Weight | 40 g |
Packaging data
| Specification | Value |
|---|---|

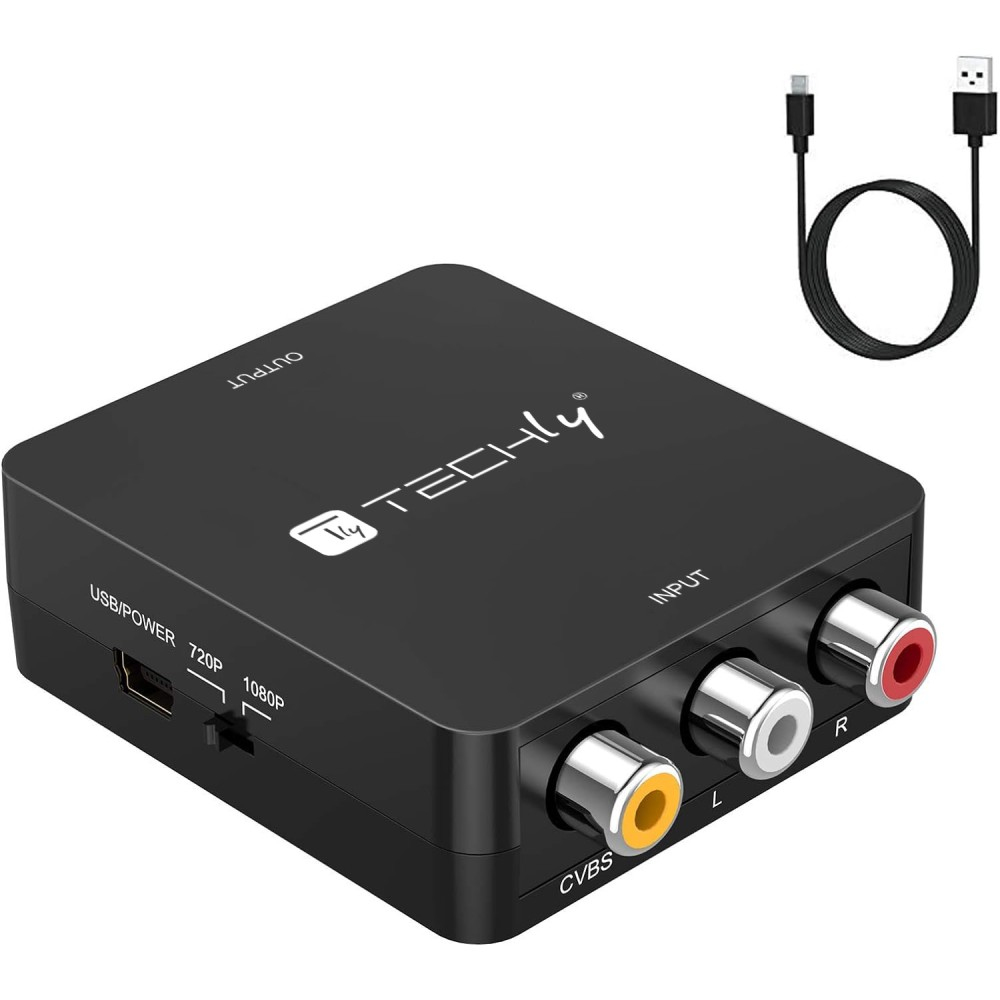

| Cables included | Micro-USB |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 100 pc(s) |
