IDATA SCART-HDMI2
Model IDATA SCART-HDMI2EAN 8054529020331
23 specifications
- Weight373 g
- ColourBlack
- Converter typeScaler video converter
- Maximum video resolution1920 x 1080 pixels
- Host interfaceSCART + HDMI
- External power adapterYes
Overview
- Weight
- 373 g
- Colour
- Black
- Converter type
- Scaler video converter
- Maximum video resolution
- 1920 x 1080 pixels
- Host interface
- SCART + HDMI
- External power adapter
- Yes
- Brand
- Techly
- Category
- Video Signal Converter
- Model
- IDATA SCART-HDMI2
- Part number
- IDATA SCART-HDMI2
- EAN / UPC
- 8054529020331
- Also known as
- Techly Converter SCART to HDMI Scaler 720p / 1080p
Specifications
23 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Converter type | Scaler video converter |
| Product colour | Black |
| Certification | EC, FCC, WEEE |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Video resolutions | 640 x 480,800 x 600,1024 x 768,1280 x 1024,1280 x 720,1280 x 768,1366 x 768,1400 x 1050,1680 x 1050,1920 x 1080 |
| Supported video modes | 1080i, 1080p, 480i, 480p, 576i, 576p, 720p |
| Analog signal format system | NTSC, PAL |
| HDCP | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | SCART + HDMI |
| Output interface | HDMI |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Input voltage | 5 V |
| Operating current | 2 A |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 129 mm |
| Depth | 85 mm |
| Height | 25.5 mm |
| Weight | 373 g |
Packaging data
| Specification | Value |
|---|---|

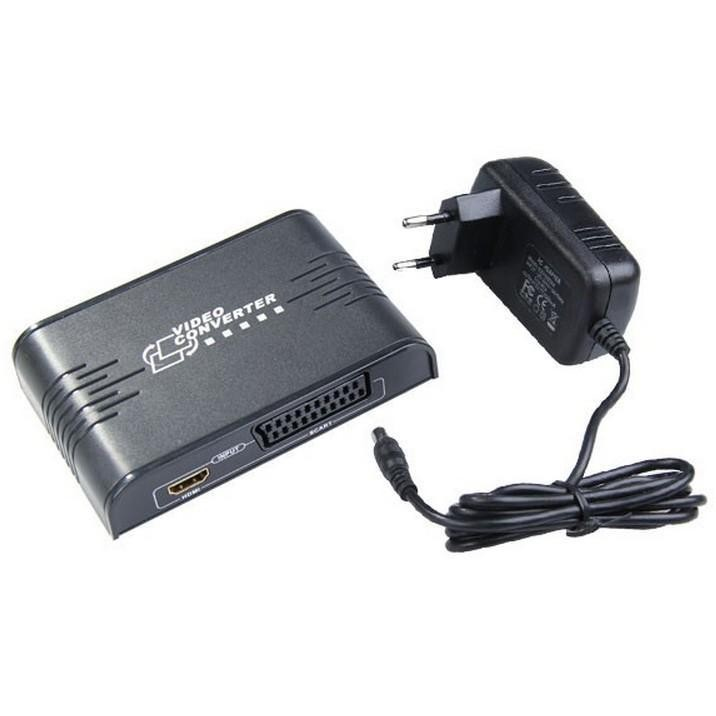

| AC adapter included | Yes |
| Manual | Yes |
| Quantity | 1 |
Other features
| Specification | Value |
|---|---|
| Supported resolutions | 640x480 @ 60Hz, 800x600 @ 60Hz; 1024x768 @ 60Hz, 1280x720 @ 60Hz; 1280x768 @ 60Hz, 1280x1024 @ 60Hz; 1360x768 @ 60Hz, 1366x768 @ 60Hz; 1400x1050 @ 60Hz; 1440x900 @ 60Hz; 1680x1050 @ 60HZ, 1920x1080 @ 60Hz |
