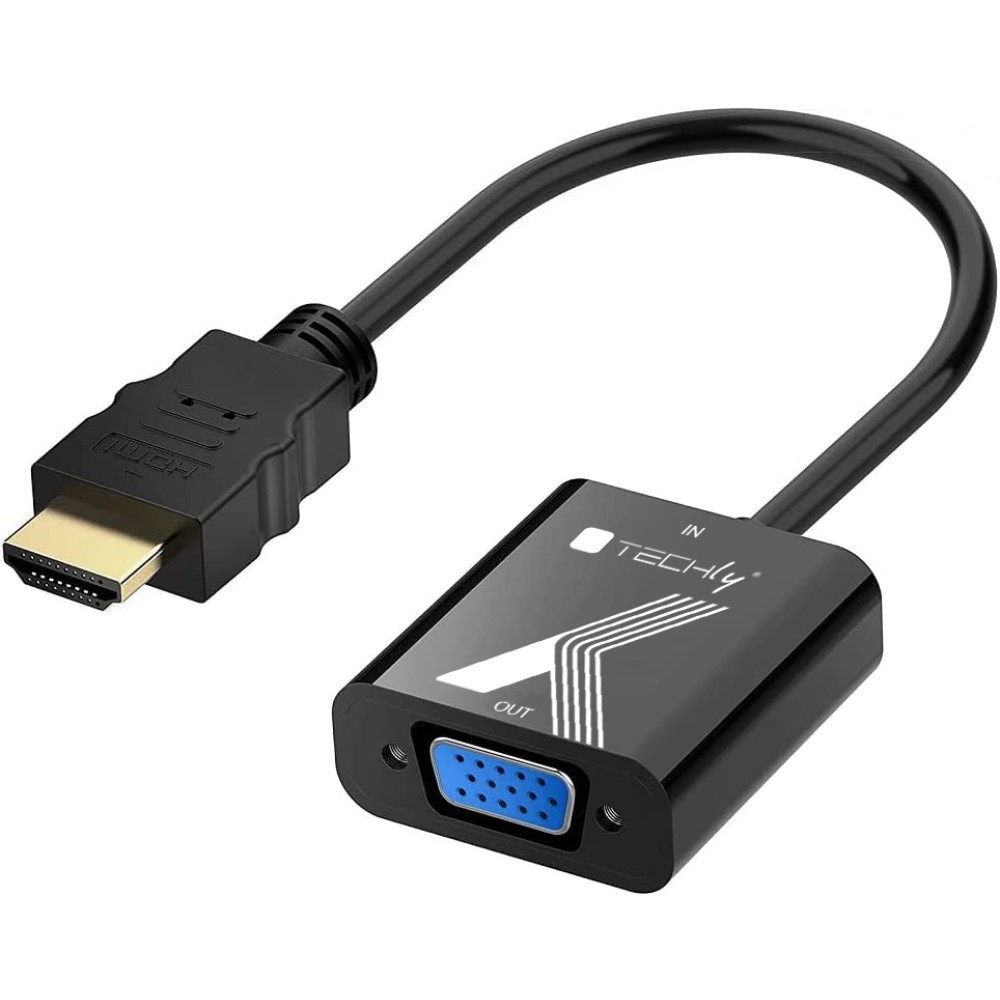

IDATA HDMI-VGA2P
Model IDATA HDMI-VGA2PEAN 8059018361902
24 specifications
- Weight68 g
- ColourBlack
- InternalNo
- Maximum video resolution1920 x 1200 pixels
- Audio sampling rate48 kHz
- Host interfaceHDMI
Overview
- Weight
- 68 g
- Colour
- Black
- Internal
- No
- Maximum video resolution
- 1920 x 1200 pixels
- Audio sampling rate
- 48 kHz
- Host interface
- HDMI
- Brand
- Techly
- Category
- Video Signal Converter
- Model
- IDATA HDMI-VGA2P
- Part number
- IDATA HDMI-VGA2P
- EAN / UPC
- 8059018361902
- Also known as
- Techly Cable Adapter Converter HDMI to VGA
Specifications
24 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Internal | No |
| Product colour | Black |
| Cable length | 0.1 m |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1200 pixels |
| Supported video modes | 480p, 576p, 720p, 1080p |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
Audio
| Specification | Value |
|---|---|
| Audio sampling rate | 48 kHz |
| Audio support | No |

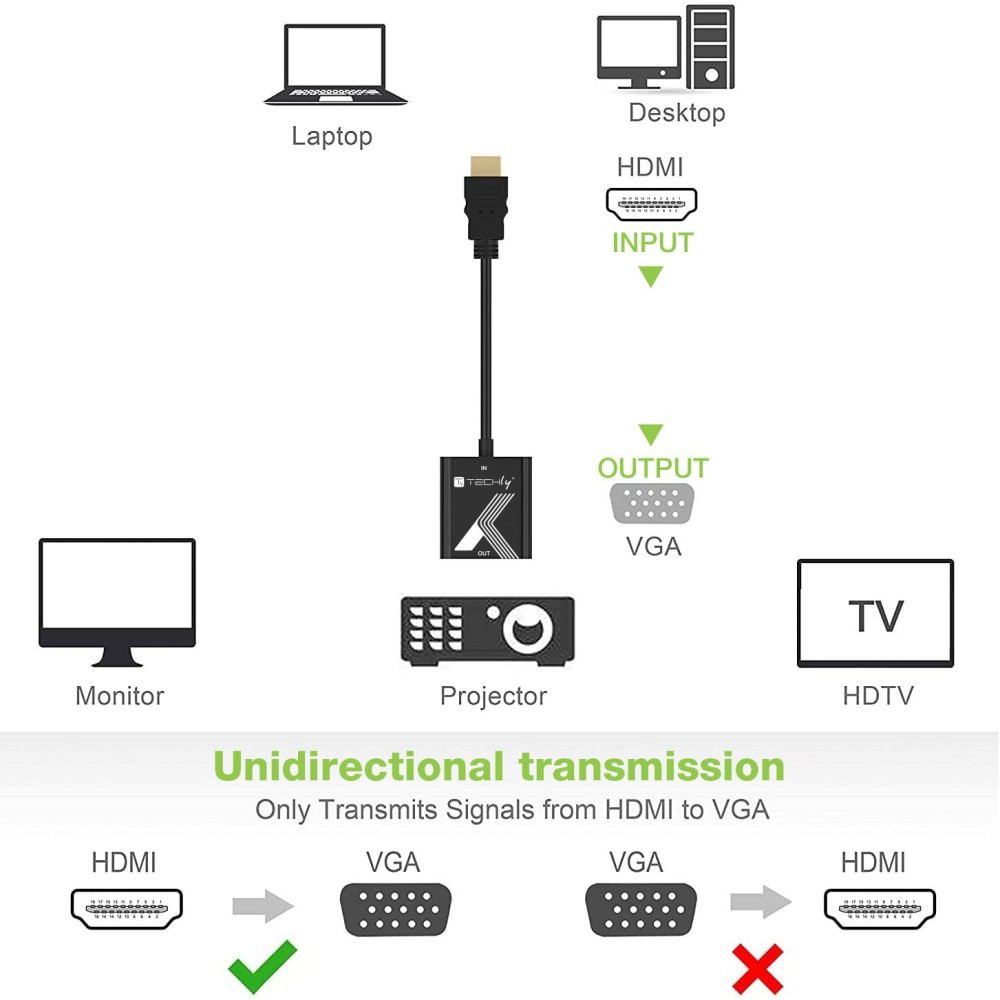

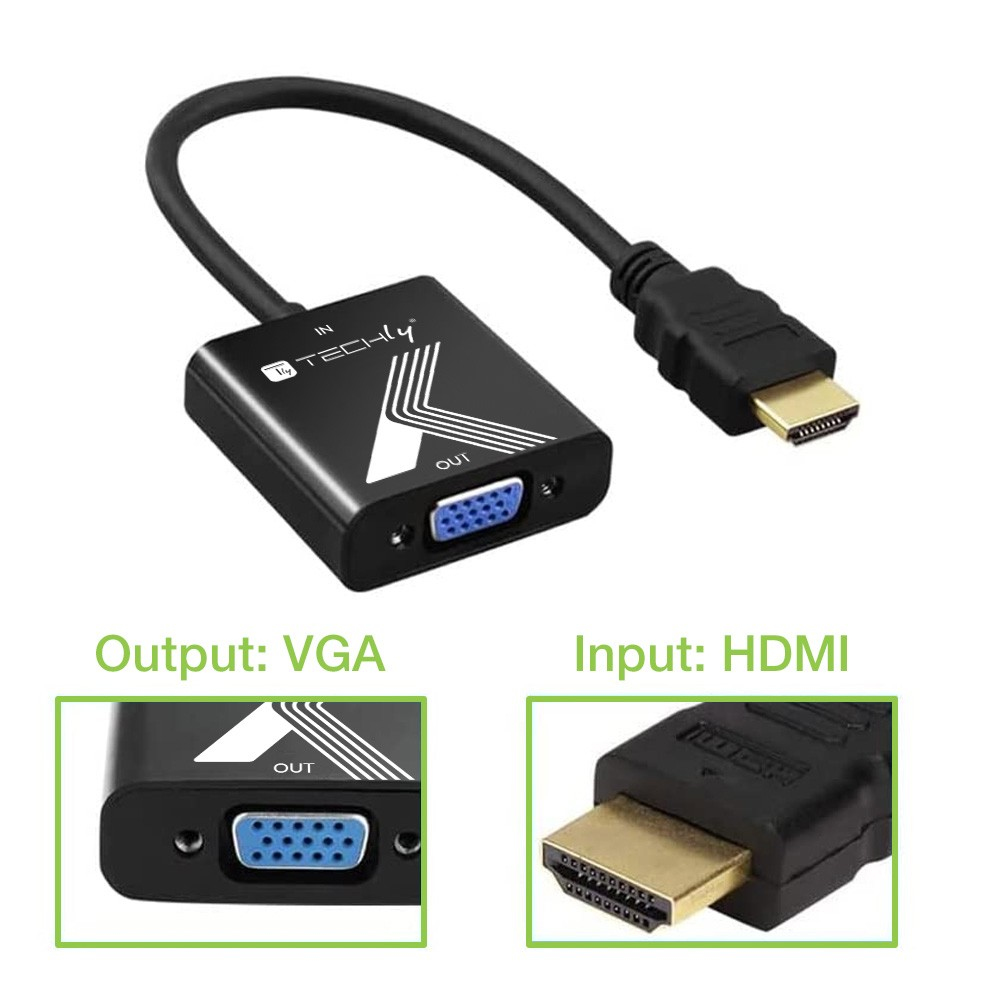

Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | HDMI |
| Output interface | VGA |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2 W |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |

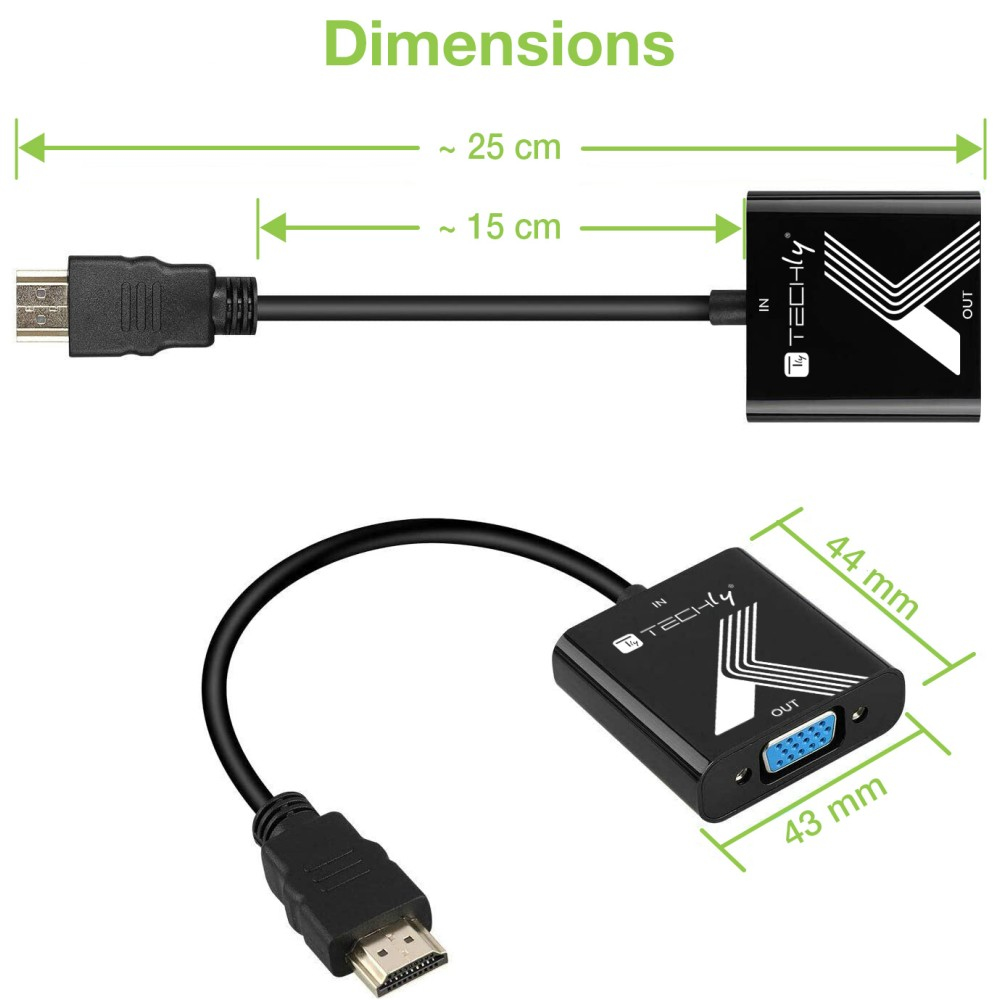

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 43 mm |
| Depth | 44 mm |
| Height | 15 mm |
| Weight | 68 g |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Chipset | AG6200 |
