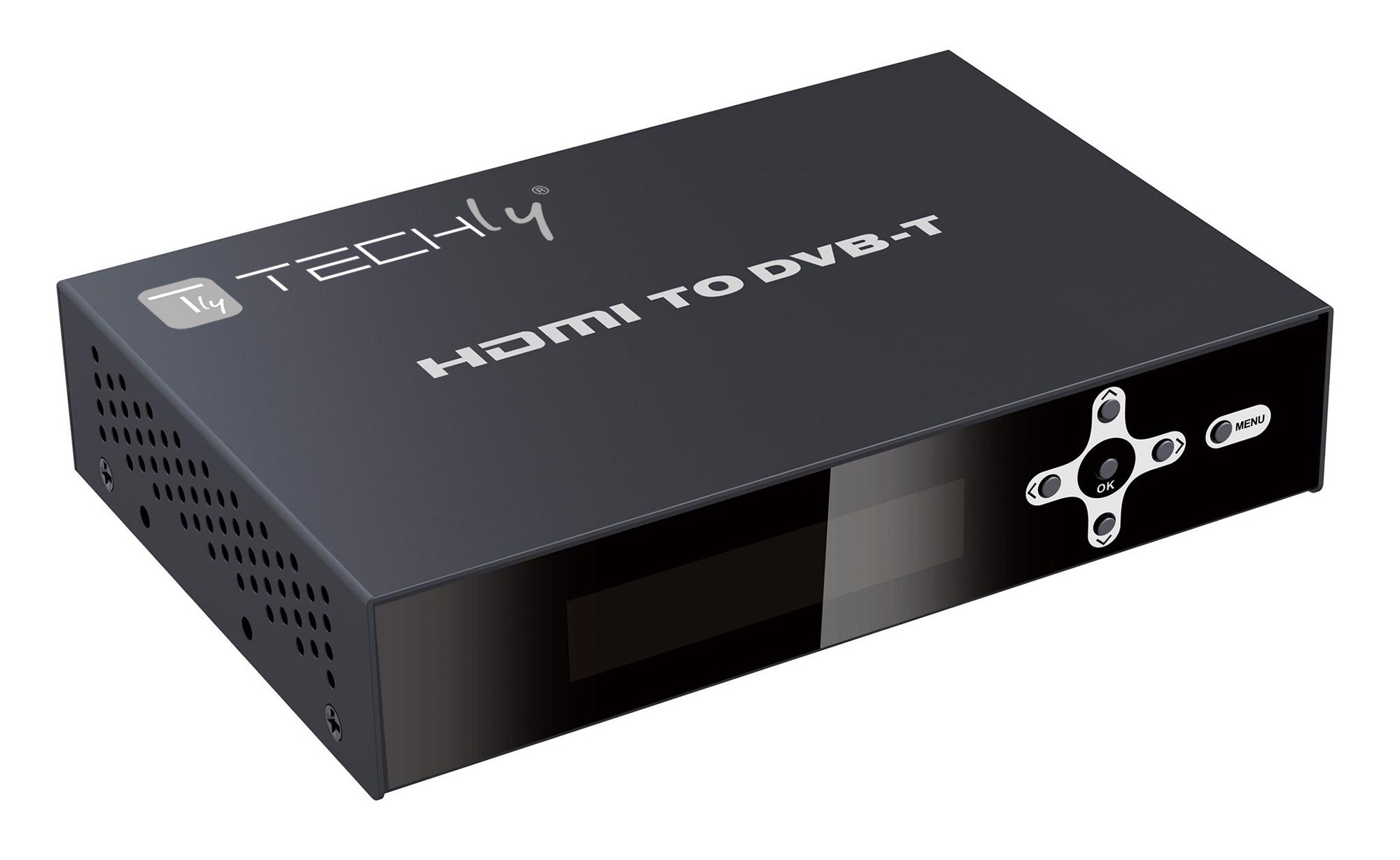

IDATA HDMI-DVB379
Model IDATA HDMI-DVB379EAN 8051128109054
29 specifications
- Weight850 g
- ColourBlack
- Converter typeActive video converter
- Maximum video resolution1920 x 1080 pixels
- Host interfaceHDMI/BNC
- Operating current1 A
Overview
- Weight
- 850 g
- Colour
- Black
- Converter type
- Active video converter
- Maximum video resolution
- 1920 x 1080 pixels
- Host interface
- HDMI/BNC
- Operating current
- 1 A
- Brand
- Techly
- Category
- Video Signal Converter
- Model
- IDATA HDMI-DVB379
- Part number
- IDATA HDMI-DVB379
- EAN / UPC
- 8051128109054
- Also known as
- Techly HDMI 1.3 to DVB-T Converter
Specifications
29 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Converter type | Active video converter |
| Product colour | Black |
| Housing material | Metal |
| Certification | CE |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Digital signal format system | DVB-T |
| HDCP | No |

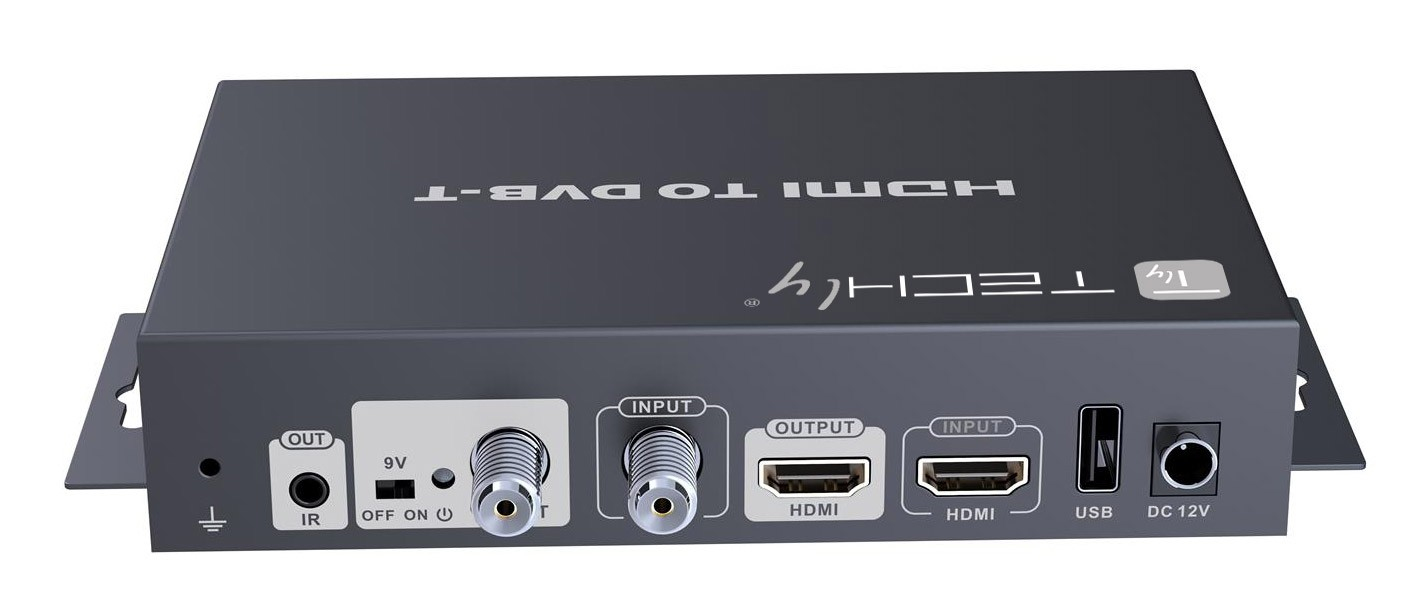

Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | HDMI/BNC |
| Output interface | HDMI/BNC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating current | 1 A |
| Operating voltage | 12 V |
| Power consumption (typical) | 7 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158 mm |
| Depth | 114.3 mm |
| Height | 33 mm |
| Weight | 850 g |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Screws included | Yes |
| Mounting bracket(s) included | Yes |
| Manual | Yes |
| Quantity | 1 |
Other features
| Specification | Value |
|---|---|
| Supported resolutions | 480i @ 60Hz, 480p @ 60Hz, 576i @ 60Hz, 576p @ 60Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz |
| Firmware upgradeable | Yes |
