HDMI Audio Extractor - 1080p
Model HD2AEAN 065030863308
25 specifications
- Weight38 g
- CertificationCE, FCC
- Maximum video resolution1920 x 1080 pixels
- Audio output channels2.1 channels
- Host interfaceHDMI
- USB poweredYes
Overview
- Weight
- 38 g
- Certification
- CE, FCC
- Maximum video resolution
- 1920 x 1080 pixels
- Audio output channels
- 2.1 channels
- Host interface
- HDMI
- USB powered
- Yes
- Brand
- StarTech.com
- Category
- Video Signal Converter
- Model
- HD2A
- Part number
- HD2A
- EAN / UPC
- 065030863308
- Also known as
- StarTech.com HDMI Audio Extractor - 1080p
Specifications
25 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Supported video modes | 480p, 720p, 1080p |
| HDCP | Yes |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 2.1 channels |
| Audio support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | HDMI |
| Output interface | HDMI |

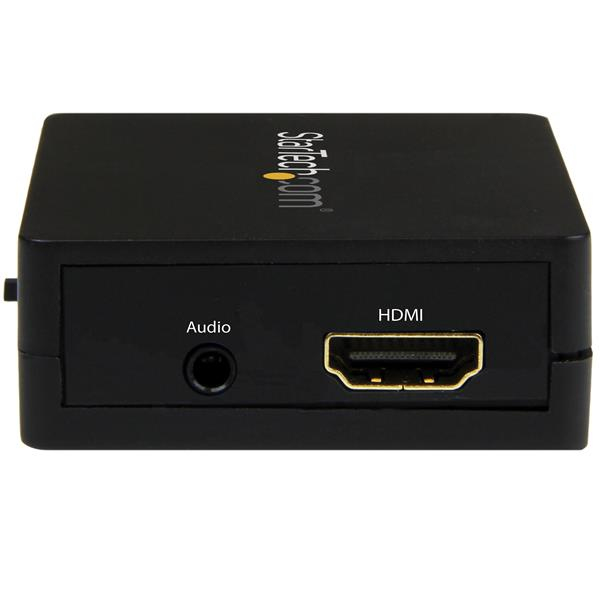

| Audio output | 3.5 mm |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 60 mm |
| Height | 20 mm |
| Weight | 38 g |
Packaging data
| Specification | Value |
|---|---|

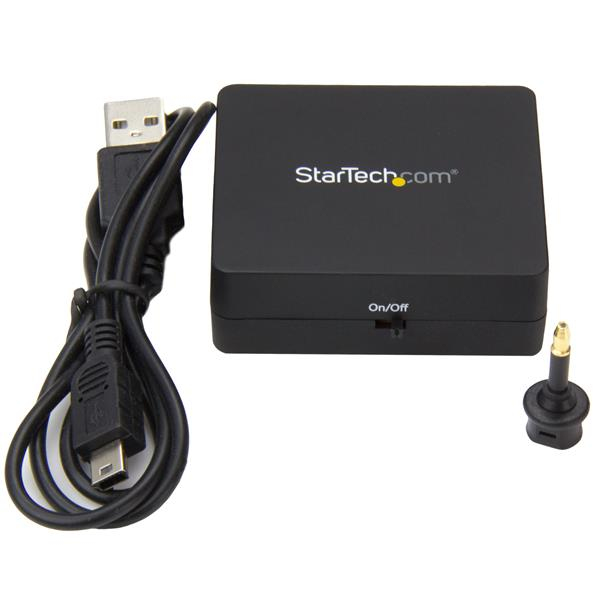

| Cables included | USB |
| Package width | 143 mm |
| Package depth | 173 mm |
| Package height | 33 mm |
| Package weight | 135 g |
Other features
| Specification | Value |
|---|---|
| Chipset | Explore-EP93Z3E |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 540 mm |
| Master (outer) case length | 556 mm |
| Master (outer) case height | 304 mm |
| Products per master (outer) case | 100 pc(s) |
