10.16.2101-BK video signal converter Active video converter
1920 x 1080 pixels
Model 10.16.2101-BKEAN 8433281006911
22 specifications
- ColourBlack
- Converter typeActive video converter
- Maximum video resolution1920 x 1080 pixels
- Host interfaceHDMI
- External power adapterYes
- Compliance certificatesRoHS
Overview
- Colour
- Black
- Converter type
- Active video converter
- Maximum video resolution
- 1920 x 1080 pixels
- Host interface
- HDMI
- External power adapter
- Yes
- Compliance certificates
- RoHS
- Brand
- Nanocable
- Category
- Video Signal Converter
- Model
- 10.16.2101-BK
- Part number
- 10.16.2101-BK
- EAN / UPC
- 8433281006911
- Also known as
- Nanocable 10.16.2101-BK video signal converter Active video converter 1920 x 1080 pixels
Specifications
22 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Converter type | Active video converter |
| Plug and Play | Yes |
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Video resolutions | 1600 x 1200,1920 x 1080 pixels |
| Supported video modes | 1080p |
| Bandwidth | 1.65 Gbit/s |
| Bandwidth | 165 MHz |
| HDCP | Yes |

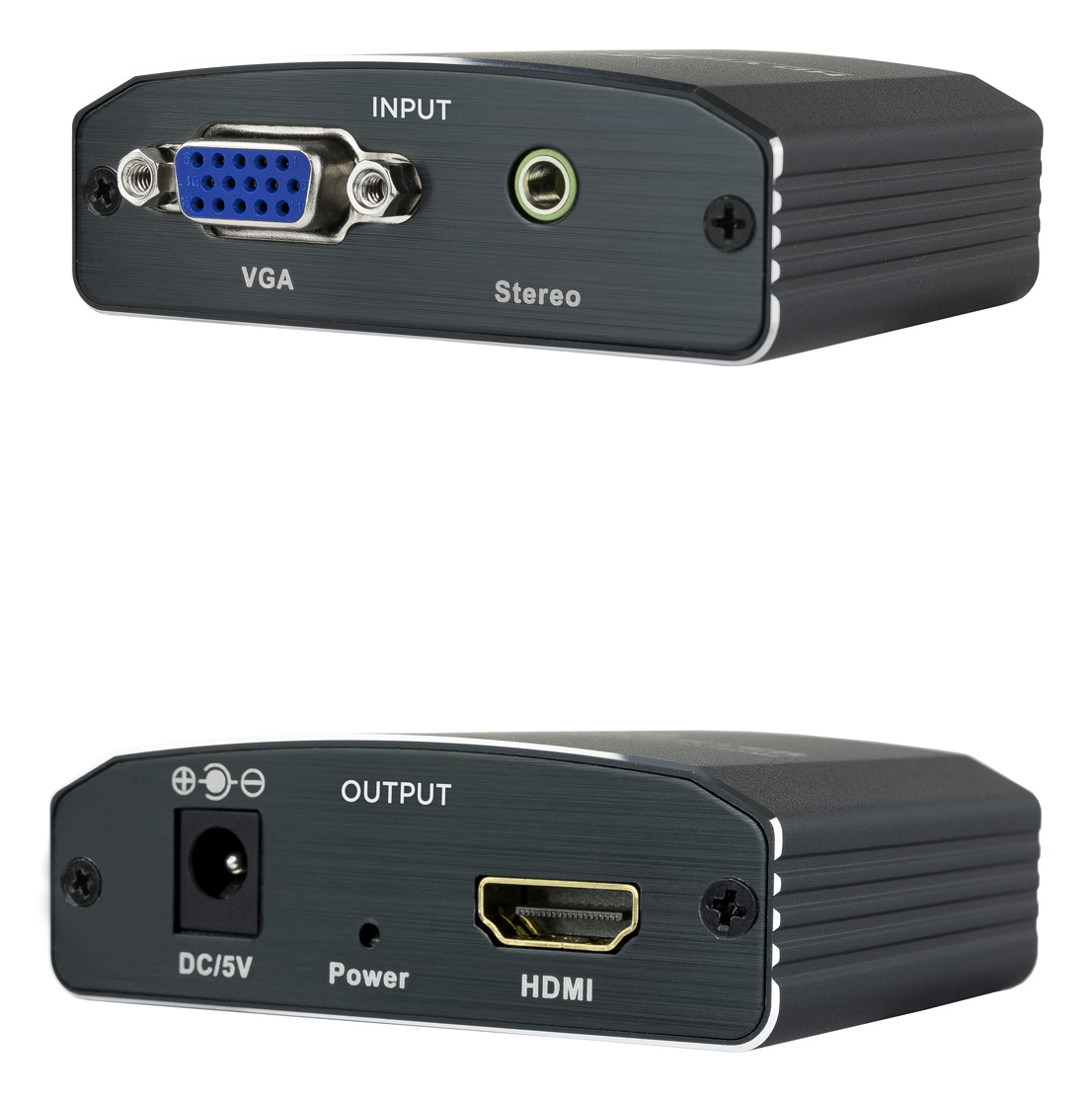

Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | HDMI |
| Output interface | SVGA + 3.5 mm |
| 3.5 mm connector | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Input voltage | 5 V |
| Operating current | 1 A |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88 mm |
| Depth | 68 mm |
| Height | 25 mm |
Packaging data
| Specification | Value |
|---|---|

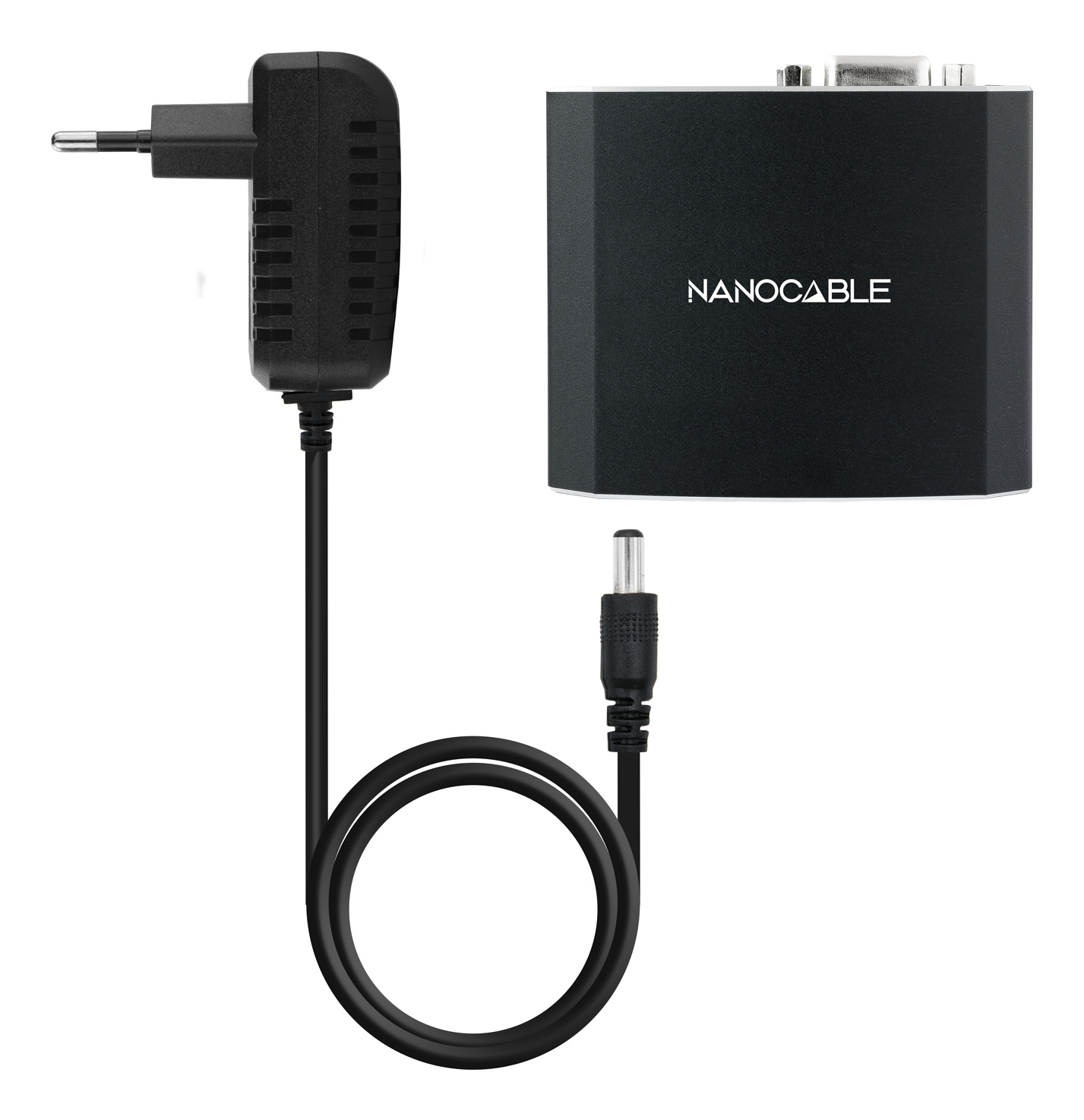

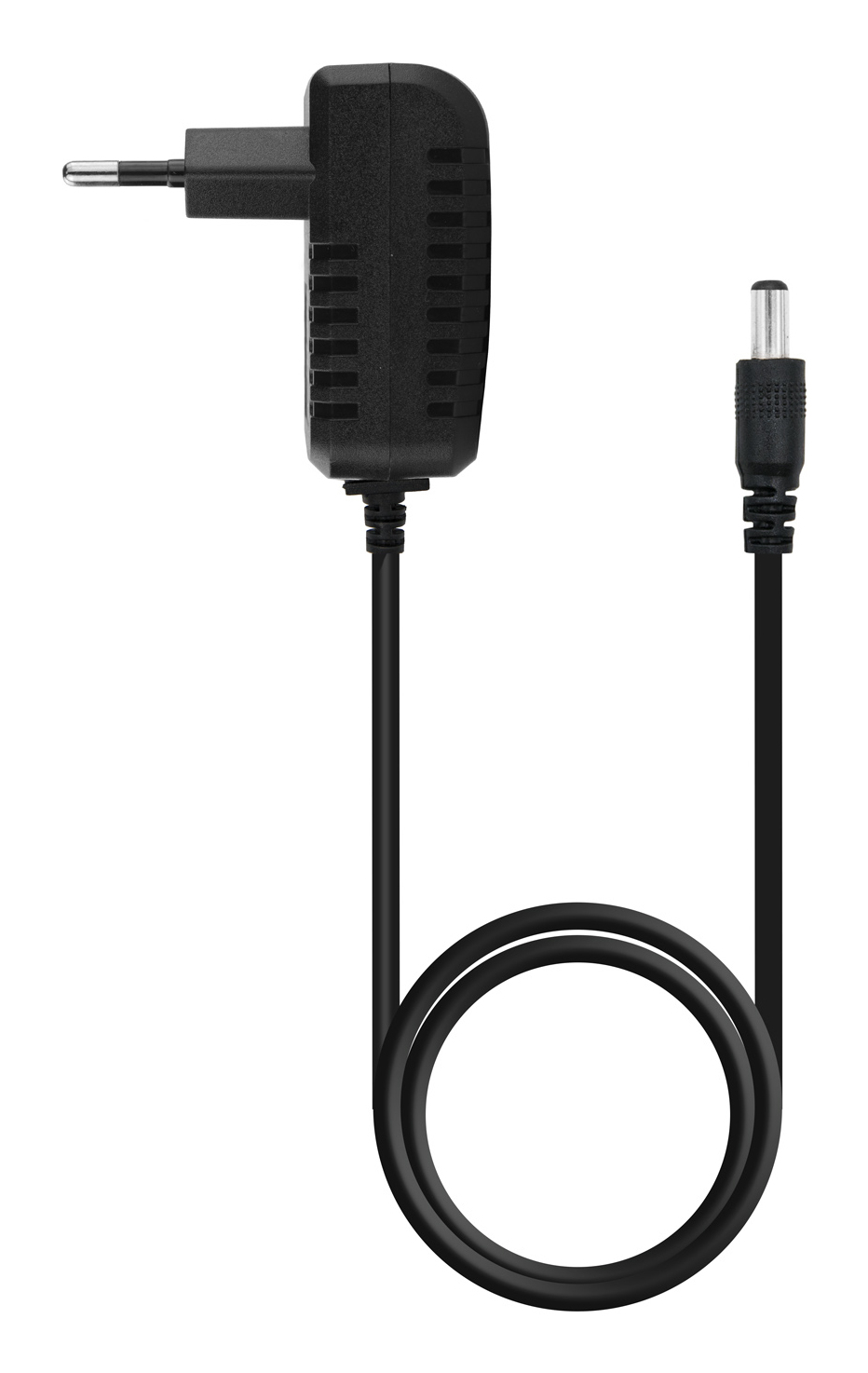

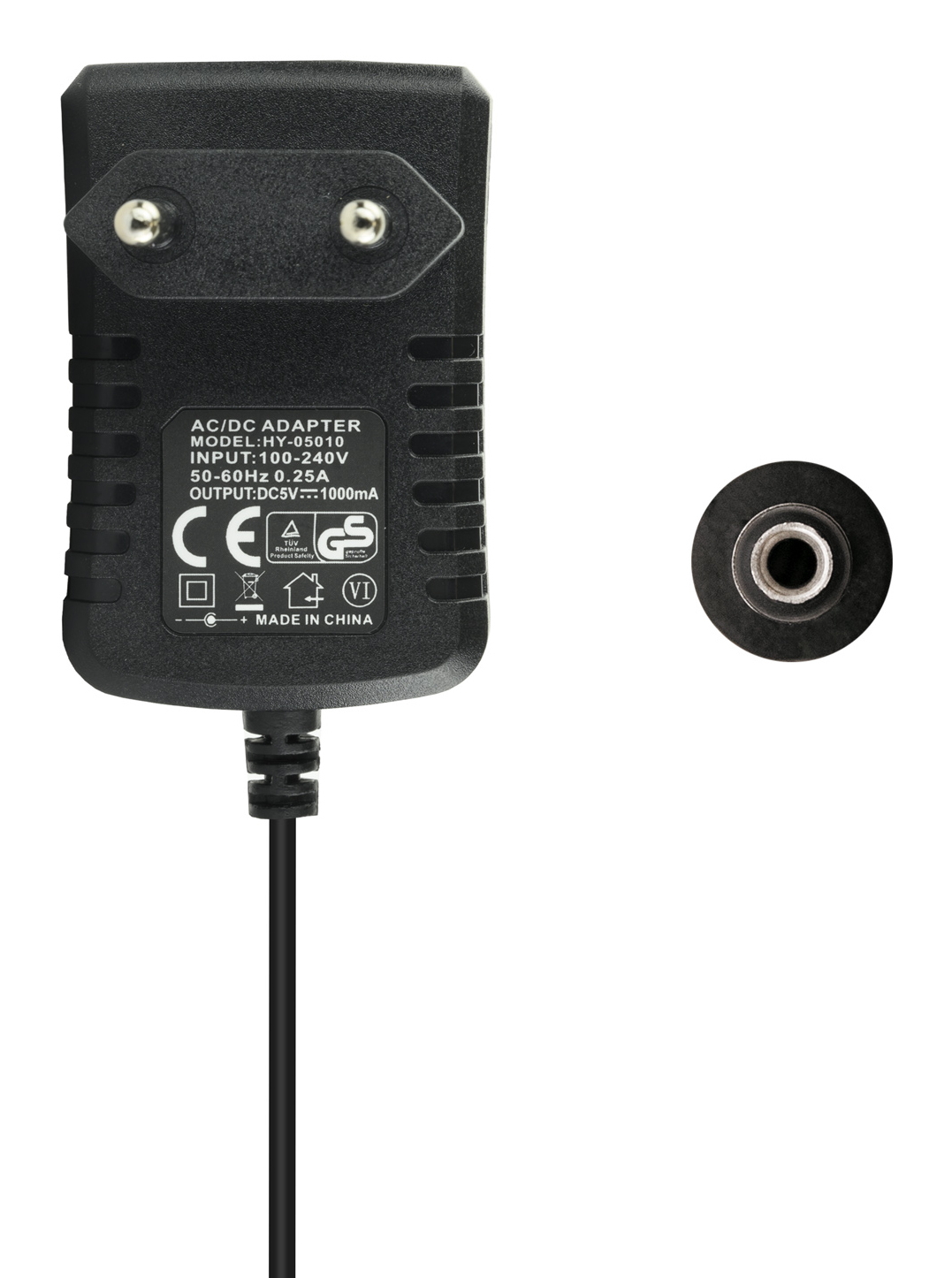

| AC adapter included | Yes |
| Power supply included | Yes |
