Connect HV15 - HDMI to VGA adapter
Model 25008266EAN 8718164532665
22 specifications
- Weight40 g
- ColourBlack
- InternalNo
- Maximum video resolution1920 x 1080 pixels
- Audio output channels2.0 channels
- Host interfaceHDMI
Overview
- Weight
- 40 g
- Colour
- Black
- Internal
- No
- Maximum video resolution
- 1920 x 1080 pixels
- Audio output channels
- 2.0 channels
- Host interface
- HDMI
- Brand
- Marmitek
- Category
- Video Signal Converter
- Model
- 25008266
- Part number
- 25008266
- EAN / UPC
- 8718164532665
- Also known as
- Marmitek Connect HV15 - HDMI to VGA adapter
Specifications
22 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Internal | No |
| Plug and Play | Yes |
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Video resolutions | 800 x 600,1280 x 1024,1280 x 720,1280 x 768,1280 x 800,1280 x 960,1600 x 1200,1680 x 1050,1920 x 1080 |
| Supported video modes | 576p, 1080i, 480p, 1080p, 720p |
| Maximum refresh rate | 60 Hz |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 2.0 channels |

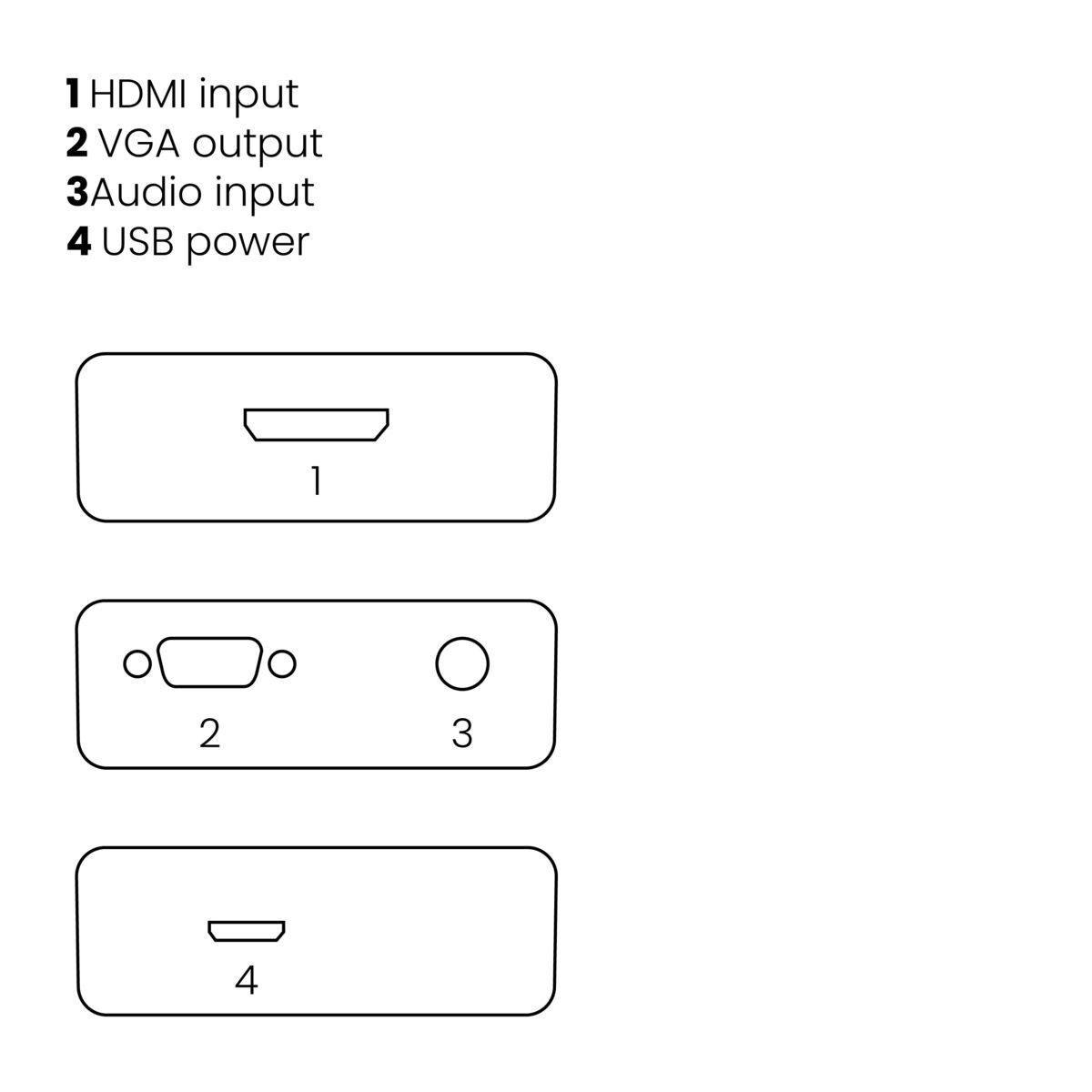

Ports & interfaces
| Specification | Value |
|---|---|

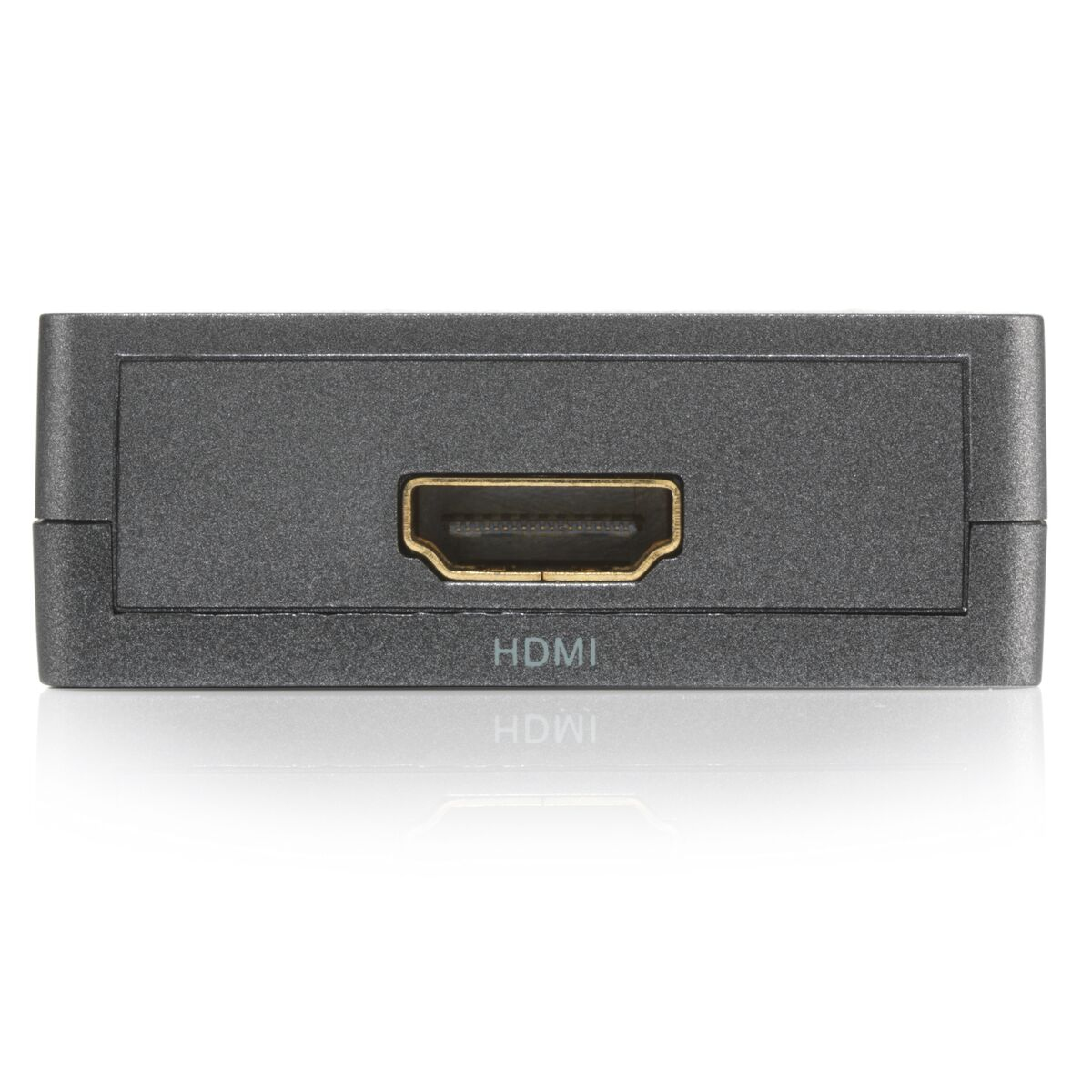

| Host interface | HDMI |

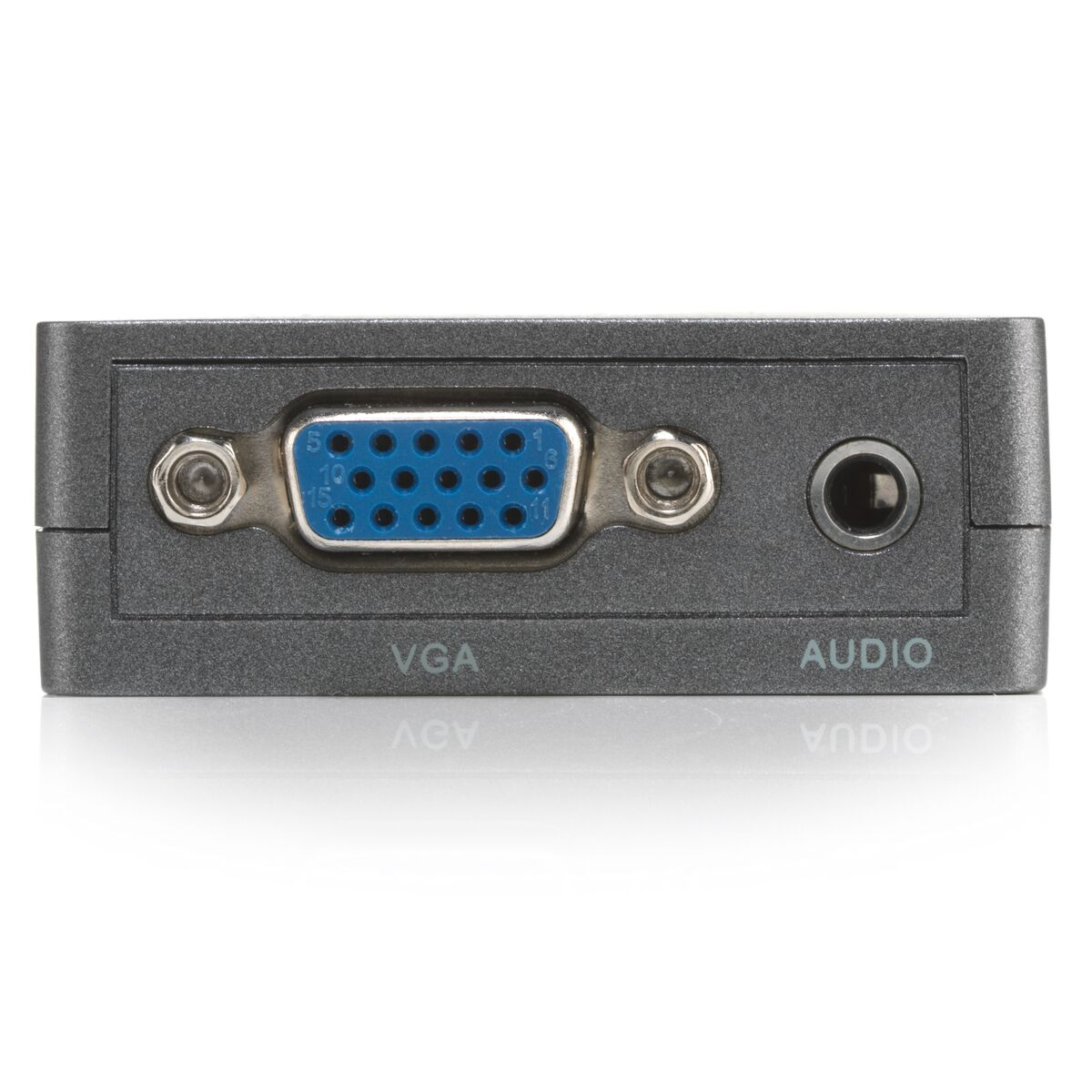

| Output interface | VGA/3.5mm |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 66 mm |
| Depth | 55 mm |
| Height | 20 mm |
| Weight | 40 g |
Packaging data
| Specification | Value |
|---|---|

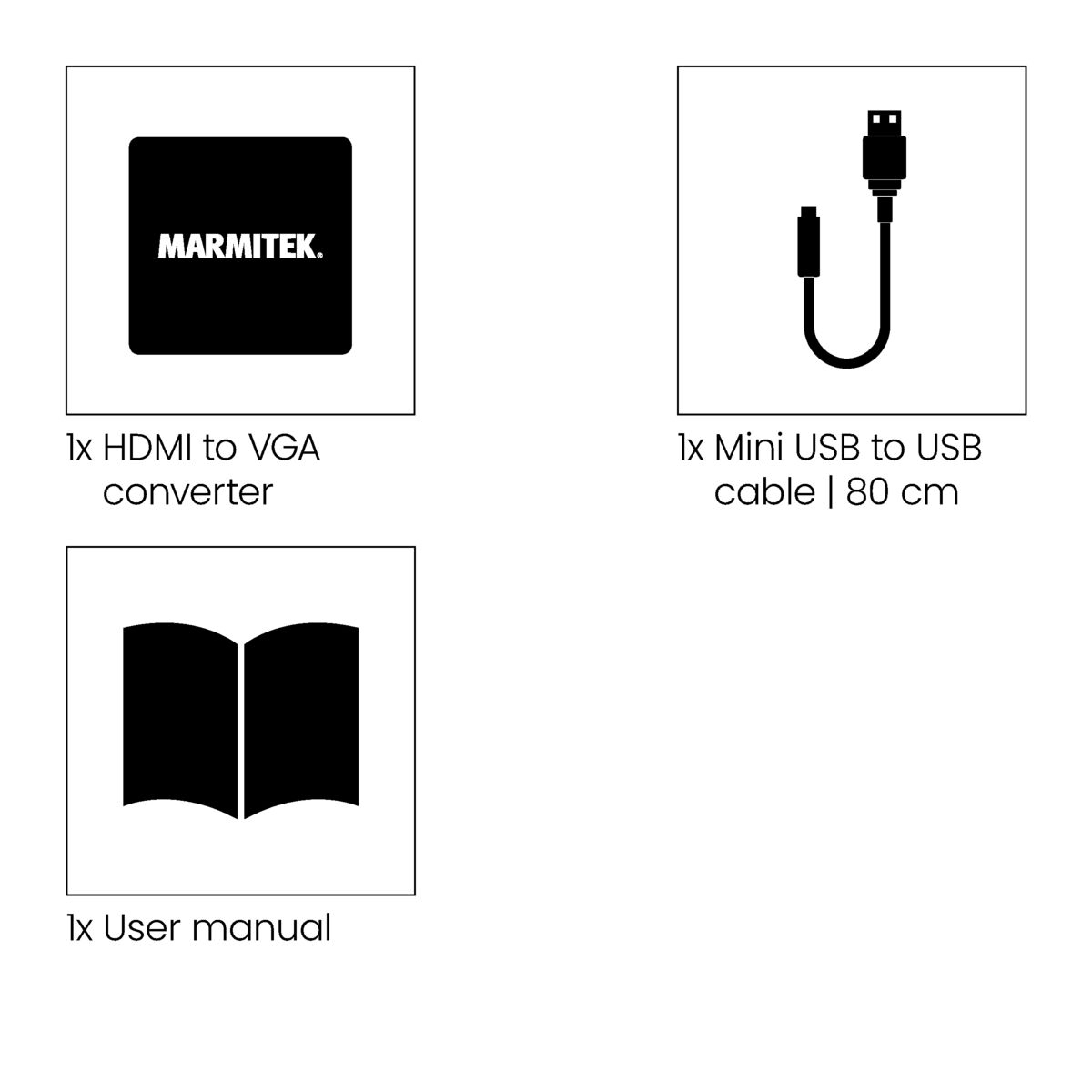

| Cables included | Mini-USB |
| Manual | Yes |
| Package width | 130 mm |
| Package depth | 70 mm |
| Package height | 155 mm |
