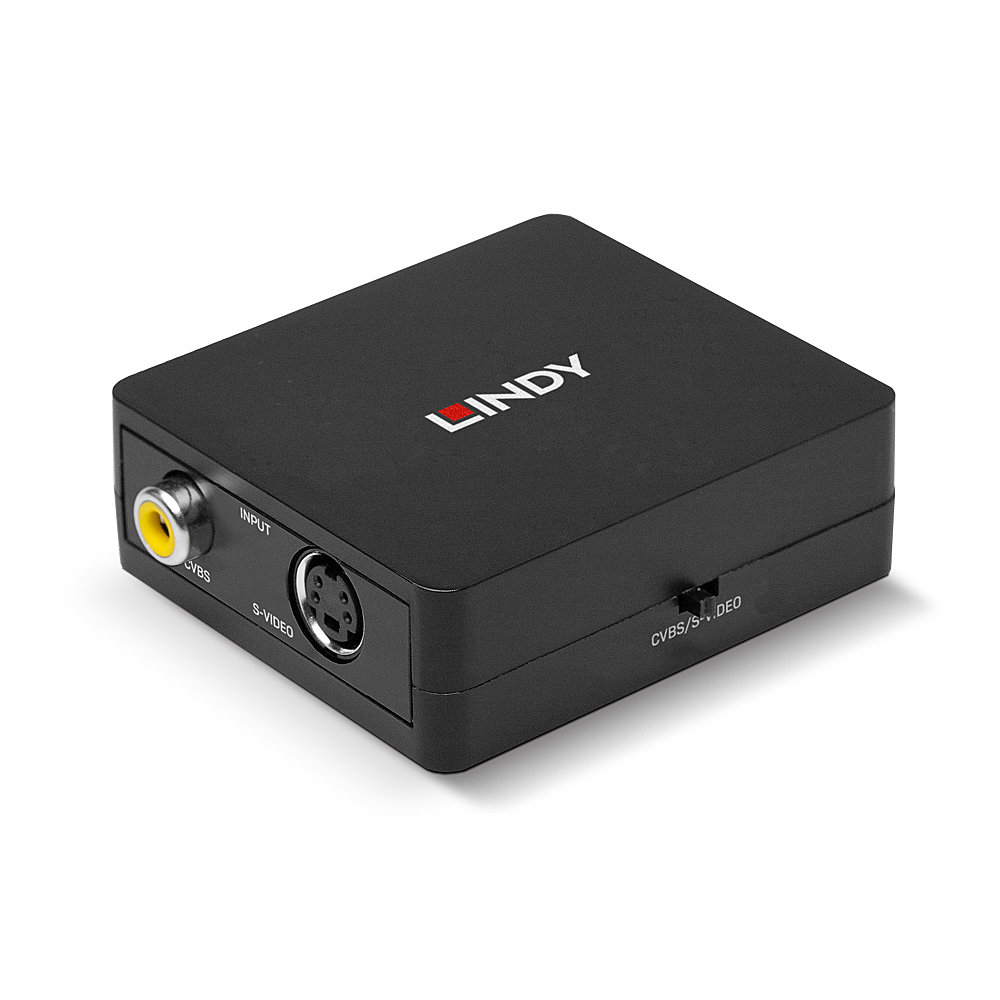

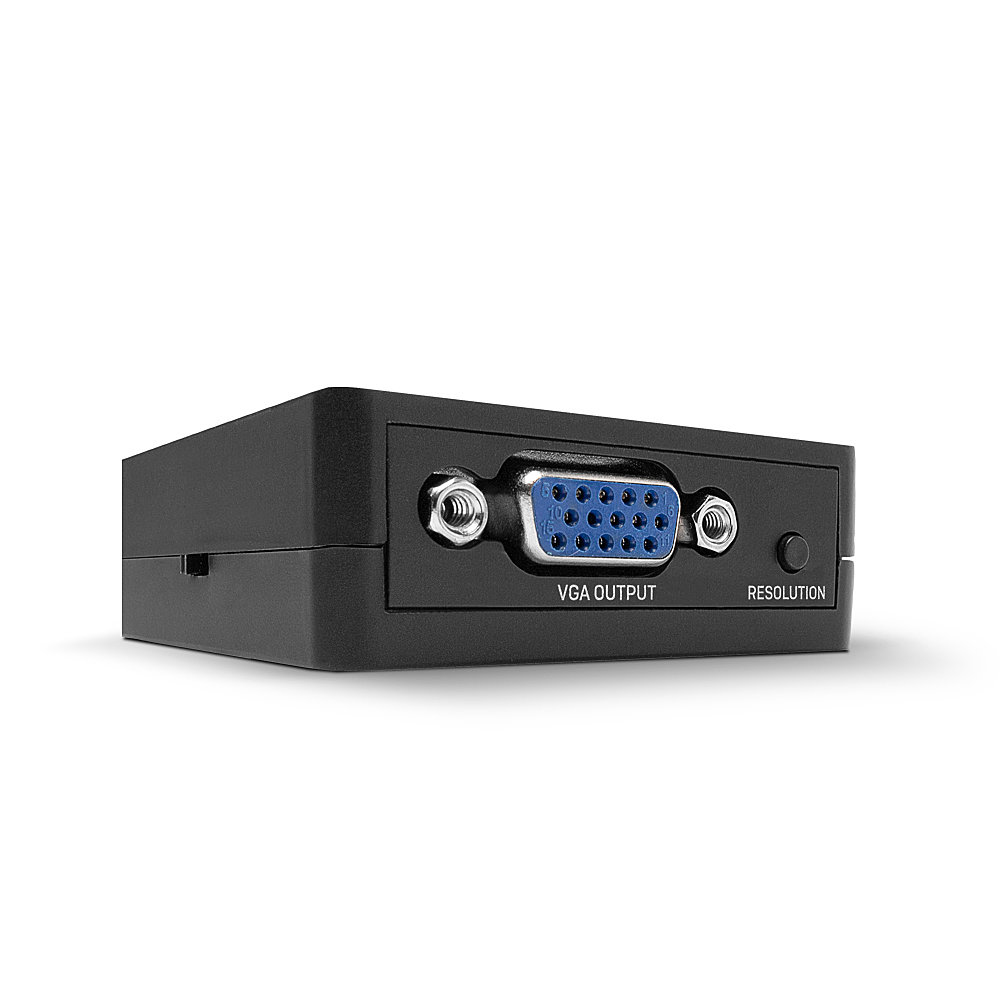

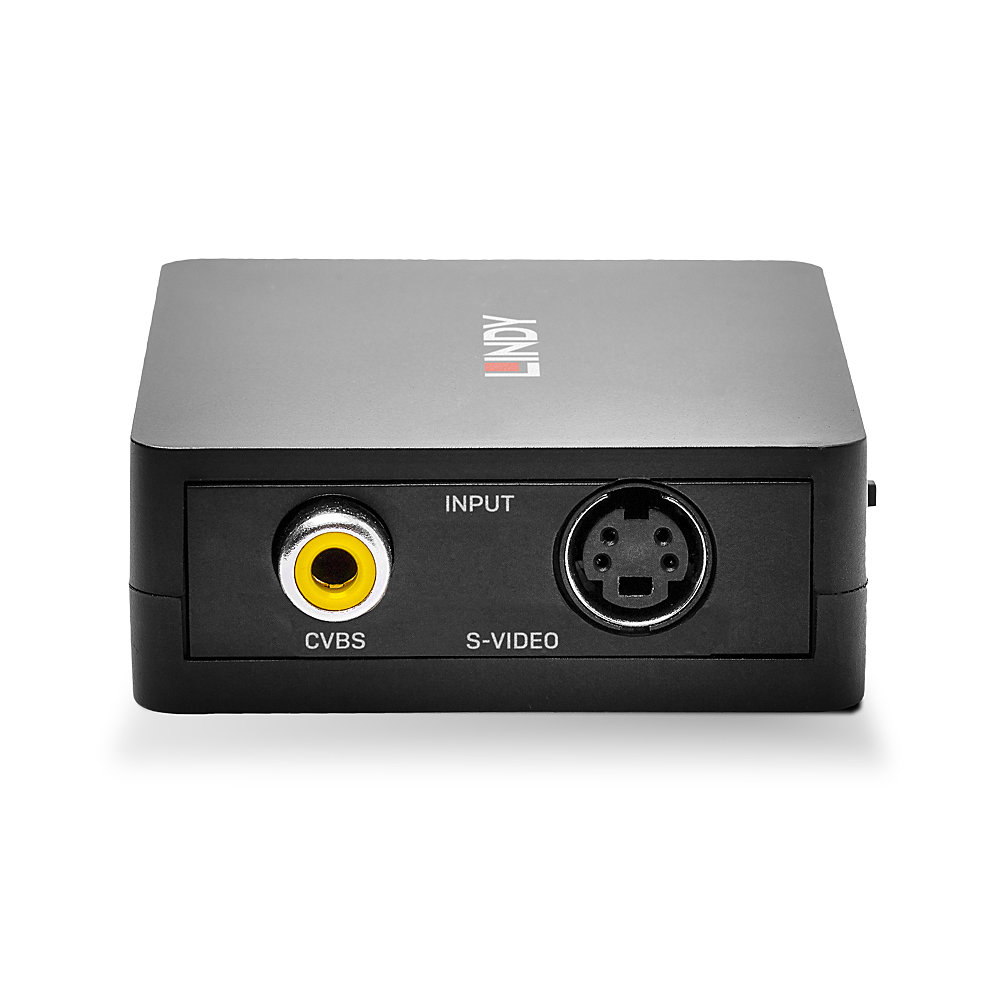

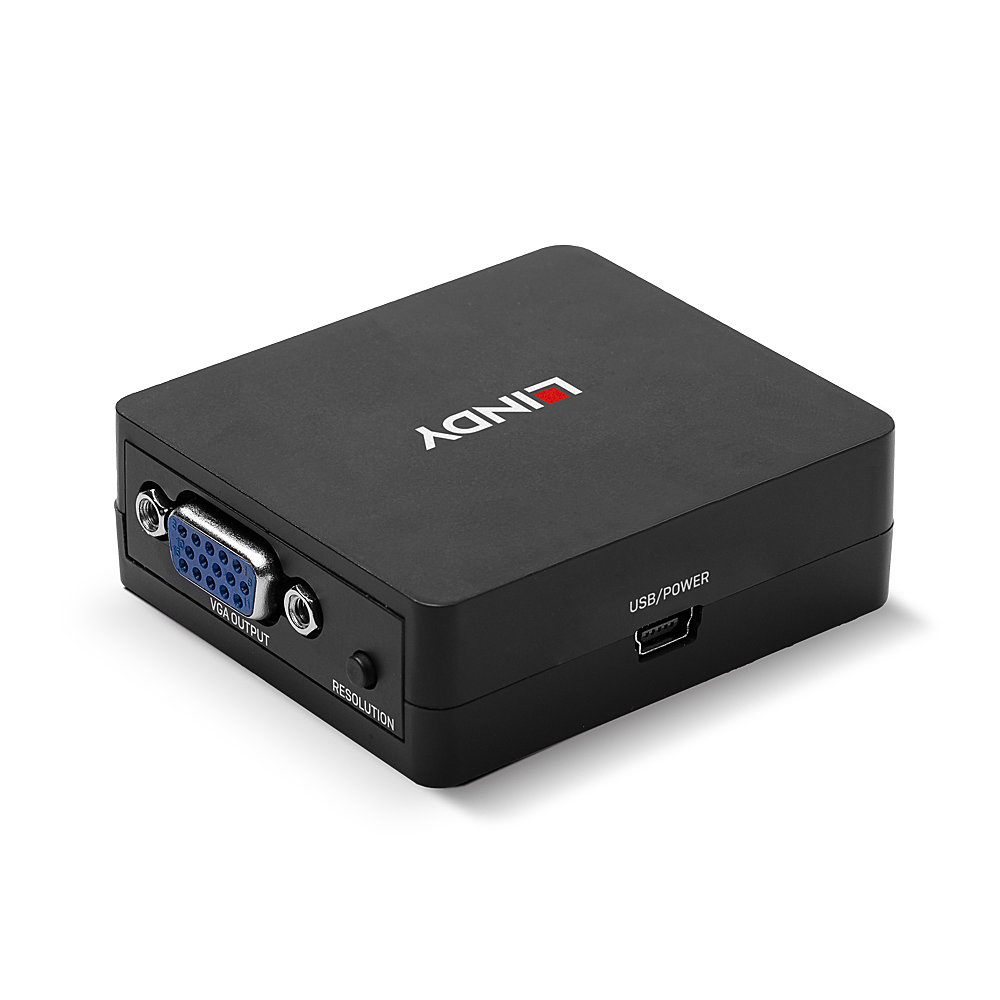

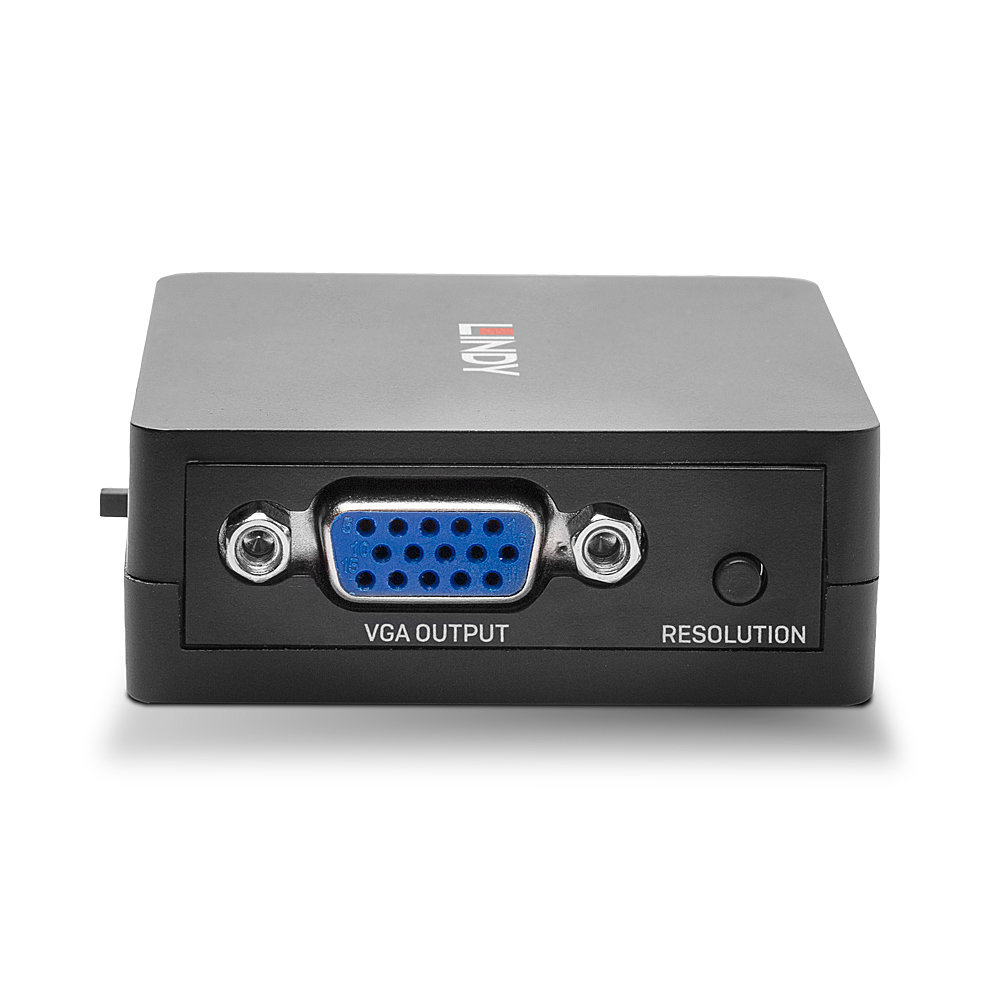

Composite / S-Video to VGA Converter
Model 32621EAN 4002888326216
20 specifications
- Weight49 g
- ColourBlack
- Maximum video resolution1920 x 1200 pixels
- Host interfaceComposite + S-Video
- Power consumption (typical)5 W
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 49 g
- Colour
- Black
- Maximum video resolution
- 1920 x 1200 pixels
- Host interface
- Composite + S-Video
- Power consumption (typical)
- 5 W
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- Lindy
- Category
- Video Signal Converter
- Model
- 32621
- Part number
- 32621
- EAN / UPC
- 4002888326216
- Also known as
- Lindy Composite / S-Video to VGA Converter
Specifications
20 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1200 pixels |
| Analog signal format system | NTSC, PAL |
| Maximum refresh rate | 60 Hz |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | Composite + S-Video |
| Output interface | VGA |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5 W |
| USB powered | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60.5 mm |
| Depth | 54 mm |
| Height | 20 mm |
| Weight | 49 g |
Packaging data
| Specification | Value |
|---|---|
| Cables included | USB |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
