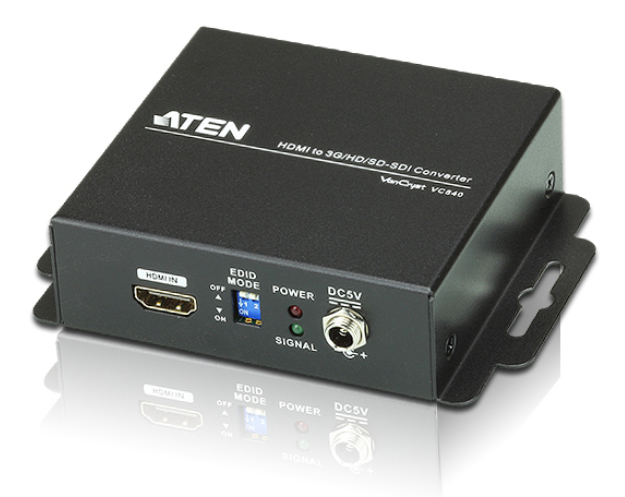

VC840-AT-E video signal converter
Model VC840-AT-E
21 specifications
- Weight290 g
- ColourBlack
- Extended display identification data (EDID)Yes
- Supported video modes720p, 1080i, 1080p
- Host interfaceHDMI
- Power consumption (typical)3.225 W
Overview
- Weight
- 290 g
- Colour
- Black
- Extended display identification data (EDID)
- Yes
- Supported video modes
- 720p, 1080i, 1080p
- Host interface
- HDMI
- Power consumption (typical)
- 3.225 W
- Brand
- ATEN
- Category
- Video Signal Converter
- Model
- VC840-AT-E
- Part number
- VC840-AT-E
- Also known as
- ATEN VC840-AT-E video signal converter
Specifications
21 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Extended display identification data (EDID) | Yes |
| Product colour | Black |
| Housing material | Metal |
Video
| Specification | Value |
|---|---|
| Supported video modes | 720p, 1080i, 1080p |
| Bandwidth | 148.5 MHz |
| Bandwidth | 2.97 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | HDMI |

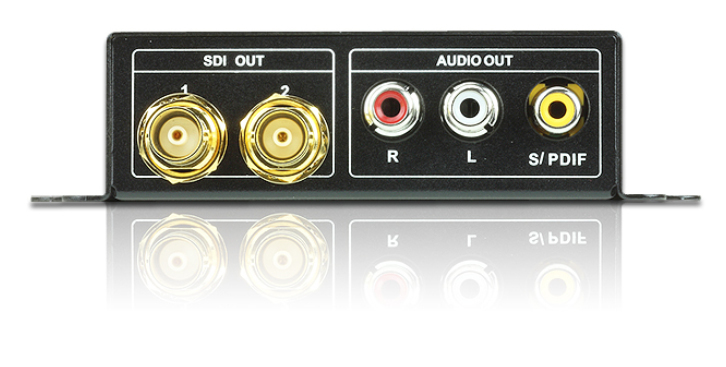

| Output interface | BNC |
| Audio output | Analog 2 x RCA, Digital 1 x RCA |
| Video in | HDMI |
| Video out | 2 x BNC |
| BNC video output | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 3.225 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 107 mm |
| Depth | 122 mm |
| Height | 30.4 mm |
| Weight | 290 g |
