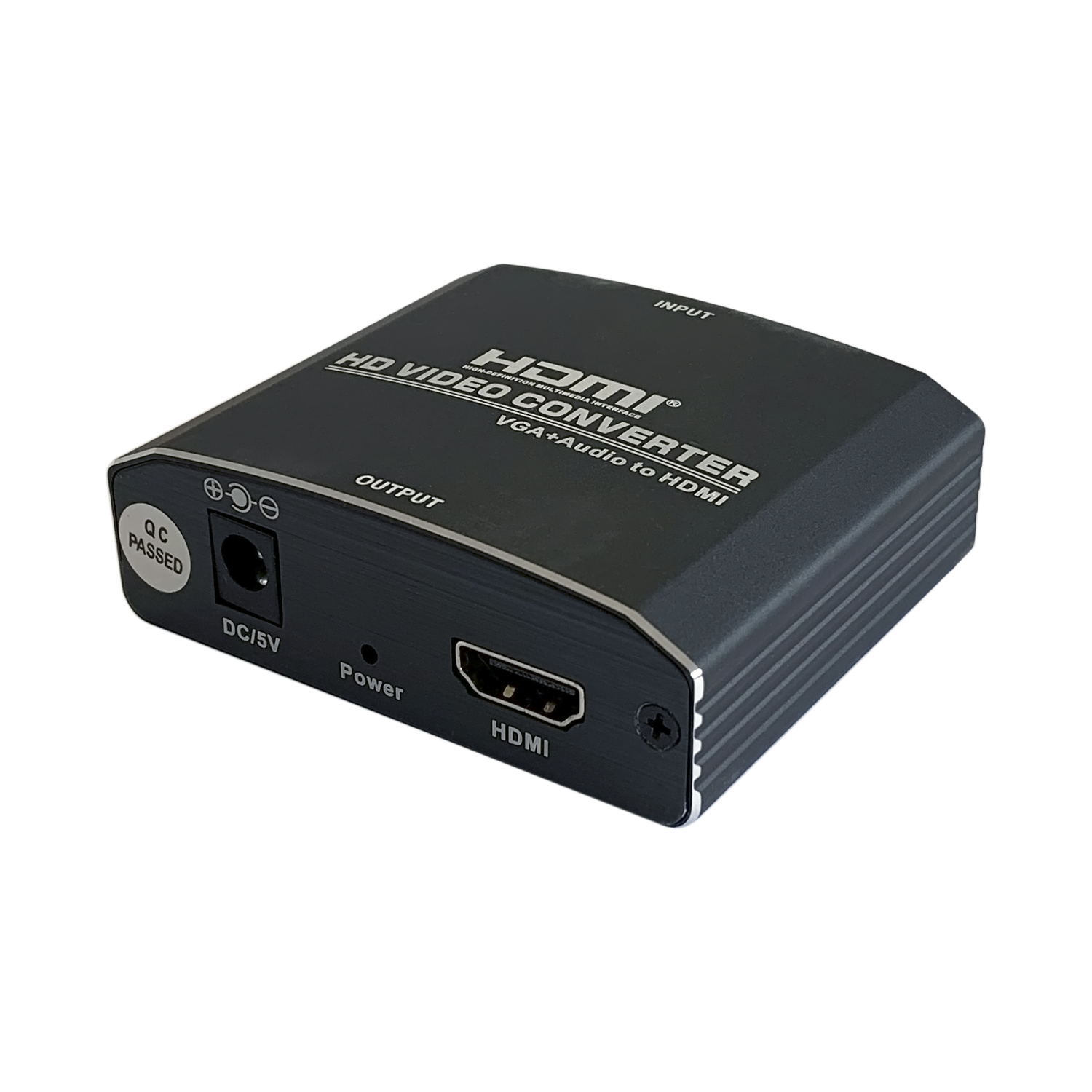

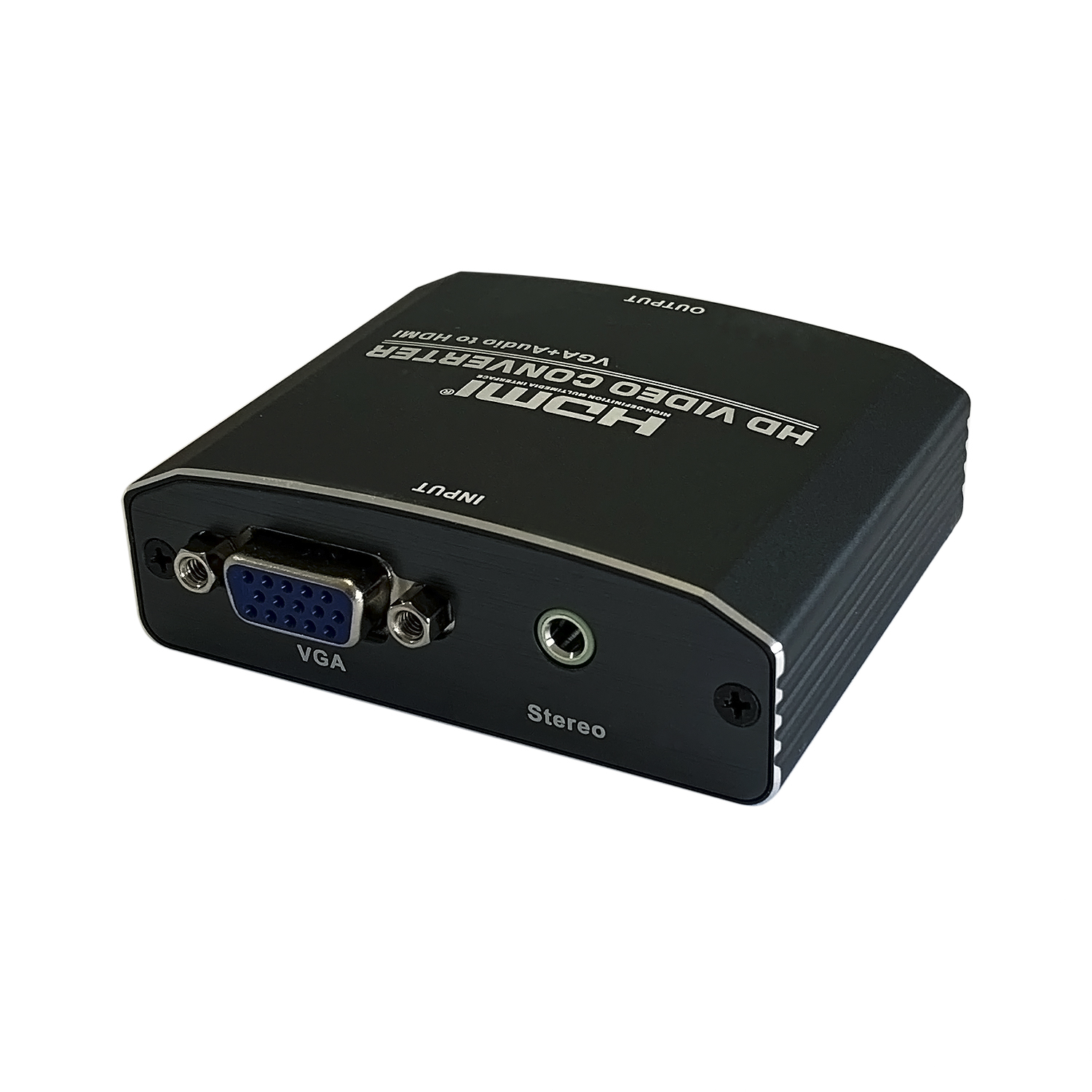

A115-0386 video signal converter Scaler video converter
1600 x 1200 pixels
Model A115-0386EAN 8436574704075
31 specifications
- ColourBlack
- Converter typeScaler video converter
- Maximum video resolution1600 x 1200 pixels
- Host interfaceVGA (D-Sub) + 3.5 mm (1/8")
- External power adapterYes
- Compliance certificatesRoHS
Overview
- Colour
- Black
- Converter type
- Scaler video converter
- Maximum video resolution
- 1600 x 1200 pixels
- Host interface
- VGA (D-Sub) + 3.5 mm (1/8")
- External power adapter
- Yes
- Compliance certificates
- RoHS
- Brand
- AISENS
- Category
- Video Signal Converter
- Model
- A115-0386
- Part number
- A115-0386
- EAN / UPC
- 8436574704075
- Also known as
- AISENS A115-0386 video signal converter Scaler video converter 1600 x 1200 pixels
Specifications
31 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Converter type | Scaler video converter |
| Plug and Play | Yes |
| LED indicators | Power |
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1600 x 1200 pixels |
| Supported video modes | 1080p |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 6.75 Gbit/s |
| HDCP | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | VGA (D-Sub) + 3.5 mm (1/8") |
| Output interface | HDMI |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Operating current | 1 A |
| Operating voltage | 5 V |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88 mm |
| Depth | 68 mm |
| Height | 25 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity | 1 |
| Package width | 100 mm |
| Package depth | 100 mm |
| Package height | 90 mm |
| Package volume | 900 cm³ |
| Package weight | 225 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 406 mm |
| Master (outer) case length | 535 mm |
| Master (outer) case height | 362 mm |
| Master (outer) case gross weight | 18.2 kg |
| Master (outer) case volume | 78630.02 cm³ |
| Products per master (outer) case | 80 pc(s) |
