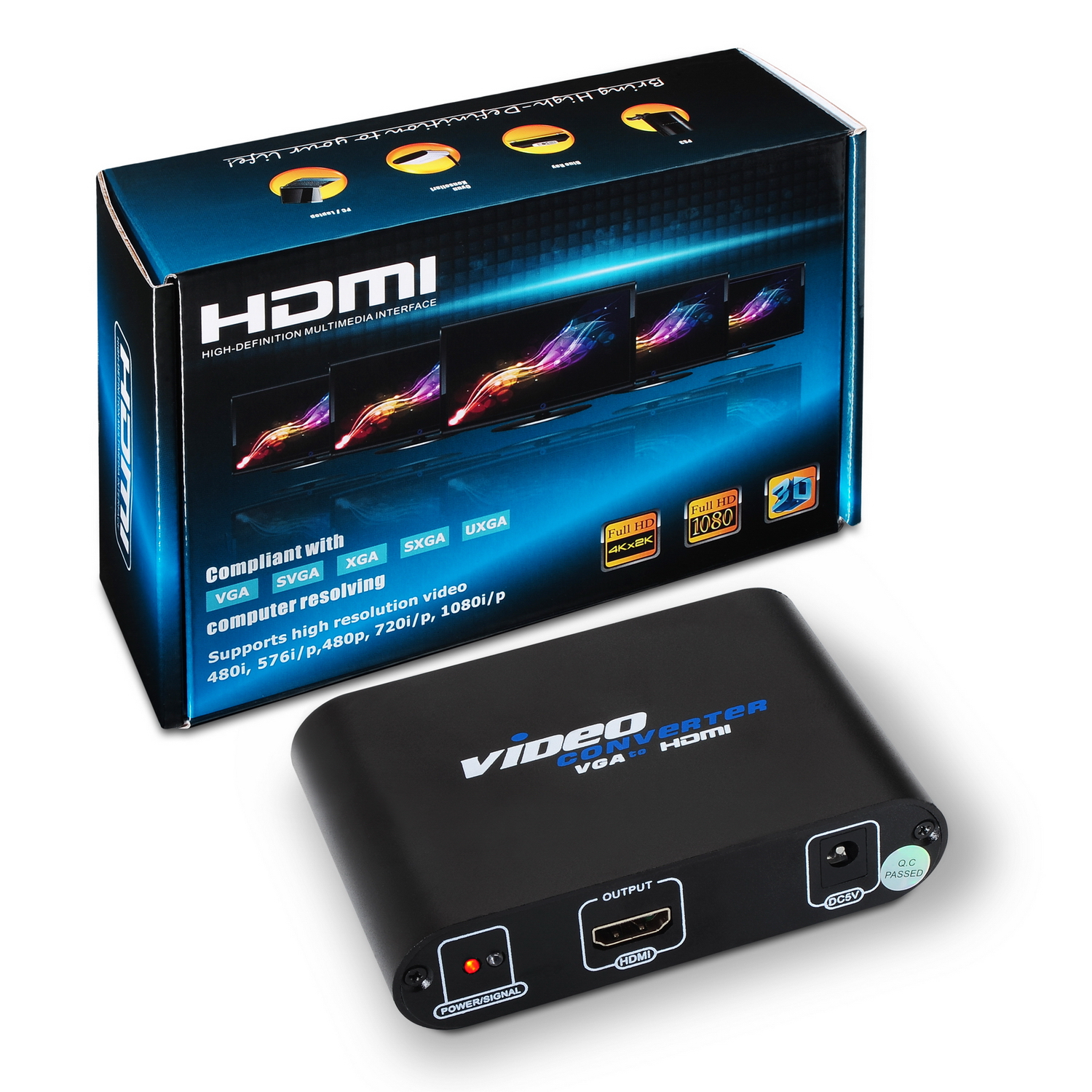

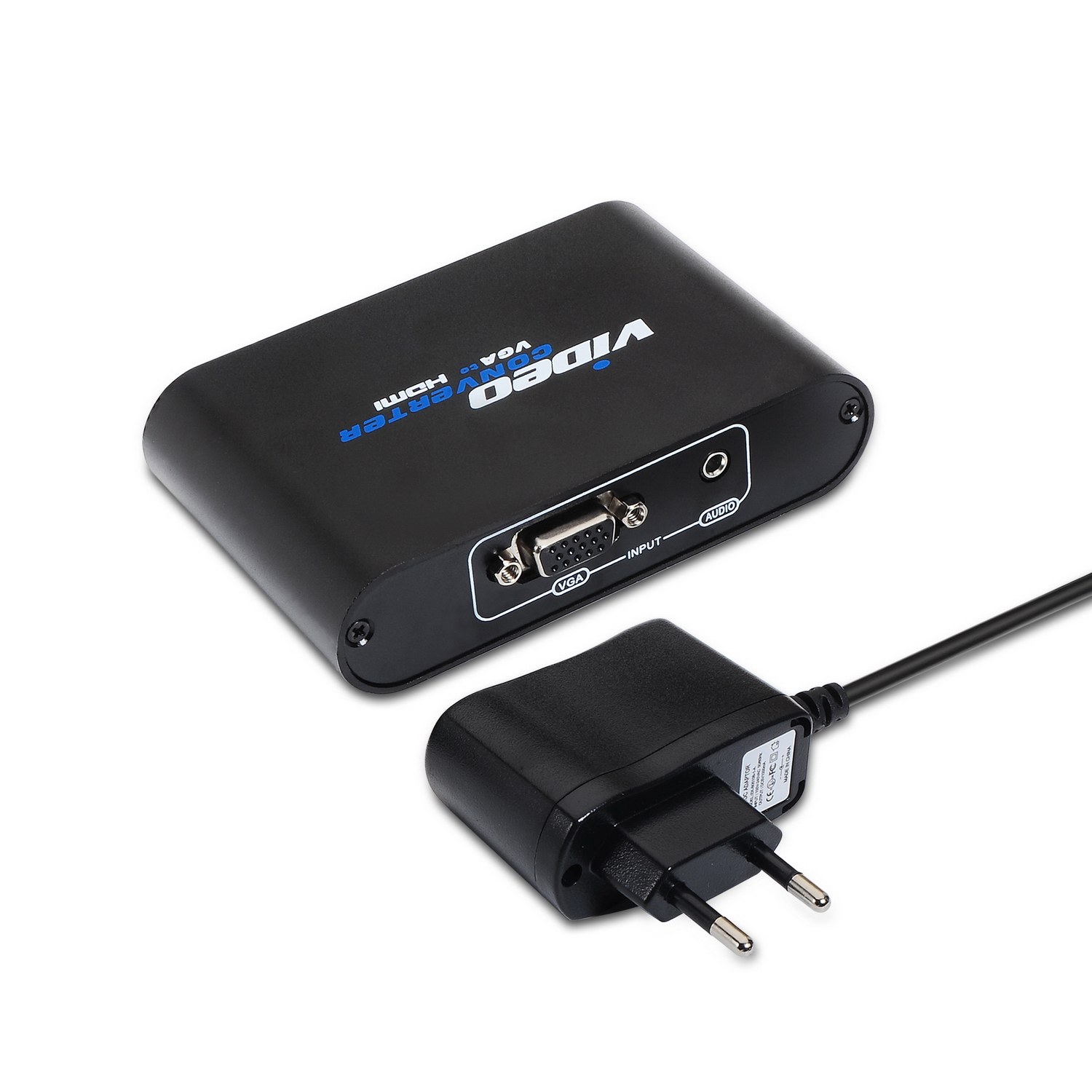

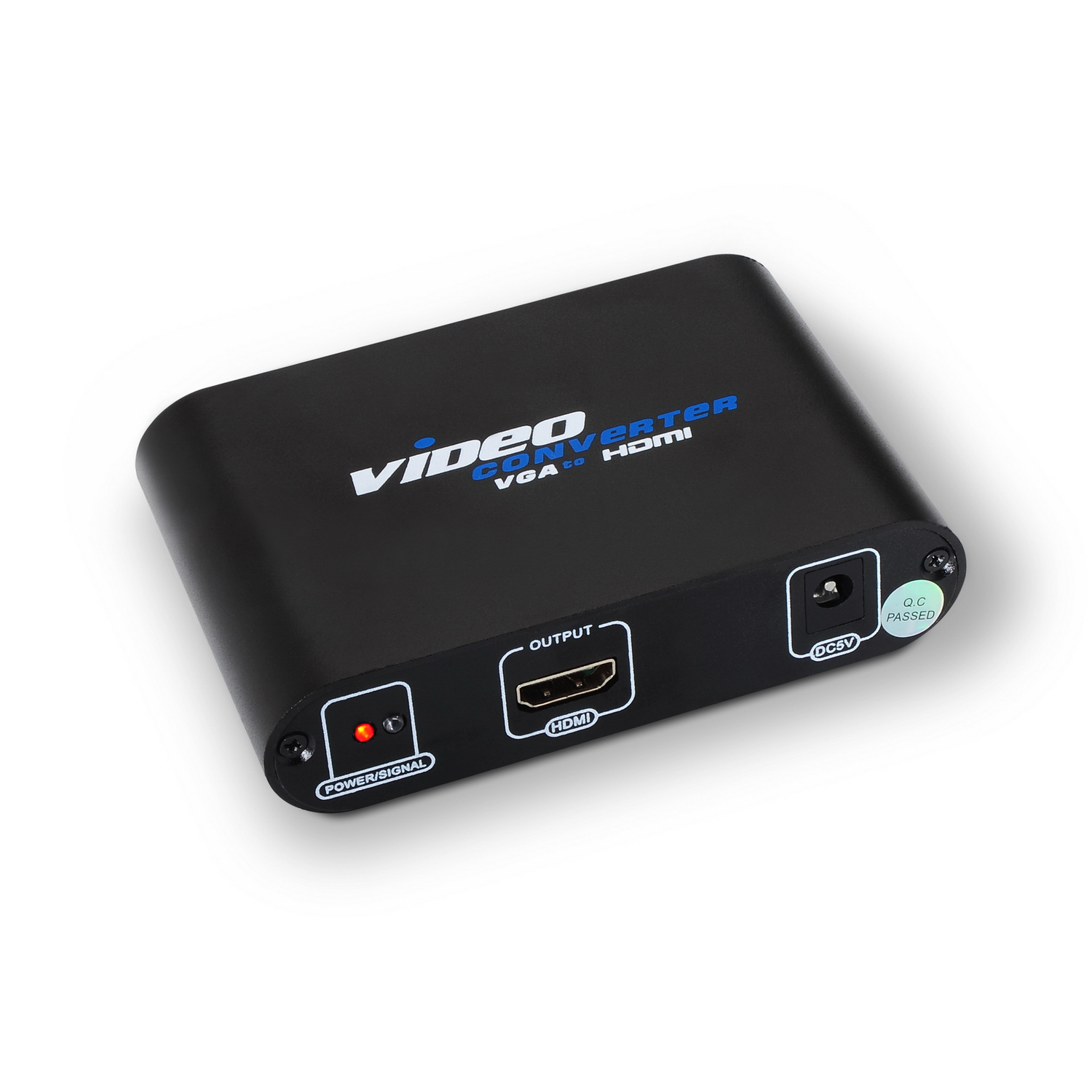

A115-0083 video signal converter Active video converter
1920 x 1080 pixels
Model A115-0083EAN 8436574700824
23 specifications
- ColourBlack
- Converter typeActive video converter
- Maximum video resolution1920 x 1080 pixels
- Host interfaceVGA (D-Sub) + 3.5 mm (1/8")
- Compliance certificatesRoHS
Overview
- Colour
- Black
- Converter type
- Active video converter
- Maximum video resolution
- 1920 x 1080 pixels
- Host interface
- VGA (D-Sub) + 3.5 mm (1/8")
- Compliance certificates
- RoHS
- Brand
- AISENS
- Category
- Video Signal Converter
- Model
- A115-0083
- Part number
- A115-0083
- EAN / UPC
- 8436574700824
- Also known as
- AISENS A115-0083 video signal converter Active video converter 1920 x 1080 pixels
Specifications
23 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Converter type | Active video converter |
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Video resolutions | 1600 x 1200,1920 x 1080 pixels |
| Supported video modes | 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p |
| Supported aspect ratios | 4:3, 16:9 |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 1.65 Gbit/s |
| Bandwidth | 165 MHz |
| HDCP | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | VGA (D-Sub) + 3.5 mm (1/8") |
| Output interface | HDMI |
| 3.5 mm connector | Yes |
| DC-in jack | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Quantity | 1 |
| Package width | 55 mm |
| Package depth | 115 mm |
| Package height | 170 mm |
| Package volume | 1075 cm³ |
| Package weight | 288 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case gross weight | 11.5 kg |
| Products per master (outer) case | 40 pc(s) |
