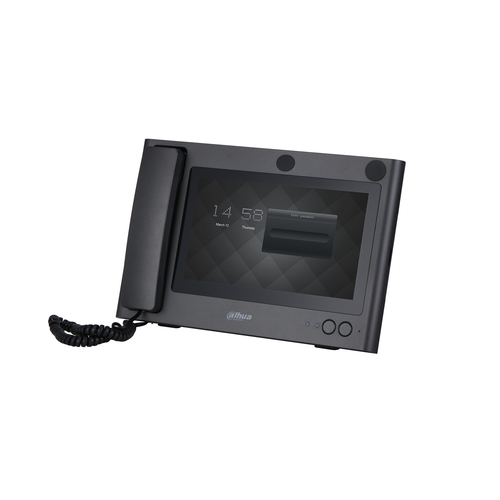

VTS5340B video intercom system
25.4 cm (10") Grey, Titanium
Model VTS5340BPart no. DHI-VTS5340BEAN 6939554986758
28 specifications
- Display25.4 cm (10")
- Resolution1024 x 600 pixels
- ConnectivityWired
- OSLinux
- ColourGrey, Titanium
- Built-in speaker(s)Yes
Overview
- Display
- 25.4 cm (10")
- Resolution
- 1024 x 600 pixels
- Connectivity
- Wired
- OS
- Linux
- Colour
- Grey, Titanium
- Built-in speaker(s)
- Yes
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTS5340B
- Part number
- DHI-VTS5340B
- EAN / UPC
- 6939554986758
- Also known as
- Dahua Technology VTS5340B video intercom system 25.4 cm (10") Grey, Titanium
Specifications
28 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Number of displays supported | 1 |
| Speakerphone | Yes |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.4 cm (10") |
| Display technology | TFT |
| Display resolution | 1024 x 600 pixels |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Voice codecs | G.711a, G.711u, PCM |
Design
| Specification | Value |
|---|---|
| Product colour | Grey, Titanium |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
Storage
| Specification | Value |
|---|---|
| Memory card slot | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 64 GB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | IPv4;SIP; RTSP; RTP; TCP; UDP |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Power
| Specification | Value |
|---|---|
| Indoor unit power type | DC |
| Power consumption (typical) | 24 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 344.9 mm |
| Depth | 64.4 mm |
| Height | 224.6 mm |
Packaging data
| Specification | Value |
|---|---|
| Indoor unit included | Yes |
| Package weight | 2.5 kg |
Technical details
| Specification | Value |
|---|---|
| Certification | CE, FCC |
