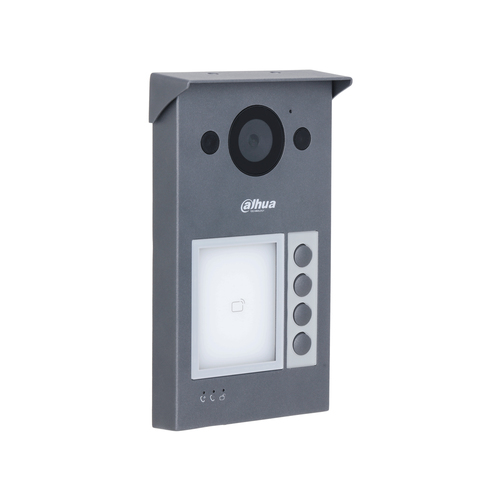

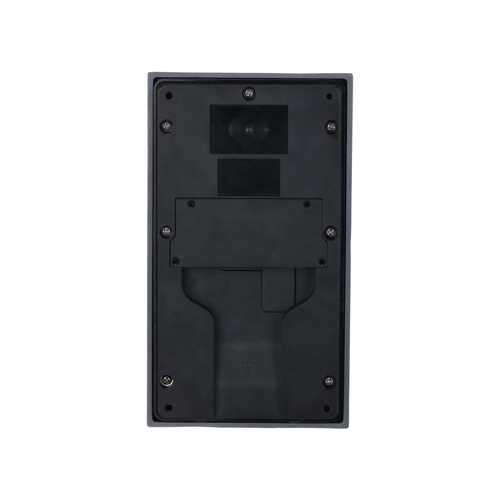

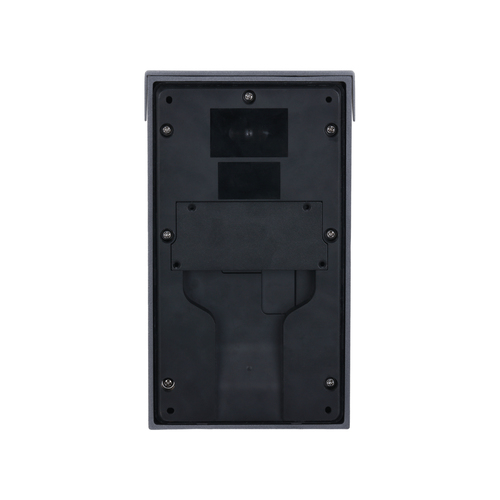

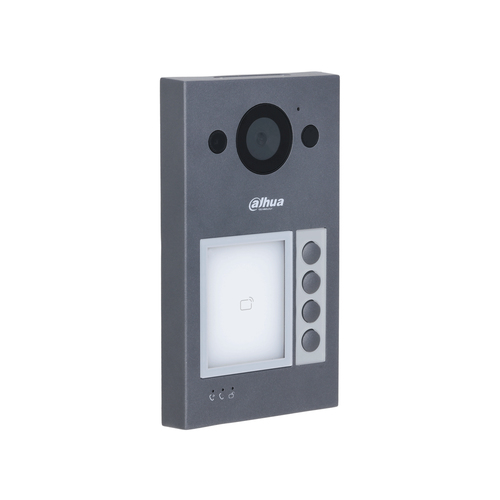

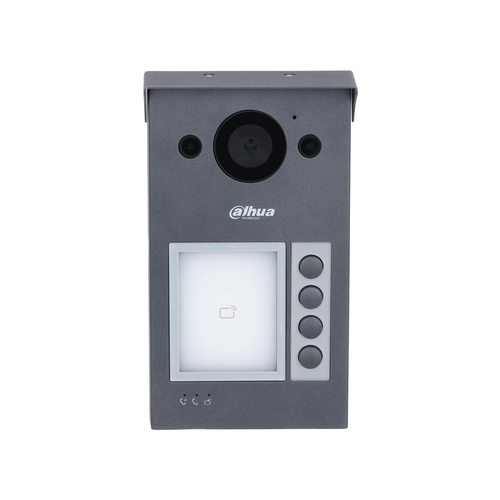

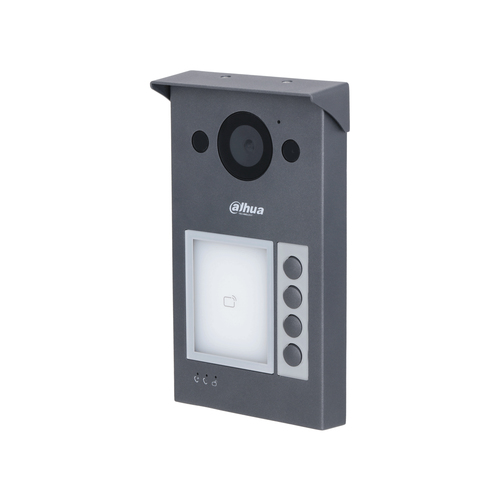

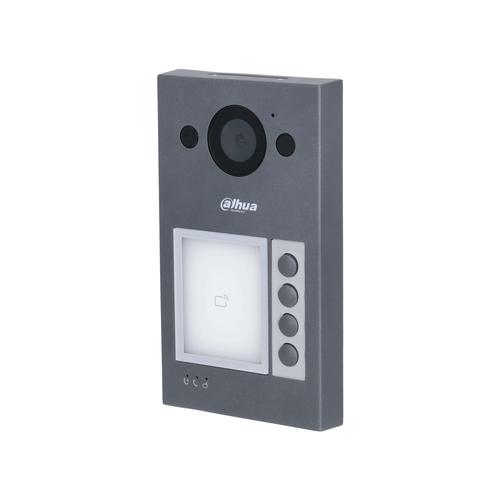

VTO3312Q-P video intercom system
2 MP Grey
Model VTO3312Q-PPart no. DHI-VTO3312Q-PEAN 6923172532565
58 specifications
- ConnectivityWired
- Weight570 g
- ColourNo
- Night visionYes
- Megapixel (approx.)2 MP
- Product colourGrey
Overview
- Connectivity
- Wired
- Weight
- 570 g
- Colour
- No
- Night vision
- Yes
- Megapixel (approx.)
- 2 MP
- Product colour
- Grey
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTO3312Q-P
- Part number
- DHI-VTO3312Q-P
- EAN / UPC
- 6923172532565
- Also known as
- Dahua Technology VTO3312Q-P video intercom system 2 MP Grey
Specifications
58 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Colour | No |
| Maximum number of cameras supported | 1 |
| Speakerphone | Yes |
| RFID reader | Yes |
| Automatic gain control | Yes |
| Built-in microphone | Yes |
| Door station control | Yes |
| Motion detection function | Yes |
| VoIP protocols | RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/HTTPS, ONVIF |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Touchscreen | No |
| Video formats supported | H.264, H.265 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| LED type | IR |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Supported video modes | 720p, 1080p |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Maximum frame rate | 30 fps |
| Viewing angle, horizontal | 125° |
| Viewing angle, vertical | 65° |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Noise-canceling | Yes |
| Voice codecs | G.711a, G.711u, PCM |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| IK code | IK08 |
| International Protection (IP) code | IP65 |
| Control type | Buttons |
| Housing material | Aluminium |
| Placement supported | Vertical |
| Proper use | Outdoor |
Storage
| Specification | Value |
|---|---|
| Memory card slot | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Maximum memory card size | 256 GB |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/HTTPS, ONVIF |
Power
| Specification | Value |
|---|---|
| Outdoor unit power type | DC |
| AC adapter output voltage | 48 V |
| AC adapter output current | 1 A |
| Power consumption (typical) | 8 W |
| Power consumption (standby) | 4 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 107.2 mm |
| Depth | 30 mm |
| Height | 188.1 mm |
| Weight | 570 g |
Packaging data
| Specification | Value |
|---|---|
| Outdoor unit included | Yes |
| Package weight | 780 g |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Minimum order quantity | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Sustainability compliance | Yes |
