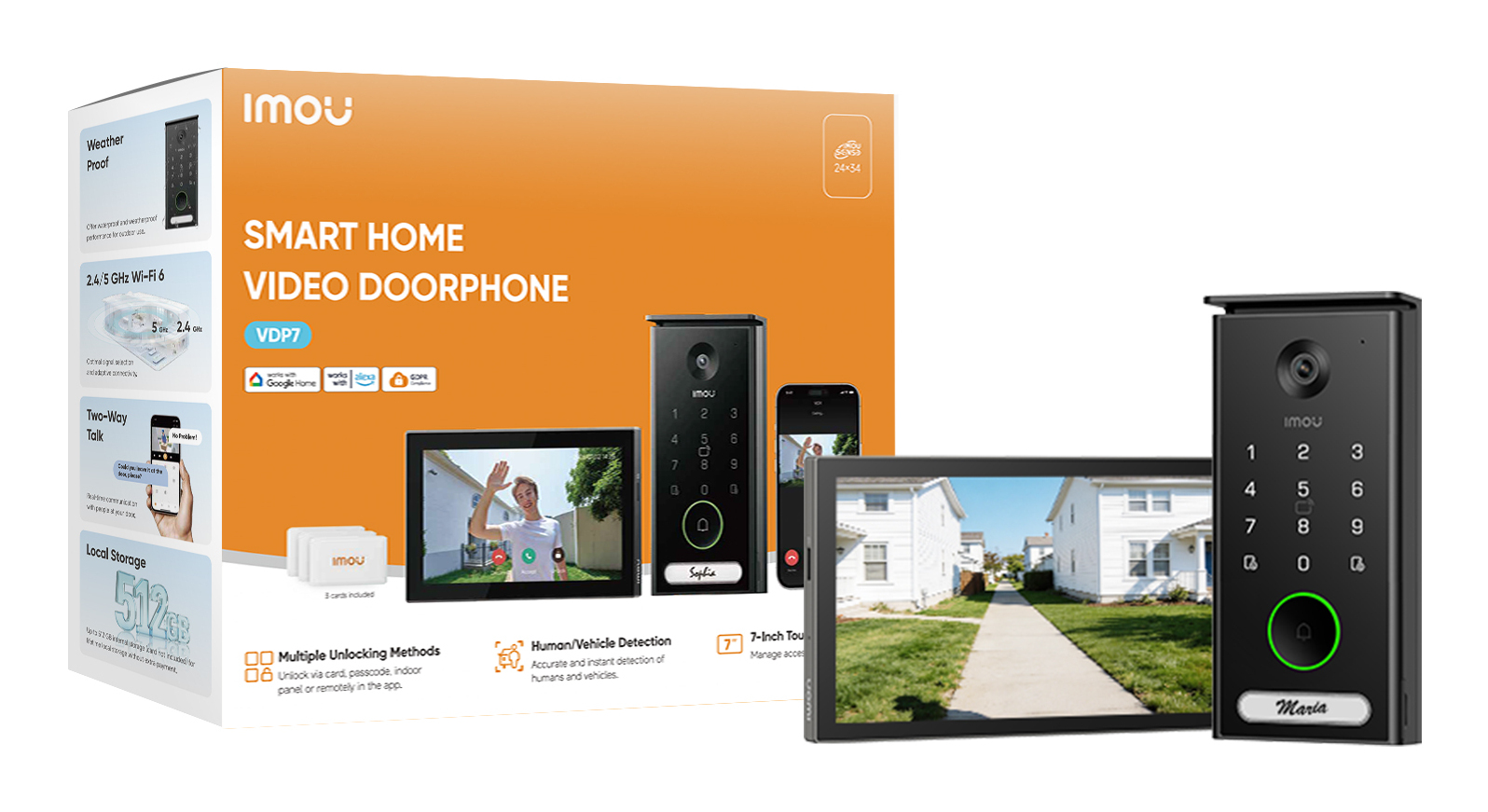

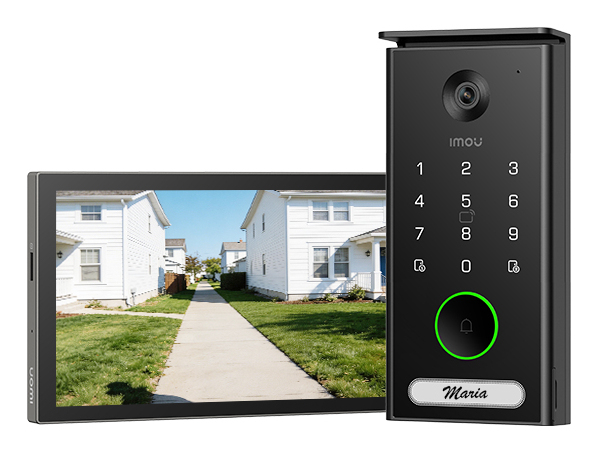

VDP7 video intercom system
5 MP 17.8 cm (7") Black
Model VDP7Part no. IMOU-VO1-5M0R/VH1-7A0SEAN 6937479645675
58 specifications
- Display17.8 cm (7")
- Resolution1024 x 600 pixels
- ConnectivityWireless
- ColourYes
- Megapixel (approx.)5 MP
- Product colourBlack
Overview
- Display
- 17.8 cm (7")
- Resolution
- 1024 x 600 pixels
- Connectivity
- Wireless
- Colour
- Yes
- Megapixel (approx.)
- 5 MP
- Product colour
- Black
- Brand
- Imou
- Category
- Video Intercom System
- Model
- VDP7
- Part number
- IMOU-VO1-5M0R/VH1-7A0S
- EAN / UPC
- 6937479645675
- Also known as
- Imou VDP7 video intercom system 5 MP 17.8 cm (7") Black
Specifications
58 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Colour | Yes |
| Number of displays supported | 1 |
| Maximum number of cameras supported | 1 |
| Lock control | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection, Vehicle detection |
| Active tampering alarm | Yes |

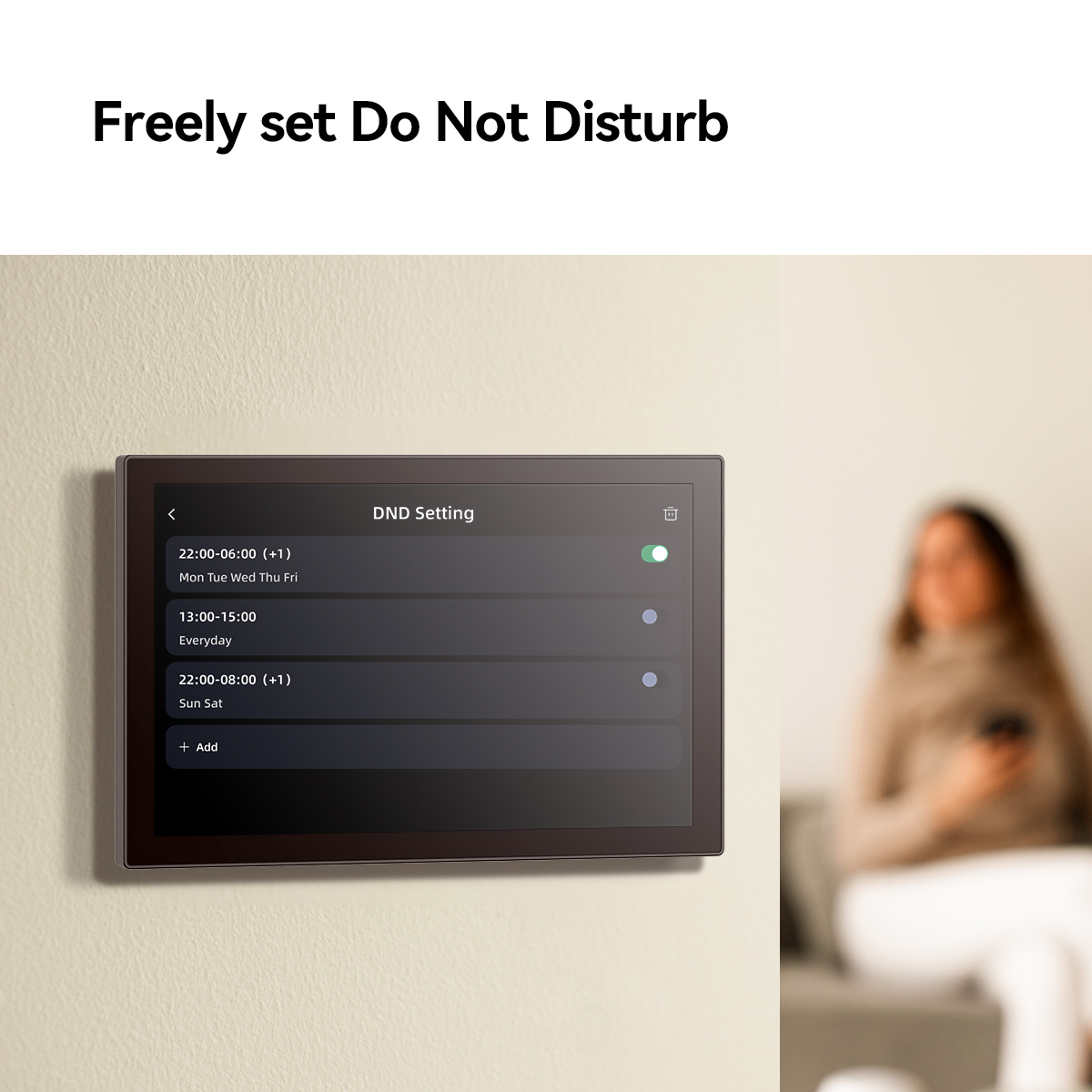

| Do not disturb function | Yes |
| Speakerphone | Yes |
| Weatherproof | Yes |
| Maximum operating distance | 120 m |
| Built-in microphone | Yes |
| Motion detection function | Yes |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Display resolution | 1024 x 600 pixels |
| Touchscreen | Yes |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | IR |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 5 MP |
| Maximum video resolution | 2880 x 1620 pixels |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Fixed focal length | 2.3 mm |
| Maximum frame rate | 15 fps |
| Viewing angle, diagonal | 149° |
| Viewing angle, horizontal | 125° |
| Viewing angle, vertical | 71° |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Doorbell button | Yes |
| Exit button | Yes |
| Proper use | Indoor & outdoor |
| Waterproof | Yes |
Storage
| Specification | Value |
|---|---|

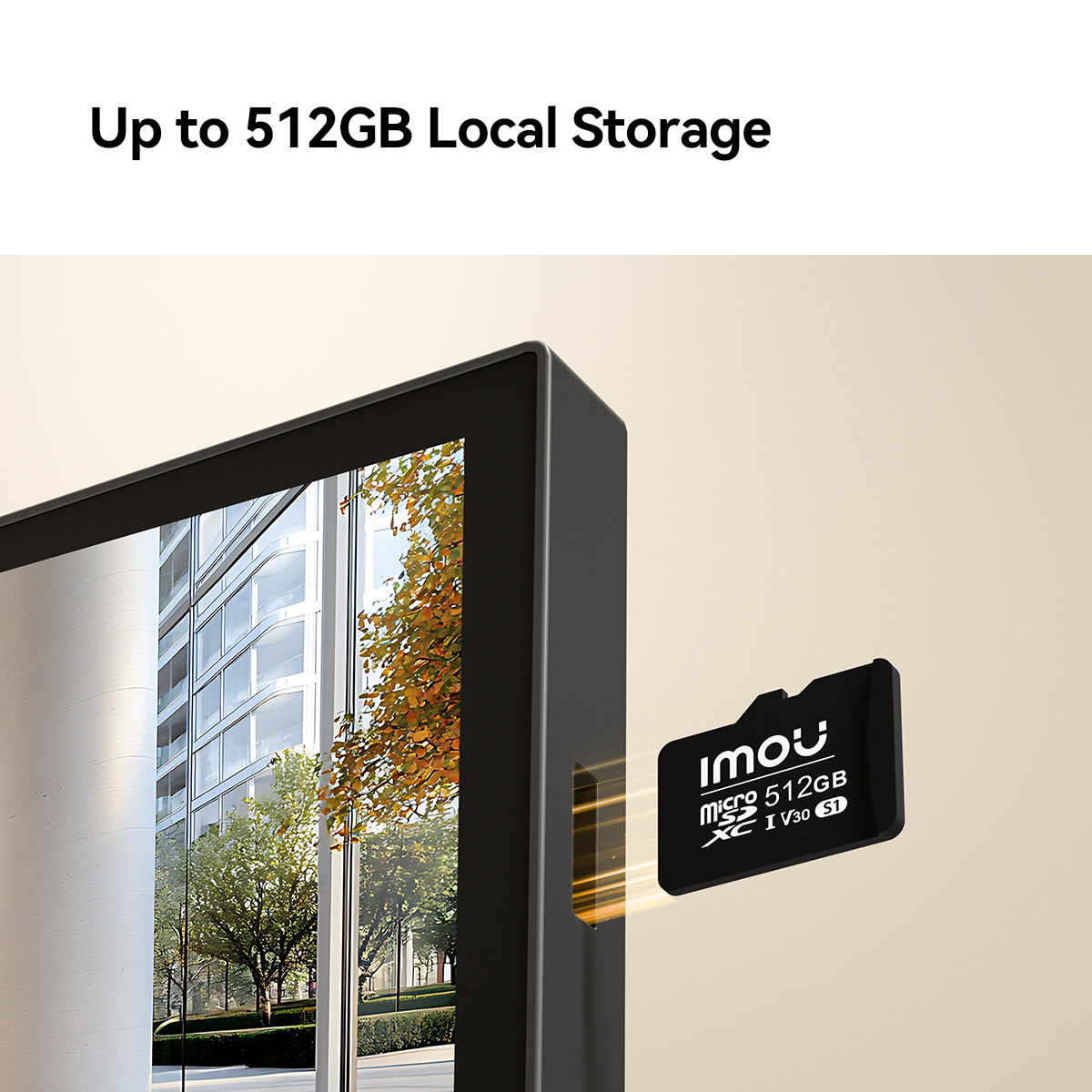

| Memory card slot | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |

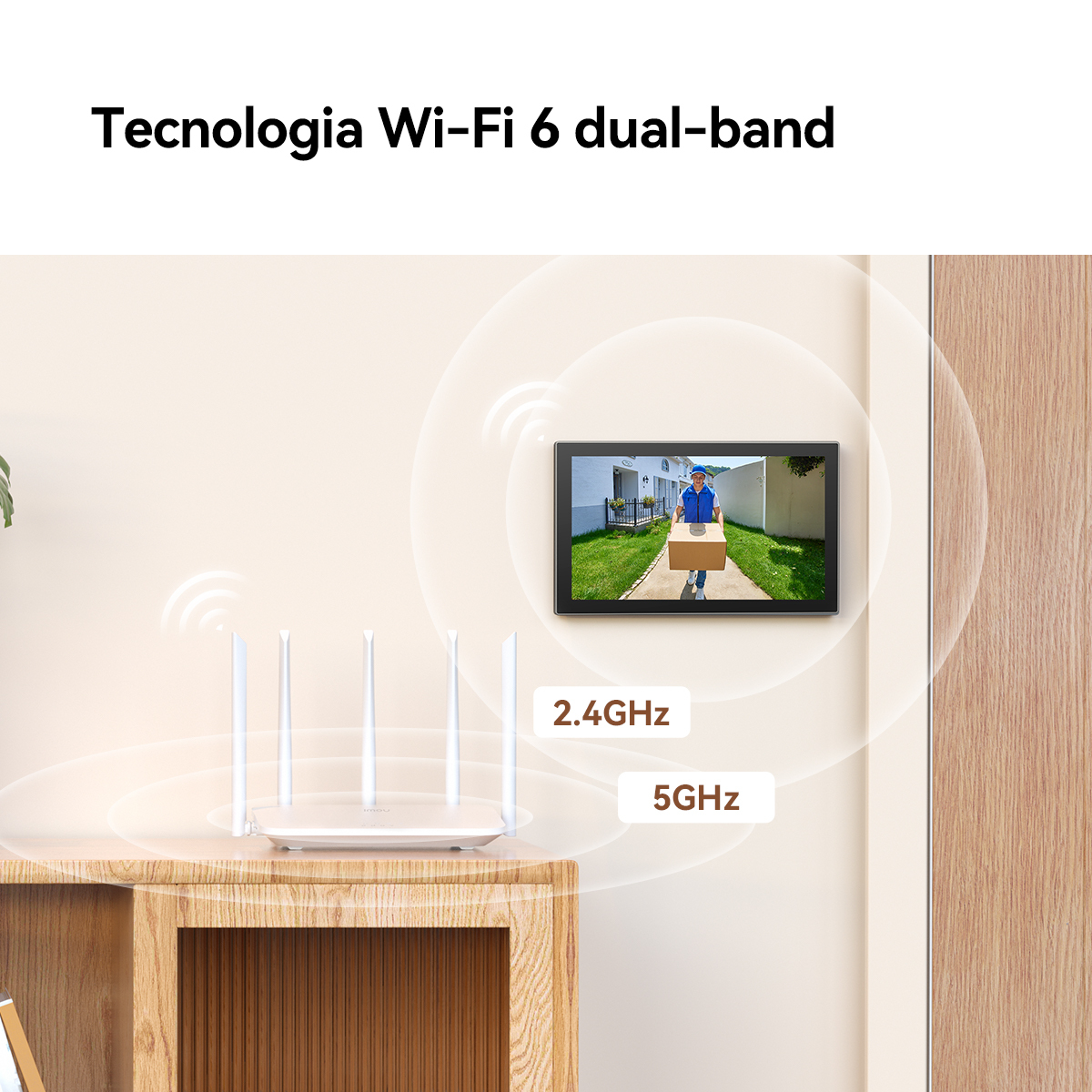

| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
Software
| Specification | Value |
|---|---|

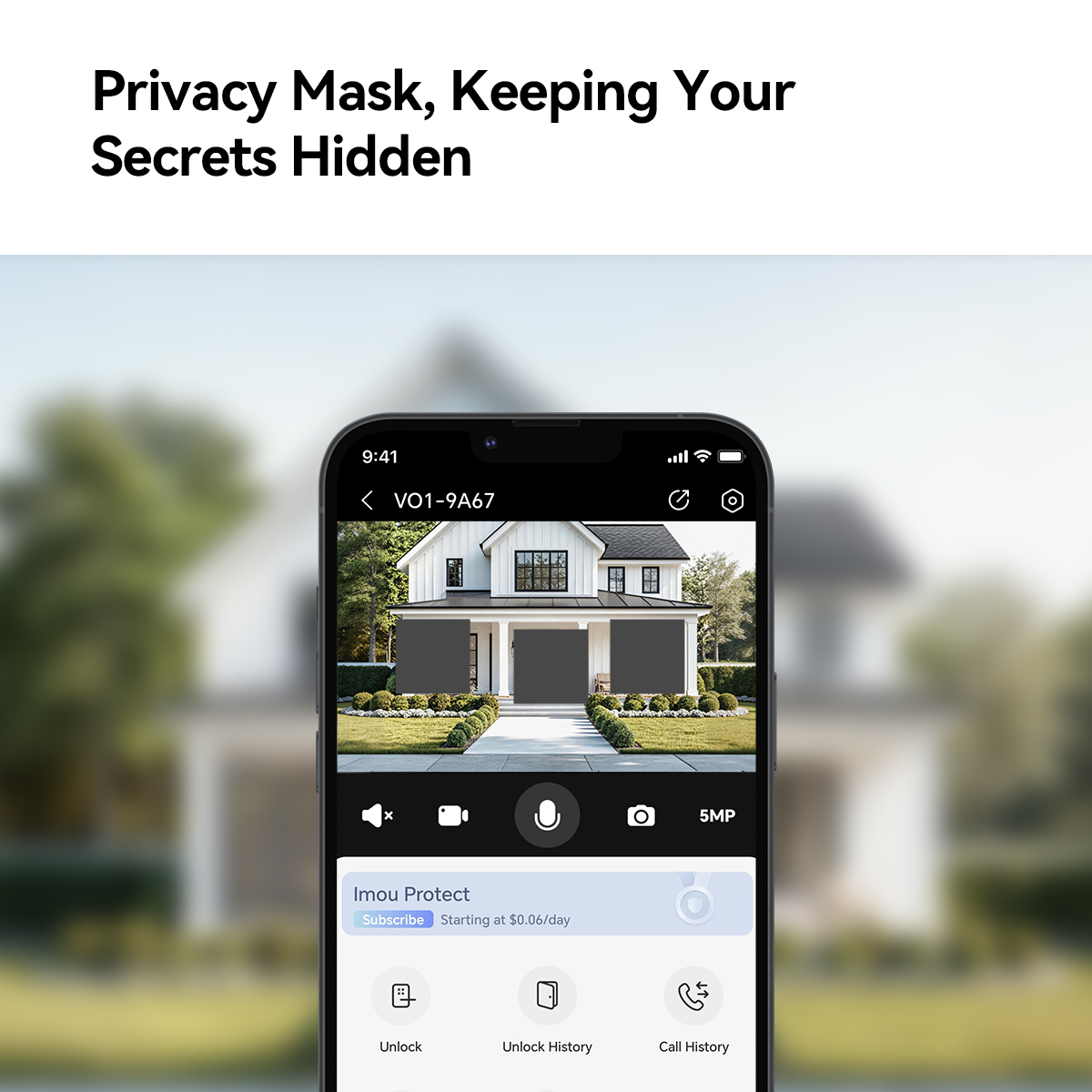

| Mobile operating systems supported | Android, iOS |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 24 V |
| AC adapter output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Door station operating temperature (T-T) | -20 - 50 °C |
| Main monitor station operating temperature (T-T) | -10 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 184 mm |
| Depth | 23.5 mm |
| Height | 113 mm |
| Door station dimensions (WxDxH) | 181 x 29 x 83.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Indoor unit included | Yes |
| Outdoor unit included | Yes |
| Drill template included | Yes |
| Power adapter included | Yes |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Screws included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
