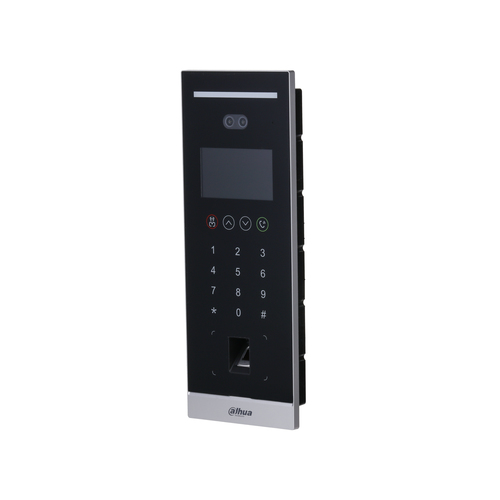

VTO6541H video intercom system
2 MP 10.9 cm (4.3") Silver
Model VTO6541HPart no. DHI-VTO6541HEAN 6939554988141
65 specifications
- Display10.9 cm (4.3")
- Resolution800 x 480 pixels
- ConnectivityWired
- OSLinux
- Weight1 kg
- ColourYes
Overview
- Display
- 10.9 cm (4.3")
- Resolution
- 800 x 480 pixels
- Connectivity
- Wired
- OS
- Linux
- Weight
- 1 kg
- Colour
- Yes
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTO6541H
- Part number
- DHI-VTO6541H
- EAN / UPC
- 6939554988141
- Also known as
- Dahua Technology VTO6541H video intercom system 2 MP 10.9 cm (4.3") Silver
Specifications
65 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Colour | Yes |
| Number of displays supported | 1 |
| Maximum number of cameras supported | 2 |
| Speakerphone | Yes |
| RFID reader | Yes |
| Fingerprint reader | Yes |
| Automatic gain control | Yes |
| Built-in microphone | Yes |
| Door station control | Yes |
| Motion detection function | Yes |
| VoIP protocols | SIP, P2P, IPv4, FTP, UPnP, DNS, DDNS, RTSP, RTP, TCP, UDP |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 10.9 cm (4.3") |
| Display technology | IPS |
| Display resolution | 800 x 480 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Video formats supported | H.264 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| LED type | IR |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Supported video modes | 720p, 1080p |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Maximum frame rate | 30 fps |
| Viewing angle, horizontal | 87.42° |
| Viewing angle, vertical | 46.48° |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Noise-canceling | Yes |
| Voice codecs | G.711u |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| International Protection (IP) code | IP65 |
| Control type | Touch |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Placement supported | Vertical |
| Proper use | Outdoor |
Storage
| Specification | Value |
|---|---|
| Memory card slot | Yes |
| Maximum memory card size | 4 GB |
| Included memory card size | 1 GB |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | SIP, P2P, IPv4, FTP, UPnP, DNS, DDNS, RTSP, RTP, TCP, UDP |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Power
| Specification | Value |
|---|---|
| Outdoor unit power type | DC |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| Power consumption | 100 mA |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145.5 mm |
| Depth | 43.5 mm |
| Height | 388.5 mm |
| Weight | 1 kg |
Packaging data
| Specification | Value |
|---|---|
| Outdoor unit included | Yes |
| Package weight | 1.29 kg |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Minimum order quantity | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Sustainability compliance | Yes |
