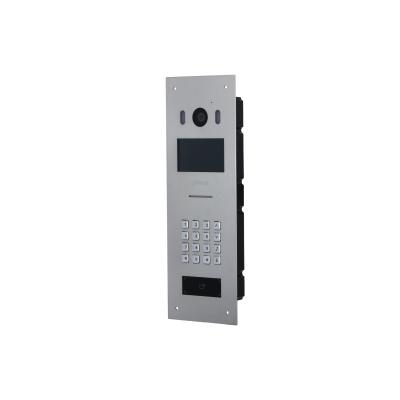

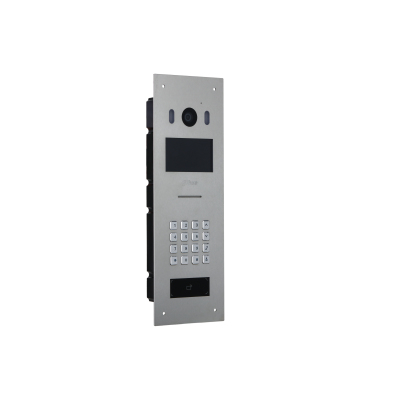

VTO6521K-S2 IP Apartment Door Station
Model VTO6521K-S2EAN 6939554913938
37 specifications
- Display10.9 cm (4.3")
- Resolution800 x 480 pixels
- ConnectivityWired
- OSLinux
- Weight2.3 kg
- ColourStainless steel
Overview
- Display
- 10.9 cm (4.3")
- Resolution
- 800 x 480 pixels
- Connectivity
- Wired
- OS
- Linux
- Weight
- 2.3 kg
- Colour
- Stainless steel
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTO6521K-S2
- Part number
- VTO6521K-S2
- EAN / UPC
- 6939554913938
- Also known as
- Dahua Technology VTO6521K-S2 IP Apartment Door Station
Specifications
37 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Speakerphone | Yes |
| Echo cancellation | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 10.9 cm (4.3") |
| Display resolution | 800 x 480 pixels |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Supported video modes | 720p, 1080p |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Maximum frame rate | 25 fps |
| Viewing angle, horizontal | 95° |
| Viewing angle, vertical | 50° |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Noise-canceling | Yes |
| Voice codecs | G.711a, G.711u, PCM |
Design
| Specification | Value |
|---|---|
| Product colour | Stainless steel |
| International Protection (IP) code | IP65 |
Indoor unit
| Specification | Value |
|---|---|
| Alarm input channels | 2 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | FTP;RTMP;HTTP/HTTPS;DNS;RTSP;SSH;ONVIF;SIP;RTP |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Power
| Specification | Value |
|---|---|
| Indoor unit power type | DC/PoE |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 406 mm |
| Depth | 143 mm |
| Height | 54 mm |
| Weight | 2.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Indoor unit included | Yes |
Technical details
| Specification | Value |
|---|---|
| Certification | CE |
