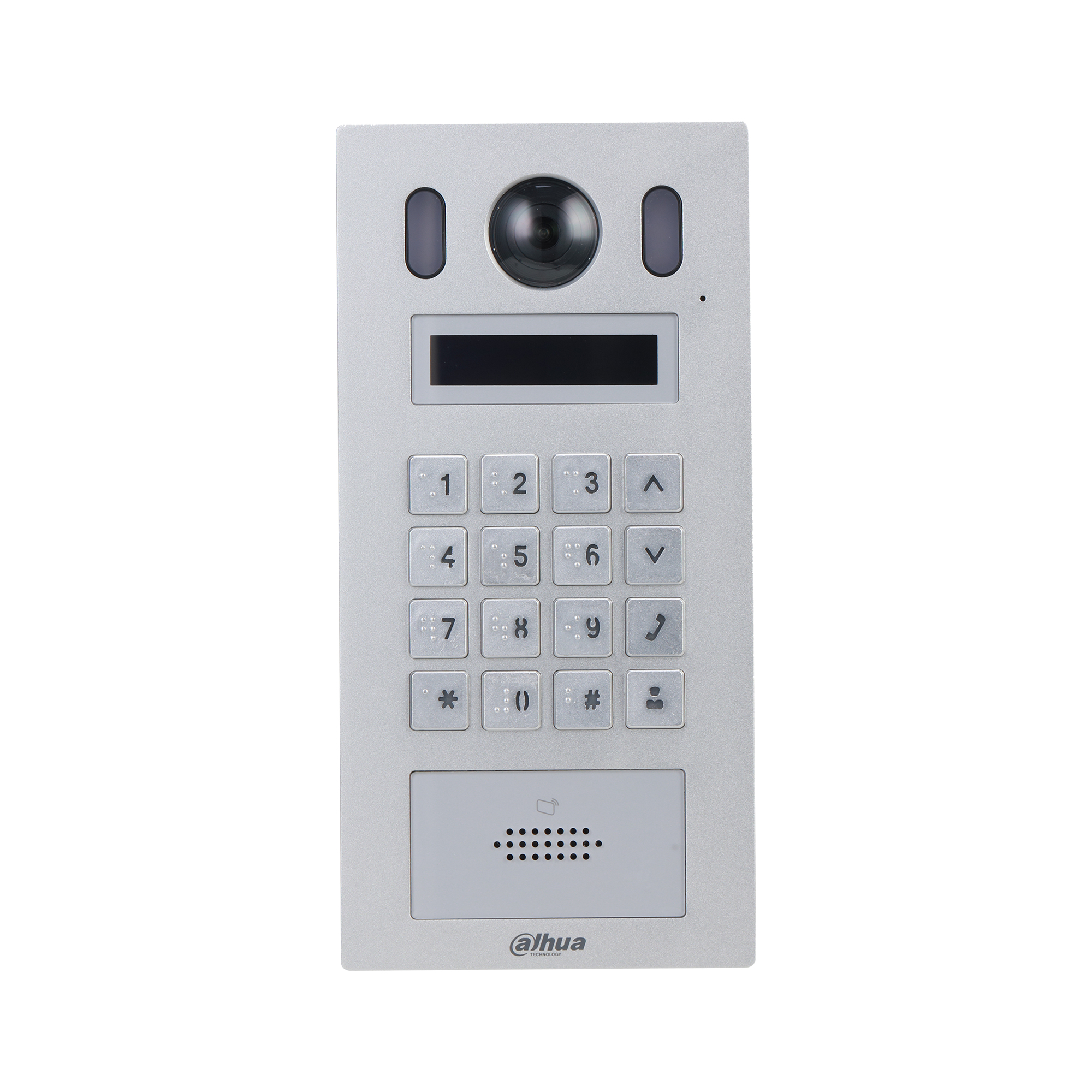

VTO6221E-P video intercom system
2 MP 5.84 cm (2.3") Aluminium
Model VTO6221E-PPart no. DHI-VTO6221E-PEAN 6939554933813
52 specifications
- Display5.84 cm (2.3")
- ConnectivityWired
- OSLinux
- Weight1.5 kg
- ColourYes
- Megapixel (approx.)2 MP
Overview
- Display
- 5.84 cm (2.3")
- Connectivity
- Wired
- OS
- Linux
- Weight
- 1.5 kg
- Colour
- Yes
- Megapixel (approx.)
- 2 MP
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTO6221E-P
- Part number
- DHI-VTO6221E-P
- EAN / UPC
- 6939554933813
- Also known as
- Dahua Technology VTO6221E-P video intercom system 2 MP 5.84 cm (2.3") Aluminium
Specifications
52 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Colour | Yes |
| Number of displays supported | 1 |
| Maximum number of cameras supported | 1 |
| Speakerphone | Yes |
| RFID reader | Yes |
| Automatic gain control | Yes |
| Built-in microphone | Yes |
| Door station control | Yes |
| Motion detection function | Yes |
| VoIP protocols | TCP/IP |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 5.84 cm (2.3") |
| Display technology | OLED |
| Video formats supported | H.264 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Viewing angle, horizontal | 138° |
| Viewing angle, vertical | 78° |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Noise-canceling | Yes |
| Voice codecs | G.711 |
Design
| Specification | Value |
|---|---|
| Product colour | Aluminium |
| IK code | IK08 |
| International Protection (IP) code | IP65 |
| Control type | Buttons |
| Housing material | Aluminium |
| Placement supported | Vertical |
| Proper use | Outdoor |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3af |
| Supported network protocols | TCP/IP |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Power
| Specification | Value |
|---|---|
| Outdoor unit power type | DC |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| Power consumption (typical) | 6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 98 mm |
| Depth | 32 mm |
| Height | 200 mm |
| Weight | 1.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Outdoor unit included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Minimum order quantity | 1 pc(s) |
