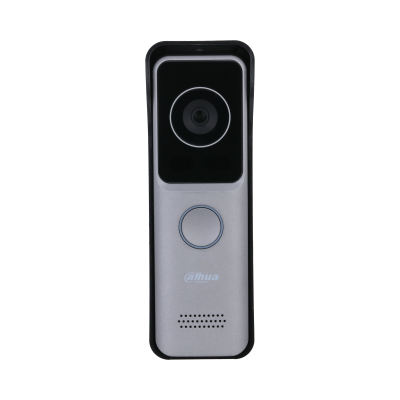

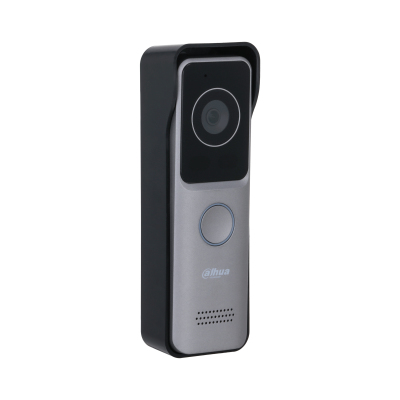

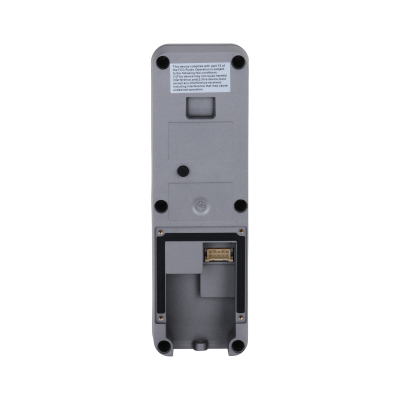

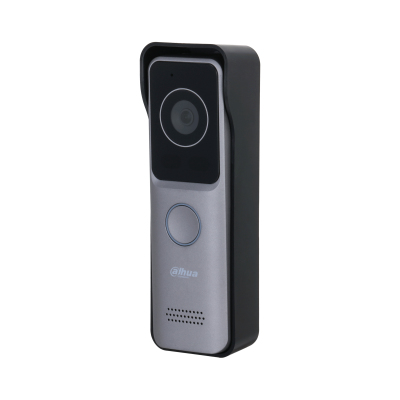

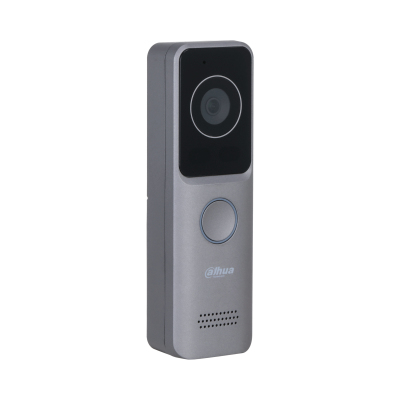

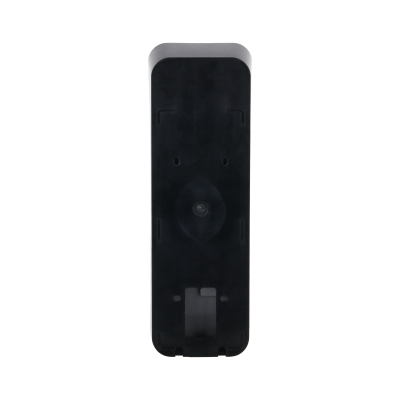

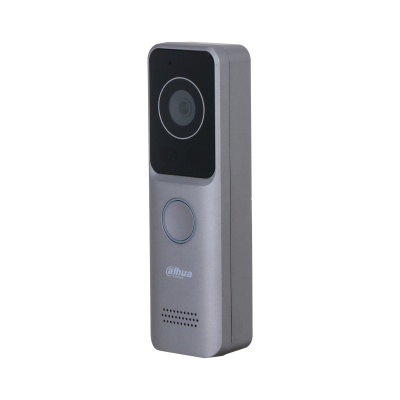

VTO2301R-P video intercom system
2 MP Black, Grey
Model VTO2301R-PEAN 6923172532541
38 specifications
- ConnectivityWired & Wireless
- Weight390 g
- ColourBlack, Grey
- Night visionYes
- Megapixel (approx.)2 MP
- Ethernet interface typeFast Ethernet
Overview
- Connectivity
- Wired & Wireless
- Weight
- 390 g
- Colour
- Black, Grey
- Night vision
- Yes
- Megapixel (approx.)
- 2 MP
- Ethernet interface type
- Fast Ethernet
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTO2301R-P
- Part number
- VTO2301R-P
- EAN / UPC
- 6923172532541
- Also known as
- Dahua Technology VTO2301R-P video intercom system 2 MP Black, Grey
Specifications
38 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Maximum number of cameras supported | 1 |
| Speakerphone | Yes |
| Built-in microphone | Yes |
| Door station control | Yes |
| Number of buttons | 1 buttons |
| Wall mountable | Yes |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Supported video modes | 720p, 1080p |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Maximum frame rate | 30 fps |
| Viewing angle, horizontal | 110° |
| Viewing angle, vertical | 62° |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Noise-canceling | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| International Protection (IP) code | IP65 |
| Housing material | Acrylonitrile butadiene styrene (ABS), Plastic |
Storage
| Specification | Value |
|---|---|
| Memory card slot | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
Power
| Specification | Value |
|---|---|
| Indoor unit power type | DC |
| Power consumption (typical) | 5.5 W |
| Power consumption (standby) | 3.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 30 mm |
| Height | 160 mm |
| Weight | 390 g |
Packaging data
| Specification | Value |
|---|---|
| Outdoor unit included | Yes |
