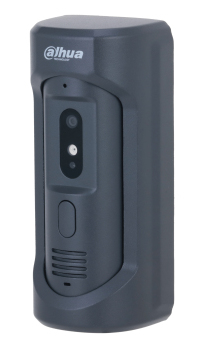

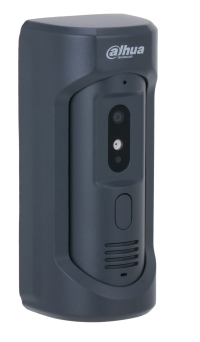

VTO2101E-P-S2 video intercom system
2 MP Black
Model VTO2101E-P-S2
53 specifications
- ConnectivityWired
- Weight300 g
- ColourBlack
- Wide Dynamic Range (WDR)Yes
- Megapixel (approx.)2 MP
- Compatible memory cardsSD
Overview
- Connectivity
- Wired
- Weight
- 300 g
- Colour
- Black
- Wide Dynamic Range (WDR)
- Yes
- Megapixel (approx.)
- 2 MP
- Compatible memory cards
- SD
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTO2101E-P-S2
- Part number
- VTO2101E-P-S2
- Also known as
- Dahua Technology VTO2101E-P-S2 video intercom system 2 MP Black
Specifications
53 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Speakerphone | Yes |
| Automatic gain control | Yes |
| Built-in microphone | Yes |
| Door station control | Yes |
| Echo cancellation | Yes |
| Number of buttons | 1 buttons |
| Streaming capability | Yes |
| Wall mountable | Yes |
| White balance | Auto |
Display
| Specification | Value |
|---|---|
| Wide Dynamic Range (WDR) | Yes |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| LED type | IR |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Supported video modes | 720p, 1080p |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Day/night mode | Yes |
| Field of view (FOV) angle | 90° |
| Maximum frame rate | 30 fps |
| Viewing angle, horizontal | 80° |
| Viewing angle, vertical | 40° |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Voice codecs | G.711a, G.711u, PCM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| IK code | IK10 |
| International Protection (IP) code | IP65 |
| Control type | Buttons |
| Housing material | Aluminium, Zinc |
| Placement supported | Vertical |
| Proper use | Outdoor |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | SD |
Outdoor unit
| Specification | Value |
|---|---|
| RS-485 ports (transmitter) | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
Power
| Specification | Value |
|---|---|
| Outdoor unit power type | DC/PoE |
| Power consumption (typical) | 5 W |
| Power consumption (standby) | 2.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 73 mm |
| Depth | 55 mm |
| Height | 163 mm |
| Weight | 300 g |
Packaging data
| Specification | Value |
|---|---|
| Indoor unit included | No |
| Outdoor unit included | Yes |
| Package weight | 800 g |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Certification | CE, FCC |
