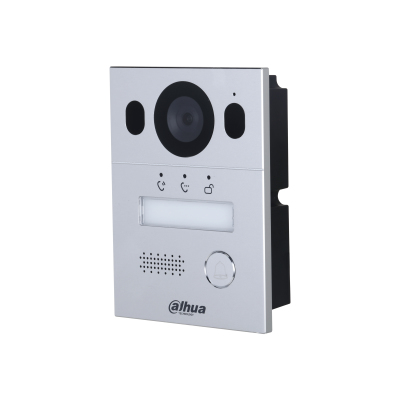

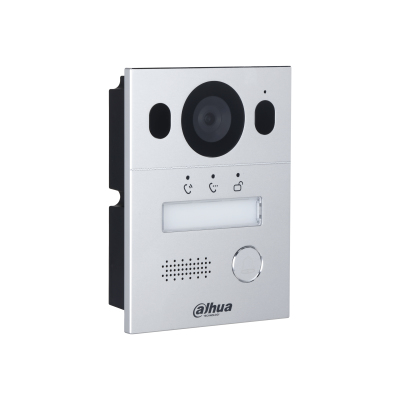

VTO2003F video intercom system
2 MP Silver
Model VTO2003FPart no. DHI-VTO2003F
25 specifications
- ConnectivityWired
- ColourSilver
- Wide Dynamic Range (WDR)Yes
- Megapixel (approx.)2 MP
- RS-485 ports1
- Operating temperature (T-T)-40 - 60 °C
Overview
- Connectivity
- Wired
- Colour
- Silver
- Wide Dynamic Range (WDR)
- Yes
- Megapixel (approx.)
- 2 MP
- RS-485 ports
- 1
- Operating temperature (T-T)
- -40 - 60 °C
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTO2003F
- Part number
- DHI-VTO2003F
- Also known as
- Dahua Technology VTO2003F video intercom system 2 MP Silver
Specifications
25 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Maximum number of cameras supported | 1 |
| Speakerphone | Yes |
| Number of buttons | 1 buttons |
Display
| Specification | Value |
|---|---|
| Wide Dynamic Range (WDR) | Yes |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Day/night mode | Yes |
| Maximum frame rate | 30 fps |
| Viewing angle, horizontal | 110° |
| Viewing angle, vertical | 60° |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| IK code | IK07 |
| International Protection (IP) code | IP65 |
| LED indicators | Yes |
Indoor unit
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 96 mm |
| Depth | 28.5 mm |
| Height | 130 mm |
Packaging data
| Specification | Value |
|---|---|
| Outdoor unit included | Yes |
| Package weight | 326 g |
Technical details
| Specification | Value |
|---|---|
| Certification | CE, FCC |
