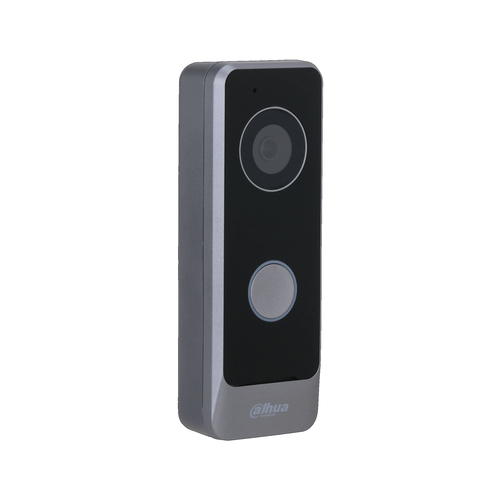

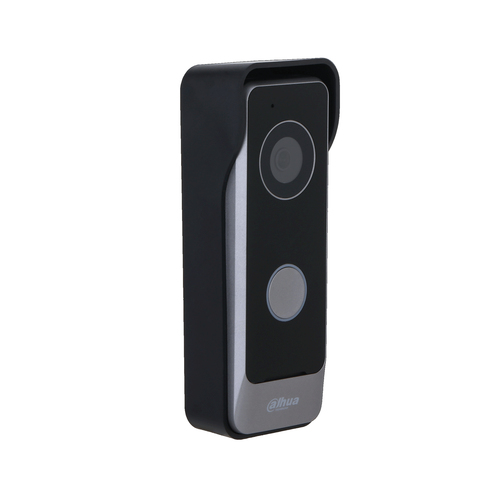

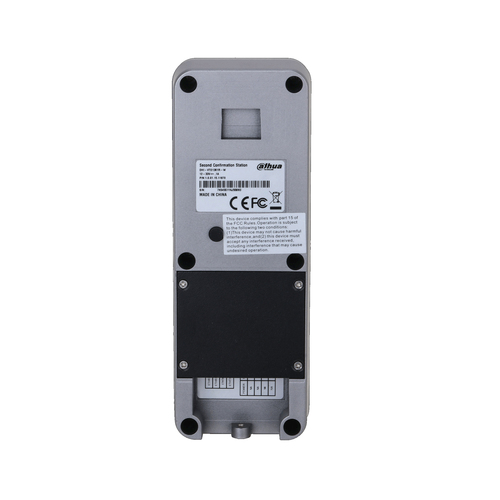

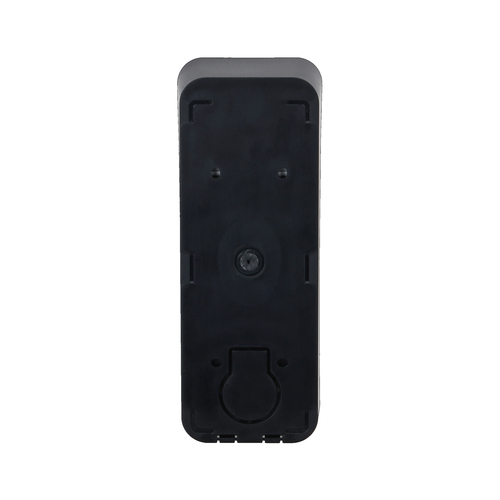

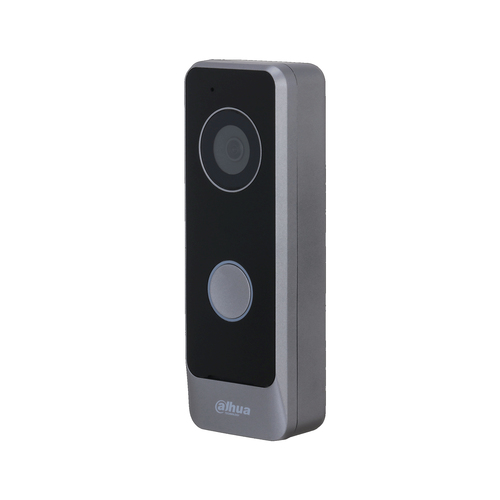

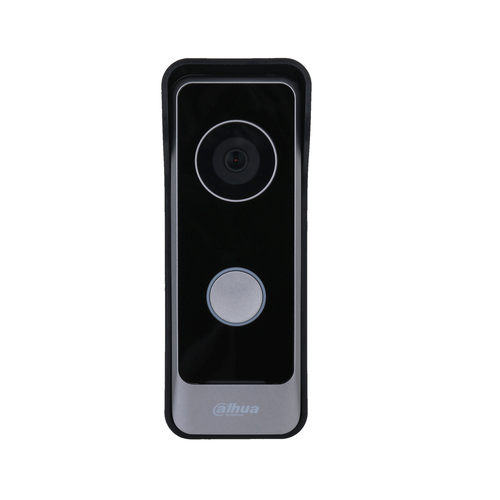

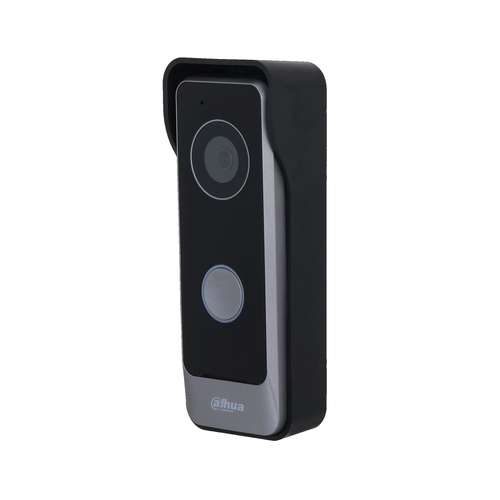

VTO1301R-W video intercom system
2 MP Light grey
Model VTO1301R-WPart no. DHI-VTO1301R-WEAN 6923172534729
53 specifications
- ConnectivityWireless
- Weight130 g
- ColourNo
- Video formats supportedH.264, H.265
- Night visionYes
- Megapixel (approx.)2 MP
Overview
- Connectivity
- Wireless
- Weight
- 130 g
- Colour
- No
- Video formats supported
- H.264, H.265
- Night vision
- Yes
- Megapixel (approx.)
- 2 MP
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTO1301R-W
- Part number
- DHI-VTO1301R-W
- EAN / UPC
- 6923172534729
- Also known as
- Dahua Technology VTO1301R-W video intercom system 2 MP Light grey
Specifications
53 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Colour | No |
| Maximum number of cameras supported | 1 |
| Speakerphone | Yes |
| RFID reader | Yes |
| Automatic gain control | Yes |
| Built-in microphone | Yes |
| Door station control | Yes |
| Motion detection function | Yes |
| VoIP protocols | RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/HTTPS, ONVIF |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Video formats supported | H.264, H.265 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| LED type | IR |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Supported video modes | 720p, 1080p |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Maximum frame rate | 30 fps |
| Viewing angle, horizontal | 110° |
| Viewing angle, vertical | 62° |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Noise-canceling | Yes |
| Voice codecs | G.711a, G.711u, PCM |
Design
| Specification | Value |
|---|---|
| Product colour | Light grey |
| International Protection (IP) code | IP65 |
| Control type | Buttons |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Placement supported | Vertical |
| Proper use | Outdoor |
Storage
| Specification | Value |
|---|---|
| Memory card slot | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Supported network protocols | RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/HTTPS, ONVIF |
Power
| Specification | Value |
|---|---|
| Outdoor unit power type | DC |
| AC adapter output voltage | 33 V |
| AC adapter output current | 1 A |
| Power consumption (typical) | 5 W |
| Power consumption (standby) | 3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50.7 mm |
| Depth | 27 mm |
| Height | 140.7 mm |
| Weight | 130 g |
Packaging data
| Specification | Value |
|---|---|
| Outdoor unit included | Yes |
| Package weight | 340 g |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Minimum order quantity | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Sustainability compliance | Yes |
