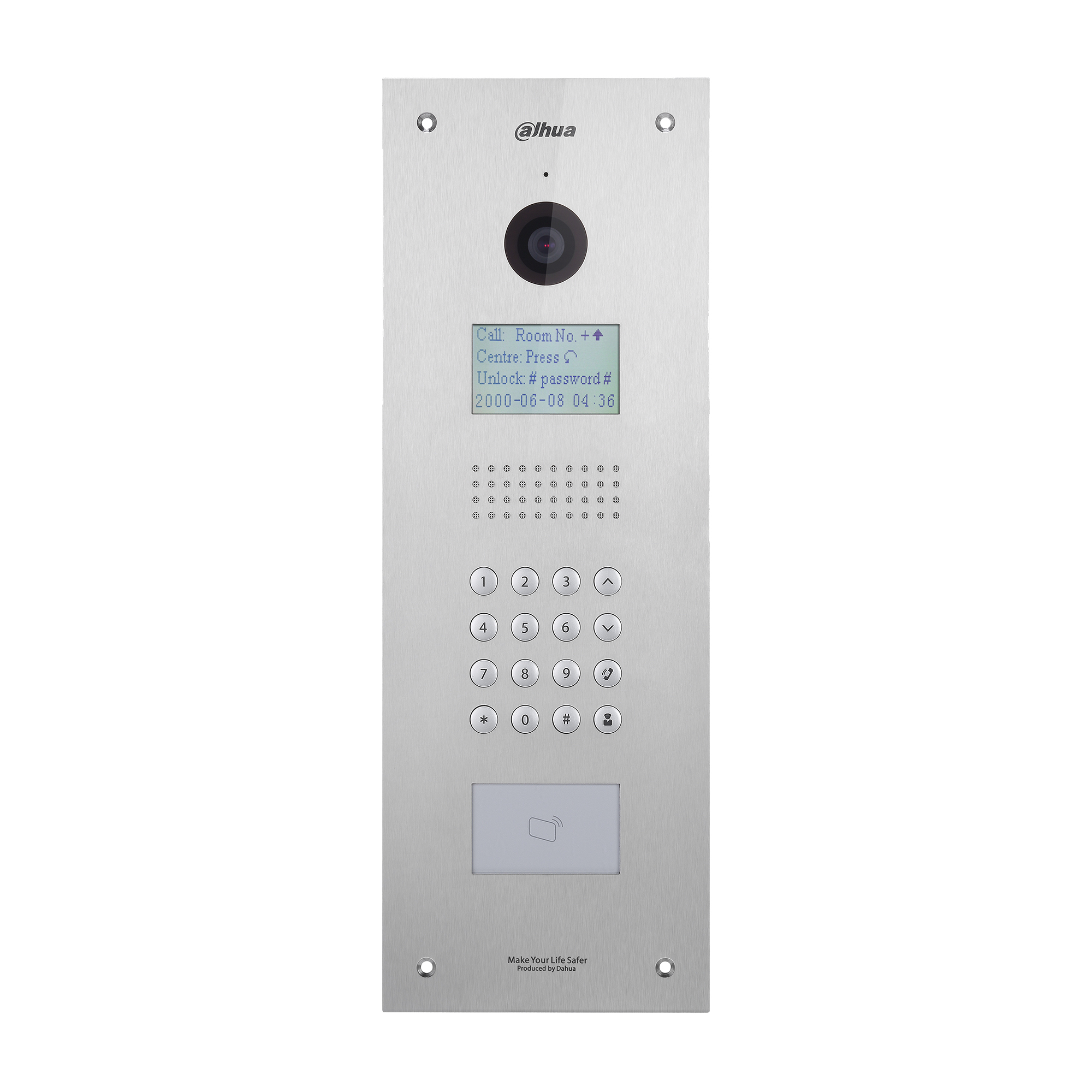

VTO1210C-X video intercom system
1.3 MP 7.62 cm (3") Silver
Model VTO1210C-X
43 specifications
- Display7.62 cm (3")
- Resolution128 x 64 pixels
- ConnectivityWired
- Weight1.6 kg
- ColourNo
- Night visionYes
Overview
- Display
- 7.62 cm (3")
- Resolution
- 128 x 64 pixels
- Connectivity
- Wired
- Weight
- 1.6 kg
- Colour
- No
- Night vision
- Yes
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTO1210C-X
- Part number
- VTO1210C-X
- Also known as
- Dahua Technology VTO1210C-X video intercom system 1.3 MP 7.62 cm (3") Silver
Specifications
43 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Colour | No |
| Number of displays supported | 1 |
| Maximum number of cameras supported | 1 |
| Speakerphone | Yes |
| Built-in microphone | Yes |
| Door station control | Yes |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 7.62 cm (3") |
| Display resolution | 128 x 64 pixels |
| Video formats supported | H.264 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| LED type | IR |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 1.3 MP |
| Lens type | Close-up |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Motion sensor | Yes |
| Viewing angle, horizontal | 75° |
| Viewing angle, vertical | 95° |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Voice codecs | G.711 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| IK code | IK07 |
| International Protection (IP) code | IP54 |
| Vandal-proof | Yes |
| Outdoor unit housing material | Stainless steel |
| Control type | Buttons |
| Housing material | Stainless steel |
| Placement supported | Vertical |
| Proper use | Outdoor |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Supported network protocols | TCP/IP |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
| Power consumption (standby) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 143 mm |
| Depth | 42 mm |
| Height | 406 mm |
| Weight | 1.6 kg |
