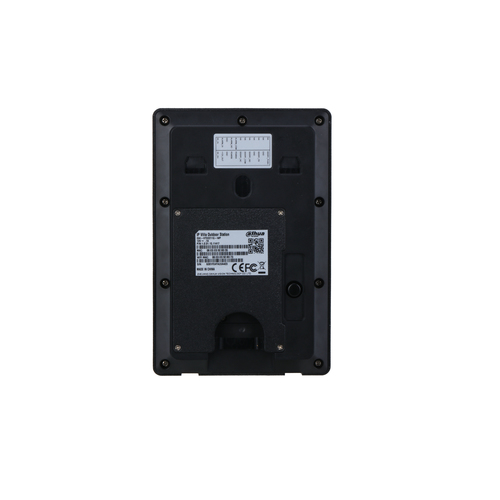

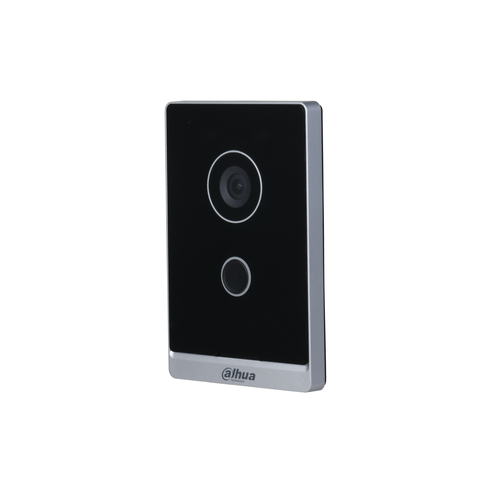

VTO1201G-P video intercom system
2 MP Black, Silver
Model VTO1201G-PPart no. DHI-VTO1201G-PEAN 6939554934162
54 specifications
- ConnectivityWired
- OSLinux
- Weight490 g
- ColourNo
- Video formats supportedH.264
- Night visionYes
Overview
- Connectivity
- Wired
- OS
- Linux
- Weight
- 490 g
- Colour
- No
- Video formats supported
- H.264
- Night vision
- Yes
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTO1201G-P
- Part number
- DHI-VTO1201G-P
- EAN / UPC
- 6939554934162
- Also known as
- Dahua Technology VTO1201G-P video intercom system 2 MP Black, Silver
Specifications
54 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Colour | No |
| Maximum number of cameras supported | 1 |
| Speakerphone | Yes |
| RFID reader | Yes |
| Automatic gain control | Yes |
| Built-in microphone | Yes |
| Door station control | Yes |
| Motion detection function | Yes |
| VoIP protocols | SIP, P2P, IPv4, FTP, UPnP, DNS, DDNS, RTSP, RTP, TCP, UDP |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Video formats supported | H.264 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| LED type | IR |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Supported video modes | 720p, 1080p |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Maximum frame rate | 30 fps |
| Viewing angle, horizontal | 125° |
| Viewing angle, vertical | 72° |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Noise-canceling | Yes |
| Voice codecs | G.711Mu, G.711u, PCM |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| International Protection (IP) code | IP65 |
| Control type | Buttons |
| Housing material | Acrylic, Polycarbonate (PC) |
| Placement supported | Vertical |
| Proper use | Outdoor |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | SIP, P2P, IPv4, FTP, UPnP, DNS, DDNS, RTSP, RTP, TCP, UDP |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Power
| Specification | Value |
|---|---|
| Outdoor unit power type | DC |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| Power consumption (typical) | 7 W |
| Power consumption (standby) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 24.8 mm |
| Height | 150 mm |
| Weight | 490 g |
Packaging data
| Specification | Value |
|---|---|
| Outdoor unit included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Minimum order quantity | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Country of origin | China |
| Sustainability compliance | Yes |
