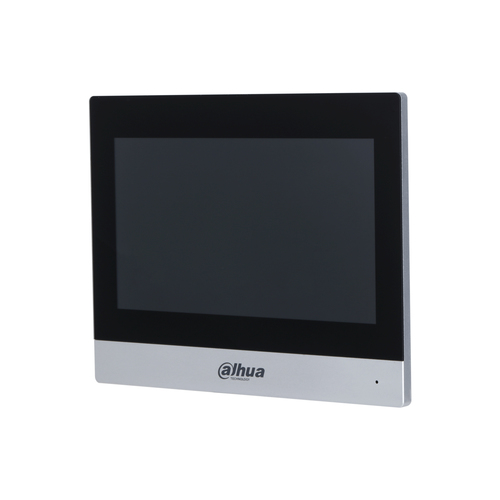

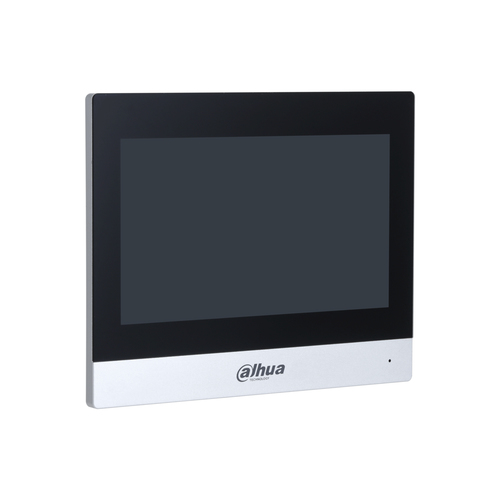

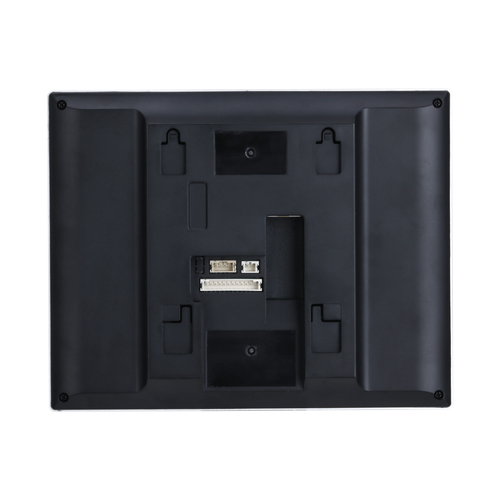

VTH8621KMS-WP video intercom system
17.8 cm (7") Silver
Model VTH8621KMS-WPPart no. DHI-VTH8621KMS-WPEAN 6923172532107
53 specifications
- Display17.8 cm (7")
- Resolution1024 x 600 pixels
- ConnectivityWired
- OSLinux
- Weight390 g
- ColourYes
Overview
- Display
- 17.8 cm (7")
- Resolution
- 1024 x 600 pixels
- Connectivity
- Wired
- OS
- Linux
- Weight
- 390 g
- Colour
- Yes
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTH8621KMS-WP
- Part number
- DHI-VTH8621KMS-WP
- EAN / UPC
- 6923172532107
- Also known as
- Dahua Technology VTH8621KMS-WP video intercom system 17.8 cm (7") Silver
Specifications
53 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Colour | Yes |
| Number of displays supported | 1 |
| Maximum number of cameras supported | 1 |
| Speakerphone | Yes |
| Automatic gain control | Yes |
| Built-in microphone | Yes |
| Door station control | Yes |
| Echo cancellation | Yes |
| Motion detection function | Yes |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Display technology | TFT |
| Display resolution | 1024 x 600 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Noise-canceling | Yes |
| Voice codecs | G.711a, G.711u, PCM |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Outdoor unit housing material | Aluminium |
| Control type | Touch |
| Housing material | Metal |
| Placement supported | Horizontal |
| Proper use | Outdoor |
Storage
| Specification | Value |
|---|---|
| Memory card slot | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 64 GB |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Cabling technology | 10/100Base-T(X) |
| Power over Ethernet (PoE) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Power
| Specification | Value |
|---|---|
| Outdoor unit power type | DC |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| Power consumption (typical) | 7 W |
| Power consumption (standby) | 3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 23.5 mm |
| Height | 147 mm |
| Weight | 390 g |
Packaging data
| Specification | Value |
|---|---|
| Outdoor unit included | Yes |
| Package weight | 580 g |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Minimum order quantity | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Sustainability compliance | Yes |
