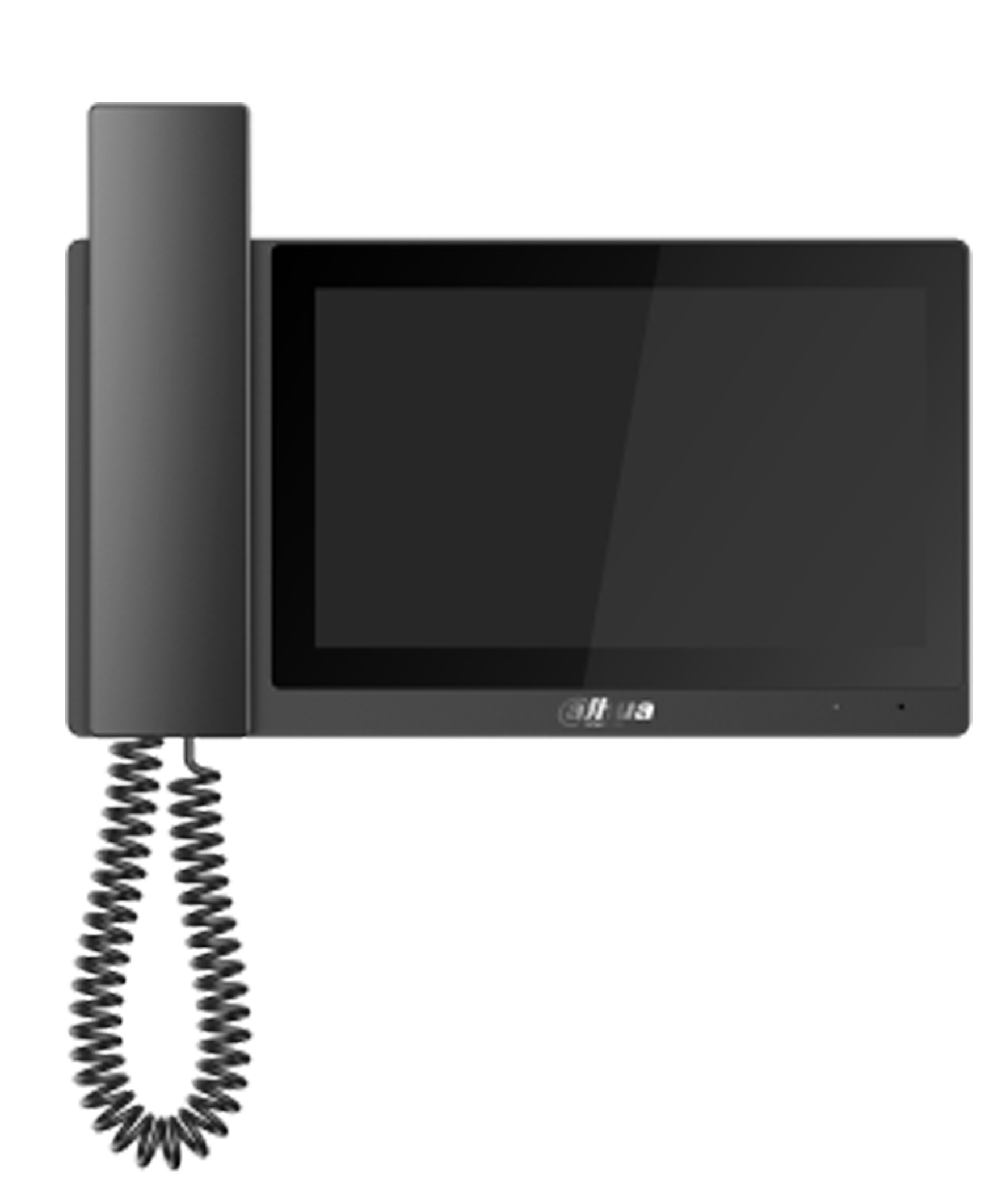

VTH5421E-H video intercom system
17.8 cm (7") Black
Model VTH5421E-H
45 specifications
- Display17.8 cm (7")
- Resolution1024 x 600 pixels
- ConnectivityWired & Wireless
- OSLinux
- Weight566 g
- ColourYes
Overview
- Display
- 17.8 cm (7")
- Resolution
- 1024 x 600 pixels
- Connectivity
- Wired & Wireless
- OS
- Linux
- Weight
- 566 g
- Colour
- Yes
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTH5421E-H
- Part number
- VTH5421E-H
- Also known as
- Dahua Technology VTH5421E-H video intercom system 17.8 cm (7") Black
Specifications
45 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Colour | Yes |
| Number of displays supported | 1 |
| Speakerphone | Yes |
| Built-in microphone | Yes |
| Video codecs | H.264 |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Display technology | TFT |
| Display resolution | 1024 x 600 pixels |
| Backlight display | Yes |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Voice codecs | PCM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Indoor unit housing material | ABS, Polycarbonate |
| Control type | Touch |
| Proper use | Indoor |
Storage
| Specification | Value |
|---|---|
| Memory card slot | Yes |
| Compatible memory cards | SD |
| Maximum memory card size | 32 GB |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Cabling technology | 10/100Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | IPv4, DNS, RTSP, RTP, TCP, UDP, SIP |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Power
| Specification | Value |
|---|---|
| Indoor unit power type | DC |
| Power consumption (typical) | 5 W |
| Power consumption (standby) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 236 mm |
| Depth | 129.8 mm |
| Height | 23 mm |
| Weight | 566 g |
Packaging data
| Specification | Value |
|---|---|
| Indoor unit included | Yes |
| Outdoor unit included | No |
| Package weight | 917 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Certification | FCC |
