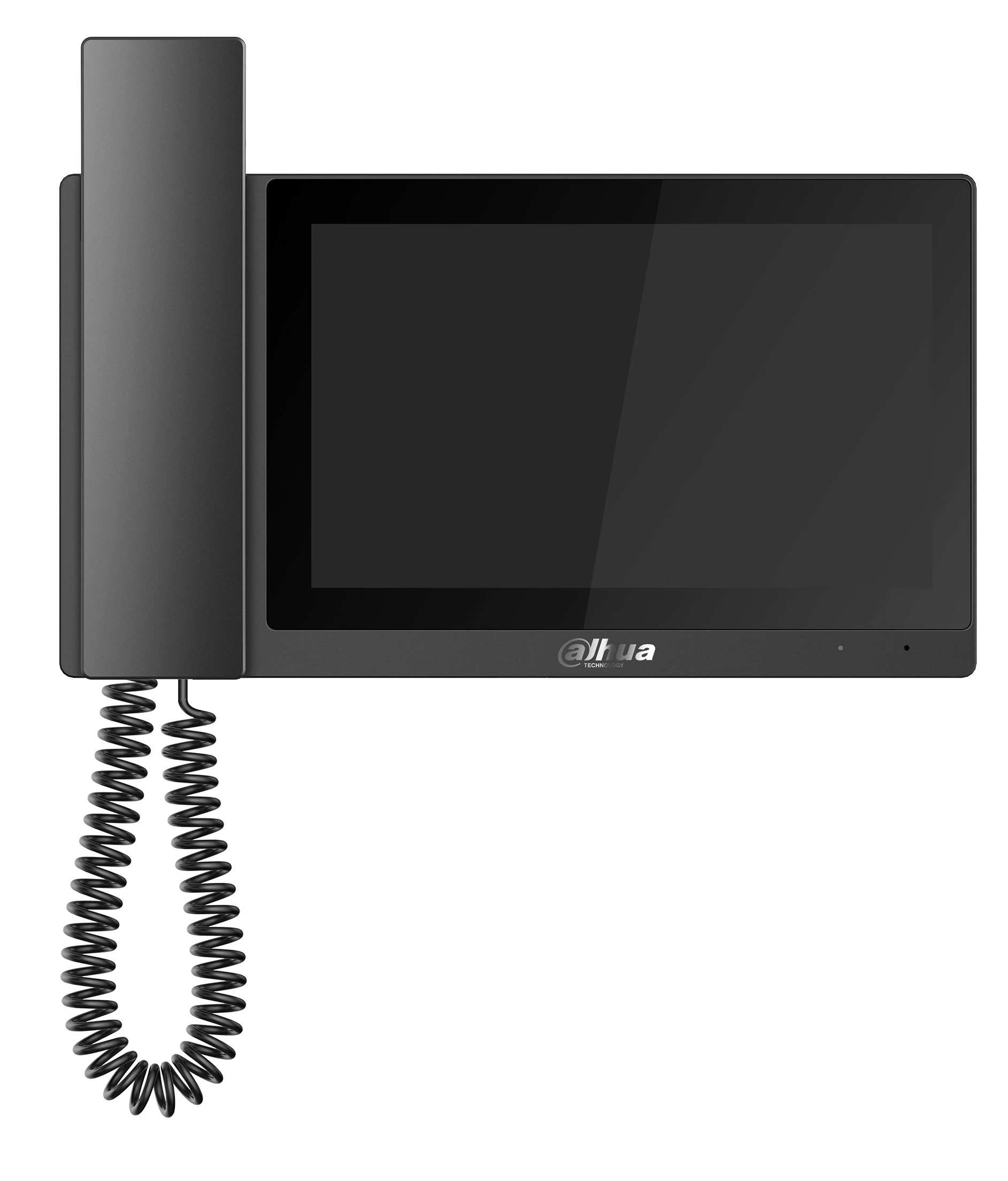

VTH5221E-H video intercom system
17.8 cm (7") Black
Model VTH5221E-H
41 specifications
- Display17.8 cm (7")
- Resolution1024 x 600 pixels
- ConnectivityWired
- OSLinux
- Weight900 g
- ColourYes
Overview
- Display
- 17.8 cm (7")
- Resolution
- 1024 x 600 pixels
- Connectivity
- Wired
- OS
- Linux
- Weight
- 900 g
- Colour
- Yes
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTH5221E-H
- Part number
- VTH5221E-H
- Also known as
- Dahua Technology VTH5221E-H video intercom system 17.8 cm (7") Black
Specifications
41 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Colour | Yes |
| Number of displays supported | 1 |
| Speakerphone | Yes |
| Built-in microphone | Yes |
| Video codecs | H.264 |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Display technology | TFT |
| Display resolution | 1024 x 600 pixels |
| Backlight display | Yes |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Voice codecs | G.711 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Control type | Touch |
| Placement supported | Horizontal/Vertical |
| Proper use | Indoor |
Storage
| Specification | Value |
|---|---|
| Memory card slot | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 32 GB |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3af |
| Supported network protocols | TCP/IP |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Power
| Specification | Value |
|---|---|
| Indoor unit power type | DC |
| AC adapter output voltage | 12 V |
| Power consumption (typical) | 5 W |
| Power consumption (standby) | 3.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 236 mm |
| Depth | 165.5 mm |
| Height | 43.2 mm |
| Weight | 900 g |
Packaging data
| Specification | Value |
|---|---|
| Indoor unit included | Yes |
| Outdoor unit included | No |
