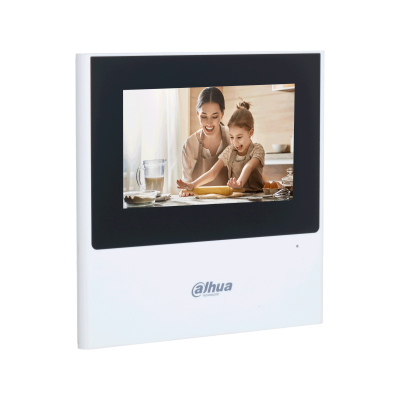

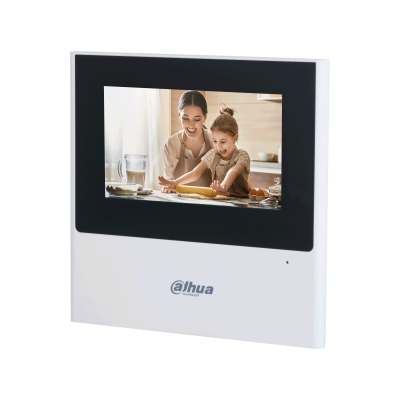

VTH2611L-WP video intercom system
10.9 cm (4.3") Black, White
Model VTH2611L-WPPart no. DHI-VTH2611L-WPEAN 6923172543257
31 specifications
- Display10.9 cm (4.3")
- Resolution1024 x 600 pixels
- ConnectivityWired
- OSLinux
- Weight210 g
- ColourYes
Overview
- Display
- 10.9 cm (4.3")
- Resolution
- 1024 x 600 pixels
- Connectivity
- Wired
- OS
- Linux
- Weight
- 210 g
- Colour
- Yes
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTH2611L-WP
- Part number
- DHI-VTH2611L-WP
- EAN / UPC
- 6923172543257
- Also known as
- Dahua Technology VTH2611L-WP video intercom system 10.9 cm (4.3") Black, White
Specifications
31 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Colour | Yes |
| Number of displays supported | 1 |
| Speakerphone | Yes |
| Built-in microphone | Yes |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 10.9 cm (4.3") |
| Display technology | TFT |
| Display resolution | 1024 x 600 pixels |
| Backlight display | Yes |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Voice codecs | G.711, G.711u |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Placement supported | Horizontal |
| Proper use | Indoor & outdoor |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | UDP; TCP; IPv4; RTSP; SIP; RTP |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Power
| Specification | Value |
|---|---|
| Indoor unit power type | DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 136 mm |
| Depth | 140 mm |
| Height | 25.5 mm |
| Weight | 210 g |
Packaging data
| Specification | Value |
|---|---|
| Indoor unit included | Yes |
| Outdoor unit included | Yes |
