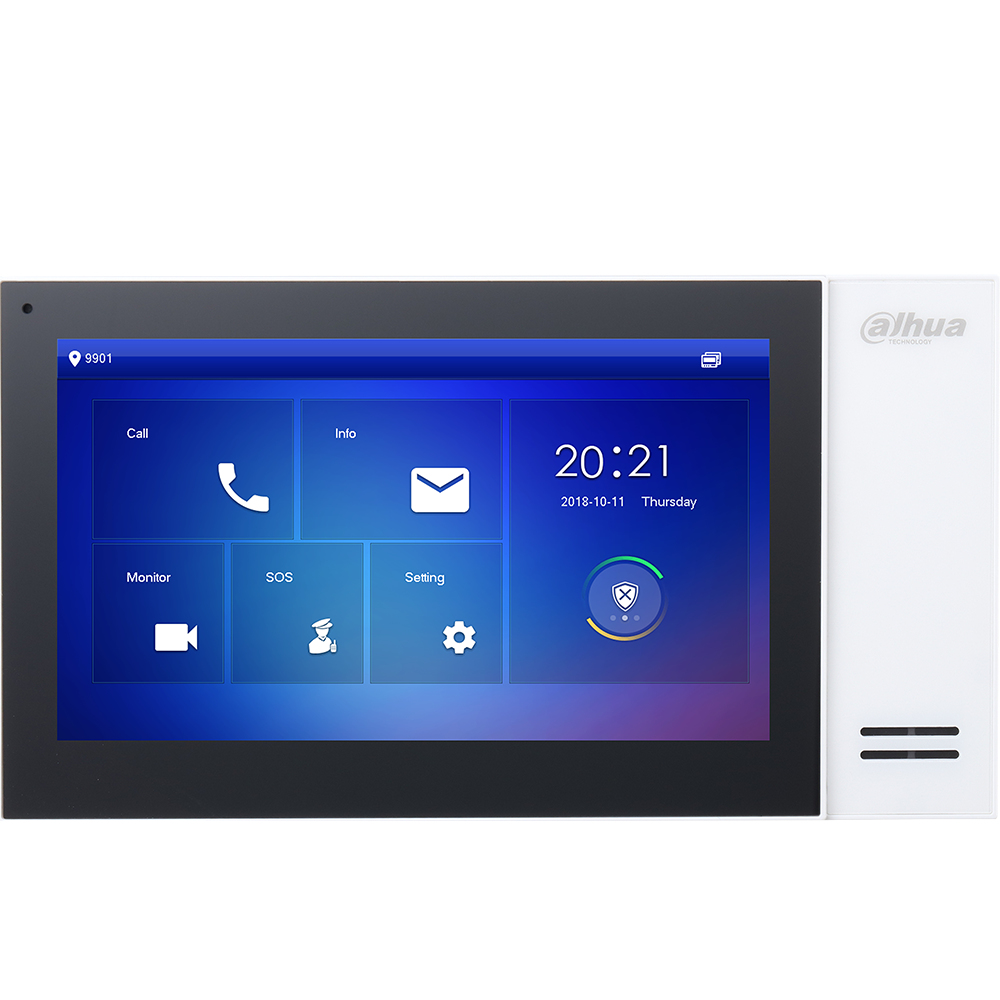

VTH2421FW-P video intercom system
17.8 cm (7") Black, White
Model VTH2421FW-P
32 specifications
- Display17.8 cm (7")
- Resolution1024 x 600 pixels
- ConnectivityWired
- Weight350 g
- ColourYes
- Product colourBlack, White
Overview
- Display
- 17.8 cm (7")
- Resolution
- 1024 x 600 pixels
- Connectivity
- Wired
- Weight
- 350 g
- Colour
- Yes
- Product colour
- Black, White
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTH2421FW-P
- Part number
- VTH2421FW-P
- Also known as
- Dahua Technology VTH2421FW-P video intercom system 17.8 cm (7") Black, White
Specifications
32 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Colour | Yes |
| Speakerphone | Yes |
| Built-in microphone | Yes |
| Video codecs | H.264 |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Display technology | LCD/TFT |
| Display resolution | 1024 x 600 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Speaker power | 1.5 W |
| Voice codecs | G.711a, G.711u, PCM |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Networking standards | IEEE 802.3af |
| Supported network protocols | TCP/IP |
Power
| Specification | Value |
|---|---|
| Indoor unit power type | DC |
| Power consumption (typical) | 6 W |
| Power consumption (standby) | 4 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 221.5 mm |
| Depth | 21.5 mm |
| Height | 119.6 mm |
| Weight | 350 g |
Packaging data
| Specification | Value |
|---|---|
| Indoor unit included | Yes |
| Outdoor unit included | No |
Technical details
| Specification | Value |
|---|---|
| Certification | EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (Second Edition); Am1:2009 + Am2:2013 FCC CFR 47 Part 15 subpart B EN 55032:2015; EN 610003 2:2014; EN 61000 3 3:2013; EN 55024:2010/A1:2015; EN 55035:2017; EN 50130 4:2011/A1:2014 |
