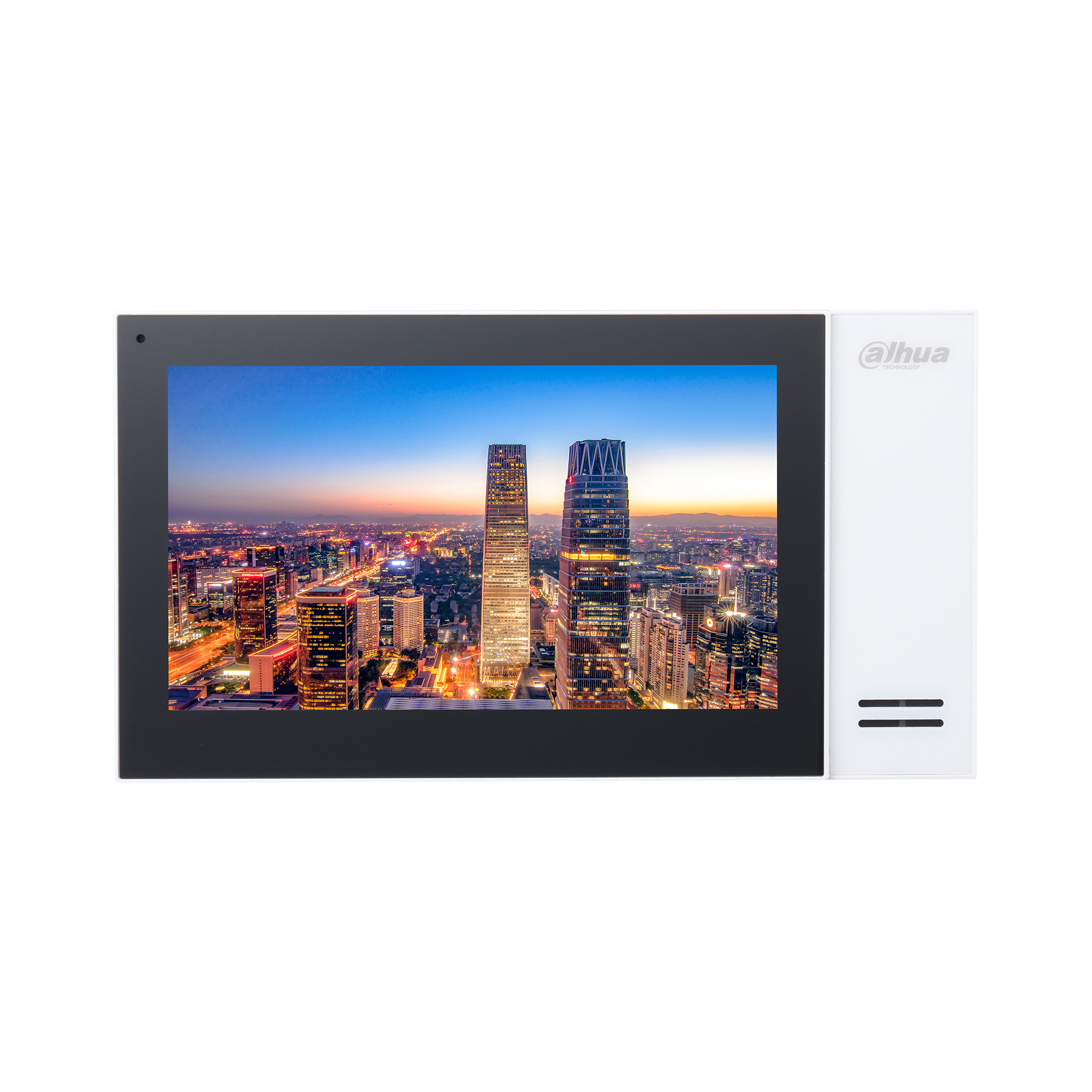

VTH2421FW video intercom system
17.8 cm (7") Black, White
Model VTH2421FWEAN 6939554972478
33 specifications
- Display17.8 cm (7")
- Resolution1024 x 600 pixels
- ConnectivityWired
- OSLinux
- Weight350 g
- ColourYes
Overview
- Display
- 17.8 cm (7")
- Resolution
- 1024 x 600 pixels
- Connectivity
- Wired
- OS
- Linux
- Weight
- 350 g
- Colour
- Yes
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTH2421FW
- Part numbers
- VTH2421FW, DHI-VTH2421FW-P
- EAN / UPC
- 6939554972478
- Also known as
- Dahua Technology VTH2421FW video intercom system 17.8 cm (7") Black, White
Specifications
33 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Colour | Yes |
| Number of displays supported | 1 |
| Speakerphone | Yes |
| Built-in microphone | Yes |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Display technology | LCD |
| Display resolution | 1024 x 600 pixels |
| Backlight display | Yes |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Video formats supported | H.264 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Voice codecs | G.711 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Placement supported | Horizontal |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Supported network protocols | TCP/IP |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Power
| Specification | Value |
|---|---|
| Indoor unit power type | DC |
| Power consumption (typical) | 7 W |
| Power consumption (standby) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 221.5 mm |
| Depth | 21.5 mm |
| Height | 119.6 mm |
| Weight | 350 g |
Packaging data
| Specification | Value |
|---|---|
| Indoor unit included | Yes |
| Outdoor unit included | No |
