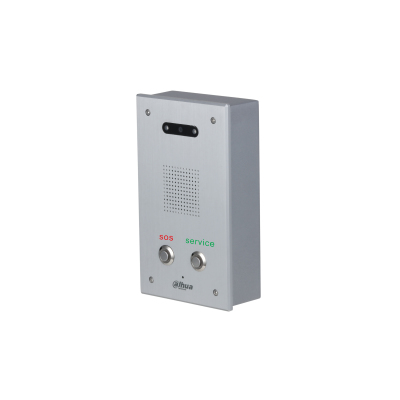

VTA2302A video intercom system
2 MP Grey
Model VTA2302A
37 specifications
- ConnectivityWired
- ColourNo
- Night visionYes
- Megapixel (approx.)2 MP
- Product colourGrey
- Ethernet interface typeFast Ethernet
Overview
- Connectivity
- Wired
- Colour
- No
- Night vision
- Yes
- Megapixel (approx.)
- 2 MP
- Product colour
- Grey
- Ethernet interface type
- Fast Ethernet
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- VTA2302A
- Part number
- VTA2302A
- Also known as
- Dahua Technology VTA2302A video intercom system 2 MP Grey
Specifications
37 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Colour | No |
| Number of displays supported | 1 |
| Speakerphone | Yes |
| Built-in microphone | Yes |
| Number of buttons | 2 buttons |
| Viewing angle | 111° |
| Wall mountable | Yes |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Supported video modes | 720p, 1080p |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Field of view (FOV) angle | 111° |
| Viewing angle, horizontal | 91° |
| Viewing angle, vertical | 47° |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Control type | Buttons |
| Placement supported | Vertical |
| Proper use | Indoor & outdoor |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
Power
| Specification | Value |
|---|---|
| Outdoor unit power type | DC |
| Power consumption (typical) | 6 W |
| Power consumption (standby) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 46.7 mm |
| Height | 180 mm |
Packaging data
| Specification | Value |
|---|---|
| Indoor unit included | No |
| Outdoor unit included | Yes |
| Package weight | 1.2 kg |
Technical details
| Specification | Value |
|---|---|
| Certification | CE, FCC |
