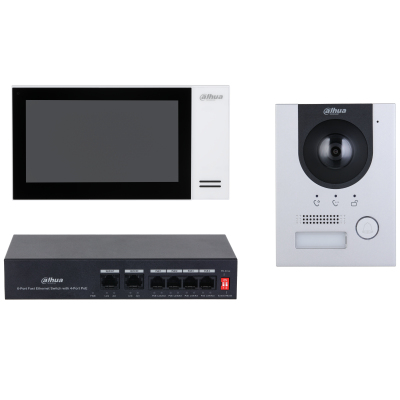

KTP01L-F video intercom system
2 MP 17.8 cm (7") Black, Silver
Model KTP01L-F
39 specifications
- Display17.8 cm (7")
- Resolution1024 x 600 pixels
- ConnectivityWired
- OSEmbedded LINUX
- ColourYes
- Megapixel (approx.)2 MP
Overview
- Display
- 17.8 cm (7")
- Resolution
- 1024 x 600 pixels
- Connectivity
- Wired
- OS
- Embedded LINUX
- Colour
- Yes
- Megapixel (approx.)
- 2 MP
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- KTP01L-F
- Part number
- KTP01L-F
- Also known as
- Dahua Technology KTP01L-F video intercom system 2 MP 17.8 cm (7") Black, Silver
Specifications
39 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Colour | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Display technology | TFT |
| Display resolution | 1024 x 600 pixels |
| Backlight display | Yes |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Video formats supported | H.264, H.265 |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Day/night mode | Yes |
| Maximum frame rate | 25 fps |
| Viewing angle, diagonal | 176.7° |
| Viewing angle, horizontal | 168.6° |
| Viewing angle, vertical | 87.1° |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Noise-canceling | Yes |
| Voice codecs | G.711a, G.711u, PCM |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Control type | Buttons |
| LED indicators | Yes |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Indoor unit
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 6 |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | SIP; TCP; RTP; UPnP; P2P; DNS; UDP; RTSP; IPv4 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Embedded LINUX |
Power
| Specification | Value |
|---|---|
| Indoor unit power type | AC |
| AC adapter input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -10 - 55 °C |
Packaging data
| Specification | Value |
|---|---|
| Indoor unit included | Yes |
| Outdoor unit included | Yes |
Technical details
| Specification | Value |
|---|---|
| Certification | CE; FCC; UL |
