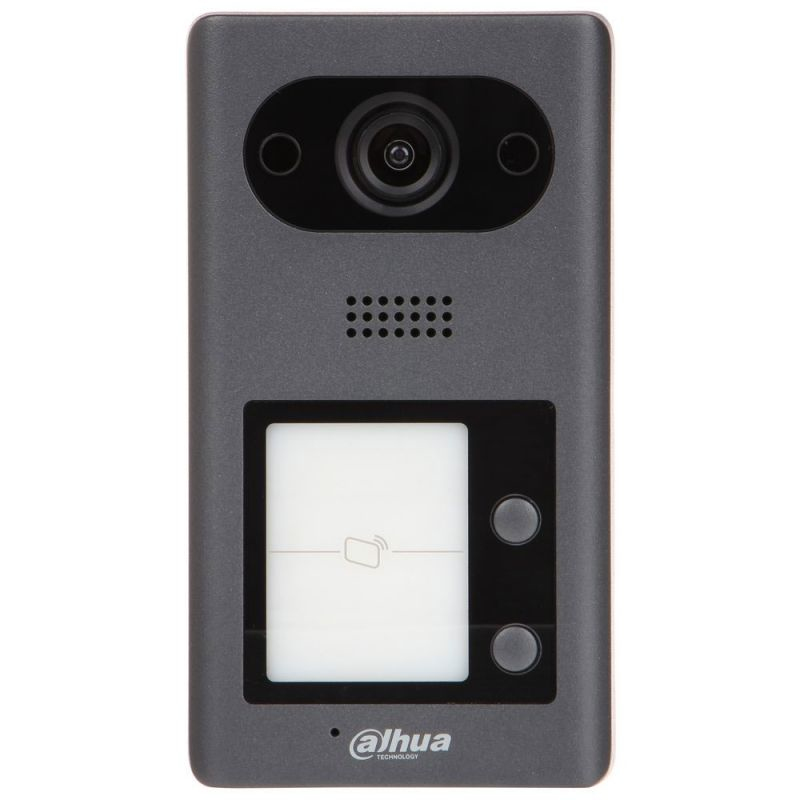

DHI-VTO3211D-P2-S1 video intercom system
2 MP Grey
Model DHI-VTO3211D-P2-S1EAN 6939554973444
39 specifications
- ConnectivityWired
- OSLinux
- Weight800 g
- ColourYes
- Megapixel (approx.)2 MP
- Product colourGrey
Overview
- Connectivity
- Wired
- OS
- Linux
- Weight
- 800 g
- Colour
- Yes
- Megapixel (approx.)
- 2 MP
- Product colour
- Grey
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- DHI-VTO3211D-P2-S1
- Part number
- DHI-VTO3211D-P2-S1
- EAN / UPC
- 6939554973444
- Also known as
- Dahua Technology DHI-VTO3211D-P2-S1 video intercom system 2 MP Grey
Specifications
39 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Colour | Yes |
| Speakerphone | Yes |
| RFID reader | Yes |
| Built-in microphone | Yes |
| Number of buttons | 2 buttons |
| Video codecs | H.264 |
| Wall mountable | Yes |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Field of view (FOV) angle | 151° |
| Viewing angle, horizontal | 134° |
| Viewing angle, vertical | 94.8° |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Voice codecs | G.711 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| IK code | IK08 |
| International Protection (IP) code | IP65 |
| Outdoor unit housing material | Zinc alloy |
| Control type | Buttons |
| Proper use | Outdoor |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | TCP/IP |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Power
| Specification | Value |
|---|---|
| Outdoor unit power type | DC |
| Power consumption (typical) | 6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101 mm |
| Depth | 30 mm |
| Height | 182 mm |
| Weight | 800 g |
Packaging data
| Specification | Value |
|---|---|
| Indoor unit included | No |
| Outdoor unit included | Yes |
