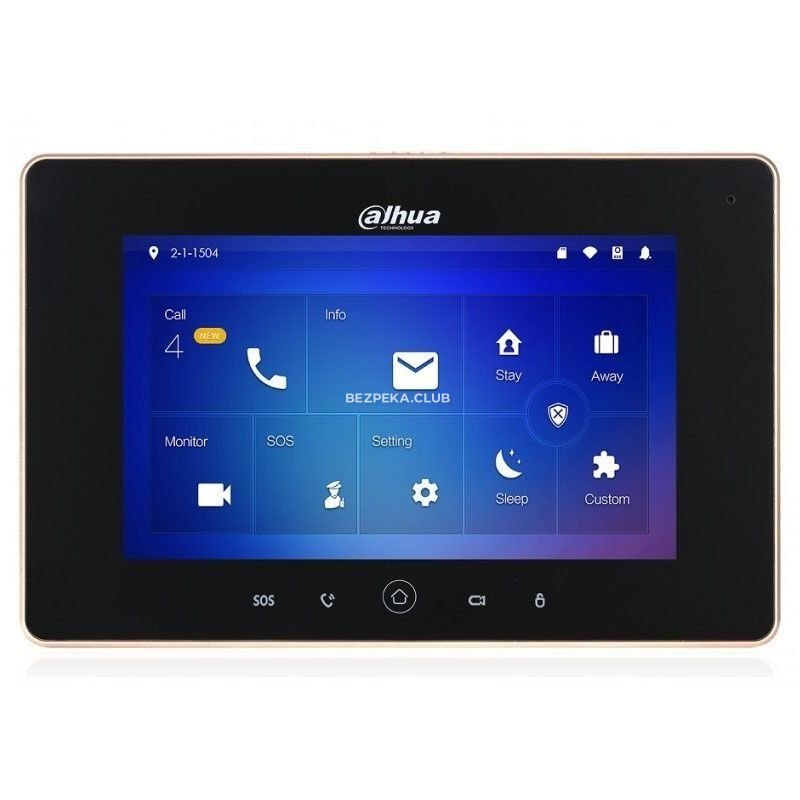

DHI-VTH5221D video intercom system
17.8 cm (7") Black
Model DHI-VTH5221D
39 specifications
- Display17.8 cm (7")
- Resolution1024 x 600 pixels
- ConnectivityWired & Wireless
- OSLinux
- Weight800 g
- ColourYes
Overview
- Display
- 17.8 cm (7")
- Resolution
- 1024 x 600 pixels
- Connectivity
- Wired & Wireless
- OS
- Linux
- Weight
- 800 g
- Colour
- Yes
- Brand
- Dahua Technology
- Category
- Video Intercom System
- Model
- DHI-VTH5221D
- Part number
- DHI-VTH5221D
- Also known as
- Dahua Technology DHI-VTH5221D video intercom system 17.8 cm (7") Black
Specifications
39 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Colour | Yes |
| Number of displays supported | 1 |
| Maximum number of cameras supported | 32 |
| Speakerphone | No |
| Wall mountable | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Display technology | TFT |
| Display resolution | 1024 x 600 pixels |
| Backlight display | Yes |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Audio
| Specification | Value |
|---|---|
| Voice codecs | G.711 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Control type | Touch |
Storage
| Specification | Value |
|---|---|
| Memory card slot | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 32 GB |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g |
| Cabling technology | 10/100Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g |
| Supported network protocols | TCP/IP |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Power
| Specification | Value |
|---|---|
| Indoor unit power type | DC |
| Power consumption (typical) | 7 W |
| Power consumption (standby) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Main monitor station operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 21 mm |
| Height | 140 mm |
| Weight | 800 g |
Packaging data
| Specification | Value |
|---|---|
| Indoor unit included | Yes |
| Outdoor unit included | No |
Technical details
| Specification | Value |
|---|---|
| Certification | FCC CFR 47 Part 15 subpart BANSI C63.4 - 2009EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009EN 61000-3-3:2008, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004 UL 60 |
